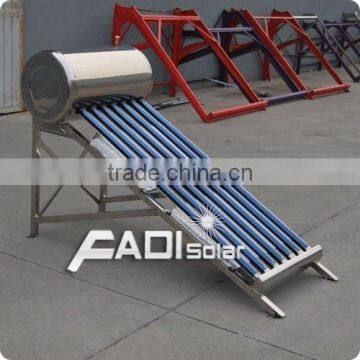

27 Degree SUS304 Stainless Steel Solar Energy System (55Liter)

Specifications

Solar energy system details
Model: FD-SS47-07A

How solar energy system works
1. Solar energy system of all glass evacuated tube collector integrated with storage tank, are ideal for use in houses and other applications where cheap, reliable hot water supply is required. They are simple, economic and practical .
2. As the specific gravities of hot water and cold water are different, cold water goes downward and hot water goes upward .
3. When cold water in evacuated tubes is heated, it becaomes lighter and goes to the water tank, while cold water in the tank goes down to the evacuated tubes.
4. Through this circulation, the cold water in the water tank will be gradually heated.

Solar energy system features
1. Cheap and reliable solution, Simple structure, Easy installation
2. High efficiency
3. Withstands water pressure no more than 0.1MPa
4. Operated without any power supplying
5. Electric heater can be used as back up in rainy days
6. Hot water can be used directly, or can be used as a pre-heated

Solar energy system optional accessories
1. Assistant tank: 3/5/8/10/12/15/20L
2. Controller
3. Electrical heater: 1.5/2/2.5kw

Compact non-pressure solar water heater specification
