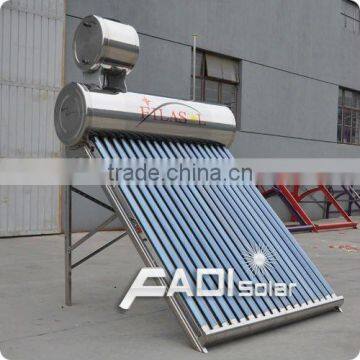

Stainless Steel Solar Hot Water Heater (150Liter)

FOB Price

US$ 188.93 - 188.93 / Set

1 Set(Min. Order)

Port Shanghai Ningbo Sea-port
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Evacuated Tube	Pressure	Unpressurized
Circulation Type	Direct / Open Loop (Active)	Heating System	Thermosyphon (Passive)
Connection Type	Direct-Plug	Installation	Freestanding
Housing Material	Other, stainless steel	Certification	CE, Other, CE, ISO9001
Capacity	200	Place of Origin	Zhejiang, China
Brand Name	solar hot water heater,OEM,FADI	Model Number	FD-SSA58-18

Product Description

Specifications

Solar hot water heater
.Competitive price and good quality
.Certification:CE,ISO9001
.5/15 years warranty
.OEM

Solar hot water heater details:
Model: FD-SSA58-18

How solar hot water heater works
1.Solar hot water heater of all glass evacuated tube collector integrated with storage tank, are ideal for use in houses and other applications where cheap, reliable hot water supply is required. They are simple, economic and practical.
2. As the specific gravities of hot water and cold water are different, cold water goes downward and hot water goes upward.
3. When cold water in evacuated tubes is heated, it becaomes lighter and goes to the solar hot water heater tank, while cold water in the tank goes down to the evacuated tubes.
4. Through this circulation, the cold water in the water tank will be gradually heated.

Solar hot water heater features
1. Cheap and reliable solution, Simple structure, Easy installation
2. High efficiency
3. Withstands water pressure no more than 0.1MPa
4. Operated without any power supplying
5. Electric heater can be used as back up in rainy days
6. Hot water can be used directly, or can be used as a pre-heated

Calentador agua optional accessories
1. Assistant tank: 30L
2. Controller
3. Electrical heater: 1.5/2/2.5kw

Solar hot water heater specification

Descripition	calentador agua
Material of out tank	Food grade 0.31-0.4mm SUS304/SUS202 stainless steel
Material of inner tank	0.31-0.4mm thickness SUS304 stainless steel
Tank insulating layer	55mm,45kg/m³ high-density polyurethane foamed
Inlet and outlet hole	Male G 1/2, 3/4
Max pressure	0.05 Mpa
Solar collector tube	3.3 Borosilicate glass with N/Al coating
Thickness of glass tube	1.6mm
Vacuum tube tightness	P≤0.005 Pa
Absorption	as=0.93-0.96(AM1.5)
Emission ratio	εh=0.04-0.06(80C±5C)
Idle sunning property parameters	Y=220~260m2.C/KW
Average heat loss coefficient	ULT=0.6~0.7W/(m2.C)
Bracket:	1.2mm thickness SUS201/SUS202/SUS304 stainless steel
Structure of tank:	4 holes for air vent,overflow,water inlet and outlet,electric heater
Welding:	Argon arc welding
Fastening pieces:	Made of stainless steel screw
Absorber area	1.687 m²
Tube quantity	18tube 58x1,800mm
Tank capacity	150L
Assistant tank	30L
