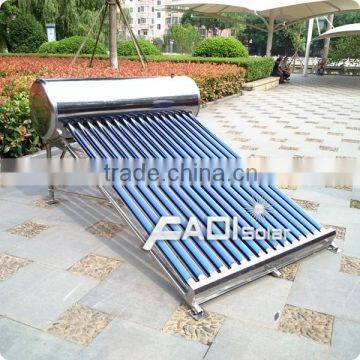

Fadi Stainless Steel Water Heater For Mexico Market (145Liter)

FOB Price

US$ 98.88 - 232 / Set

1 Set(Min. Order)

Port SHANGHAI NINGBO
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Evacuated Tube	Pressure	Unpressurized
Circulation Type	Direct / Open Loop (Active)	Heating System	Thermosyphon (Passive)
Connection Type	Direct-Plug	Installation	Wall Mounted
Housing Material	Stainless Steel	Certification	CE, Other, CE, ISO 9001:2000
Capacity	145	Place of Origin	Zhejiang, China
Brand Name	Stainless steel water heater,FADI or OEM	Model Number	FD-SS58-16

Product Description

Stainlesss Steel Water Heater

Model:FD-SS58-16

How water heater works
1.Stainless steel water heater of all glass evacuated tube collector integrated with storage tank, are ideal for use in houses and other applications where cheap, reliable hot water supply is required. They are simple, economic and practical.
2. As the specific gravities of hot water and cold water are different, cold water goes downward and hot water goes upward.
3. When cold water in evacuated tubes is heated, it becomes lighter and goes to the water tank, while cold water in the tank goes down to the evacuated tubes
4. Through this circulation, the cold water in the water tank will be gradually heated.

Water heater features
1. Cheap and reliable solution, Simple structure, Easy installation
2. High efficiency
3. Withstands water pressure no more than 0.1MPa
4. Operated without any power supplying
5. Electric heater can be used as back up in rainy days
6. Hot water can be used directly, or can be used as a pre-heated

Water heater optional accessories
1. Controller
2. Electrical heater: 1.5/2/2.5kw

3.Magnesium anode

Water heater material specification:

Description	stainless steel water heater
Material of out tank	Food grade 0.31-0.4mm SUS304/SUS202 stainless steel
Material of inner tank	0.5mm thickness SUS304 stainless steel
Tank insulating layer	55mm 45kg/m³ high-density polyurethane foamed
Inlet and outlet hole	Male G 1/2, 3/4
Max pressure	0.05 Mpa
Solar collector tube	3.3 Borosilicate glass with N/Al coating
Thickness of glass tube	1.6mm
Vacuum tube tightness	P≤0.005 Pa
Absorption	as=0.93-0.96(AM1.5)
Emission ratio	εh=0.04-0.06(80C±5C)
Idle sunning property parameters	Y=220~260m2.C/KW
Average heat loss coefficient	ULT=0.6~0.7W/(m2.C)
Bracket:	1.2mm thickness SUS201/SUS202/SUS304 stainless steel
Structure of tank:	5 holes for air vent,overflow,water inlet and outlet,electric heater
Welding:	Argon arc welding
Fastening pieces:	Made of stainless steel screw
Absorber area	1.499m²
Tube quantity	16 tube 58x1800mm
Tank capacity	145L
Afford for house	4-5persons
