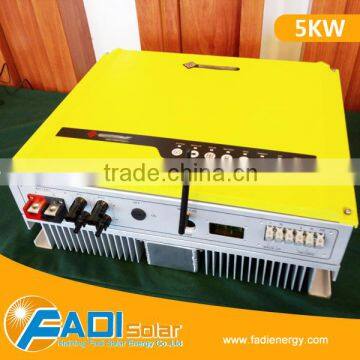

Highy Quality 5KW Solar On Grid and Off Grid Hybrid Inverter (FD- 5048D-ES)

Nodel Name

FD-5048D-ES

FD-3648D-ES

Solar

Max. DC power(W)

5400

4200

Max. DC voltage (V)

580

MPPT voltage range (V)

125~550

Starting voltage (V)

125

Max. DC current (A)

15/15

No. of DC connectors

2

No. of MPPTs

2(can parallel)

DC connector

SUNCLIX / MC4/H4 (Optional)

Bttery

Battery Type

Lead-acid or Li-Ion

Lead-acid or Li-Ion

Norminal Voltage(V)

40-60

40-60

MAX Discharge power (W)

4600

2300

MAX Charge power (W)

2300, programmable

2300, programmable

Battery capacity (Ah)

>=100 (depending requirement)

>=100 (depending requirement)

Charging curve

3-stage adaptive with maintenance

3-stage adaptive with maintenance

Charge voltage (V)

57 (Optional)

57 (Optional)

Battery temperature compensation

included(Li-Ion)

included(Li-Ion)

Battery voltage sense

integrated

integrated

Current shunt

integrated

integrated

AC Output Data

Norminal AC power(W)

4600

3600

Max. AC power(W)

4600

3600

Peak power(Back-up)(W)

1.5x Pnom, 10sec

1.5x Pnom, 10sec

Max. AC current(A)

20

16

Norminal AC output

50/60Hz; 230Vac

AC output range

45~55Hz/55~65Hz; 180~270Vac

AC output (Back-up)

230Vac ±2%, 50Hz (60Hz Optional)±0.2%, THDv<3%(linear load)

THDi

<1.5%

Power factor

0.9 leading~0.9 lagging

Grid connection

Single phase

Efficiency

Max. efficiency

97.60%

97.60%

Euro efficiency

>97.0%

>97.0%

MPPT adaptation efficiency

>99.9%

Residual current monitoring unit

Integrated

Anti-islanding protection

Integrated

DC switch(PV)

Integrated

AC over current protection

Integrated

Insulation monitoring

Integrated

Certifications & Standards

Grid regulation

VDE4105, VDE 0126-1-1+A1, G83/2, G59/2, AS4777.2/.3, IEC62109-2

Safety

IEC62109-1&-2, AS3100, IEC62040-1

EMC

EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4, EN61000-3-11, EN61000-3-12

General Data

Dimensions (WxHxD)

516*440*184mm

Weight (kg)

30

28

Mounting

Wall bracket

Ambient temperature range

-25~60°C(>45°C derating)

Relative humidity

0~95%

Max. operating altitude

 2000m

Protection degree

IP65

Topology

Transformerless

Standby losses(W)

<8

Cooling

Nature convection

Noise emision(dB)

<25

Display

LED light & APP

Communication

USB2.0; WiFi

Standard warranty(years)

5/10/15/20/25(optional)
