Home > Products > Bag Making Machine > Roll Vest Bag Making Machine

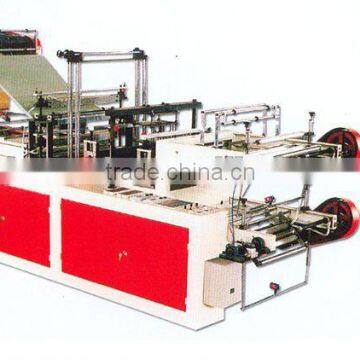

Roll Vest Bag Making Machine
USD $5,000 - $10,000
/ Set
1 Set(Min.Order)
- Ningbo
- T/T
You May Like
Product Details
| Machine Type | Other, Sealing and Cutting | Bag Type | T-shirt Bag | |
| Material | Plastic | Computerized | Yes | |
| Place of Origin | Zhejiang, China | Brand Name | DUKE | |
| Model Number | GBD |
Product Description
Specifications
1.Roll Vest Bag Making Machine2.Optional Machine Color
3.Have Stock Machine Every Month
4.High Quality
Features:
This machine is specially-designed point-cut rolling dual-purpose one for T-shirt & Flat-opening bag, is controlled by a computer. The step (servo) setting length system reduces the sealing-cutting dimensions errors, and the installation of photoelectric eyes track help make the position of figure of printing bags accurate. The computer numerical control can be selected to adjust the length of bag. The machine will automatically stop and sound a warning if there is something wrong with the printing the high and low density polyethylene film bags produced by the machine are applied to shopping in the super markets, shops and markets.
Main Technical Parameters:
| Model | GBDR -500 | GBDR -600 | GBDR -700 | GBDR -800 |
| Max bag-making width(mm) | 400 | 500 | 600 | 700 |
| Max bag-making length(mm) | 1200 | 1200 | 1200 | 1200 |
| Thickness of bag-making(mm) | 0.008-0.10 | 0.008-0.10 | 0.008-0.10 | 0.008-0.10 |
| Speed of bag-making(pc/min) | 40-120 | 40-120 | 40-120 | 40-120 |
| Power of motor | 1.1kw | 1.1kw | 1.5kw | 1.5 |
| Electric Heating power | 1.2kw | 1.6kw | 2kw | 2.2 |
| Mechanical Dimension | 3300*1100*1500 | 3300*1200*1500 | 3300*1300*1500 | 3300*1400*1500 |
| Weight of machine | 800kg | 850kg | 900kg | 1000 |
| Packing dimension | 3400*1200*1700 | 3400*1300*1700 | 3400*1400*1700 | 3400*1500*1700 |
| Packing weight | 1000kg | 1060kg | 1180kg | 1220 |
