GBDR-700 Two Layer Automatic Plastic Vest Bag Making Machine
US$ 6,200 - 10,000
/ Set
1 Set(Min. Order)
- Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
GBDE Type Two Layer Four Lines PE Plastic T-shirt Bag Making Machine
-
GBDE-700 Plastic Bag Cutting Machine
-
GBDE-600 Automatic Shopping Bag Making Machine
-
DFHQ-350X2 T-shirt Bag Forming Machine
-
RQL-500-700 Computer Control Side Sealing Bag Making Machine
-
DK-600 Multi-function Nonwoven Bag Making Machine
Product Details
| Condition | New | Machine Type | Cutting Machine | |
| Bag Type | Garbage Bag | Material | Plastic | |
| Computerized | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | Duke | Model Number | GBDR-700 | |
| Voltage | 220V | Power(W) | 1.5KW | |
| Dimension(L*W*H) | 3400*1400*1700 | Weight | 900kg | |
| Certification | CE,ISO | Warranty | One Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Plastic Vest Bag Making Machine2.Coreless or with core roll Vest bag maker
3.Servo motor, two layers
4.Have stock,low pric
Vest Bag Making Machine Features:
This machine is specially-designed point-cut rolling dual-purpose one for T-shirt & Flat-opening bag, is controlled by a computer. The step (servo) setting length system reduces the sealing-cutting dimensions errors, and the installation of photoelectric eyes track help make the position of figure of printing bags accurate. The computer numerical control can be selected to adjust the length of bag. The machine will automatically stop and sound a warning if there is something wrong with the printing the high and low density polyethylene film bags produced by the machine are applied to shopping in the super markets, shops and markets.
Vest Bag Making Machine Technical Parameters:
| Model | GBDR -500 | GBDR -600 | GBDR -700 | GBDR -800 |
| Max bag-making width(mm) | 400 | 500 | 600 | 700 |
| Max bag-making length(mm) | 1200 | 1200 | 1200 | 1200 |
| Thickness of bag-making(mm) | 0.008-0.10 | 0.008-0.10 | 0.008-0.10 | 0.008-0.10 |
| Speed of bag-making(pc/min) | 40-120 | 40-120 | 40-120 | 40-120 |
| Power of motor | 1.1kw | 1.1kw | 1.5kw | 1.5 |
| Electric Heating power | 1.2kw | 1.6kw | 2kw | 2.2 |
| Mechanical Dimension | 3300*1100*1500 | 3300*1200*1500 | 3300*1300*1500 | 3300*1400*1500 |
| Weight of machine | 800kg | 850kg | 900kg | 1000 |
| Packing dimension | 3400*1200*1700 | 3400*1300*1700 | 3400*1400*1700 | 3400*1500*1700 |
| Packing weight | 1000kg | 1060kg | 1180kg | 1220 |
Optional Device:
Servo Motor (Yaskawa Brand)
PLC (Taiwan Brand)
Skype: ritayuan99
Plastic Roll Vest Bag Samples:

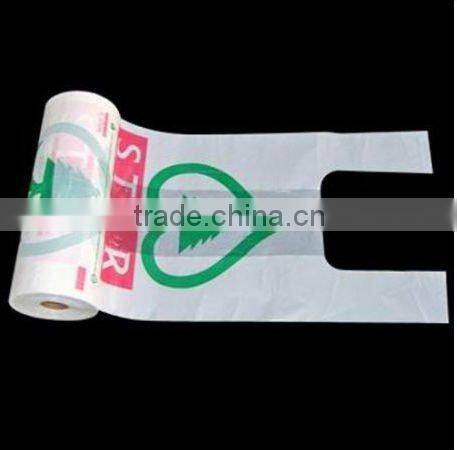

Plastic Vest t-shirt garbage bags

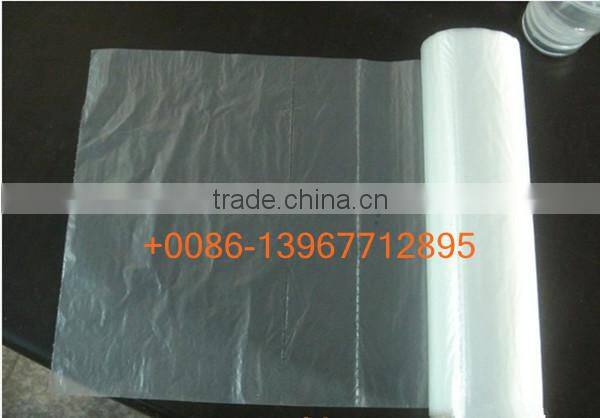

Plastic Vest Flat bags
Plastic Vest Bag Making Machine Pictures:

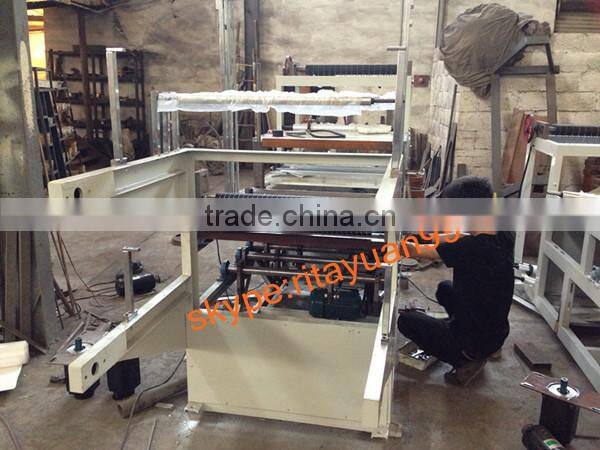

Semi-finished Machine
The Vest Bag Making Machine T-shirt Bag Rolling Cutting Knife:
The Flat Bag Rolling Cutting Knife :

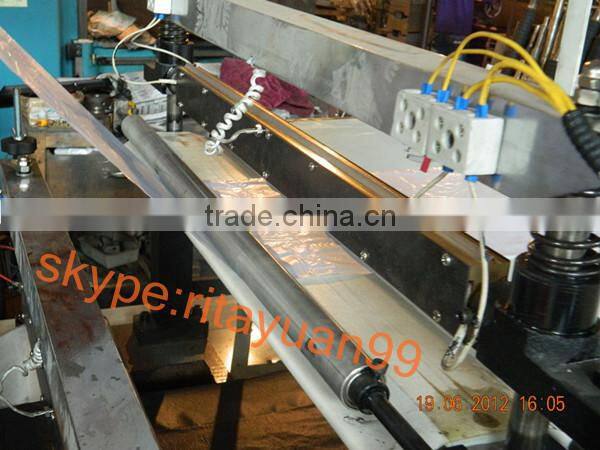

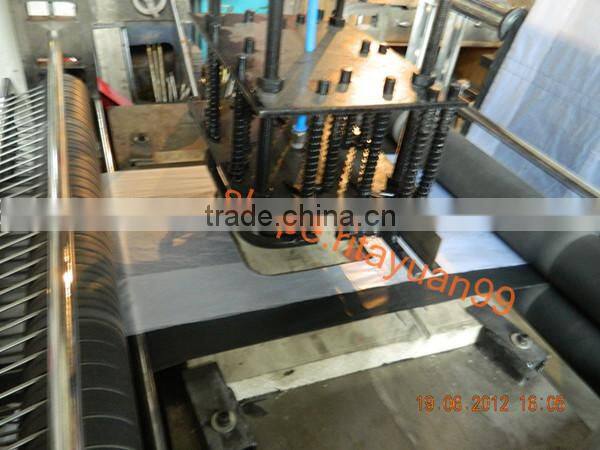

The Roll Vest Bag Machine Sealing Knife
The Color CodeTracking For Printed Bags:
Vest Bag Double Layers Winder Unit:
The Bag Making Machine Electric Cabinet :
The Plastic Vest Bag Making Machine Complete Photos:
Bag Making Machine Workshop:
Company Photos:
