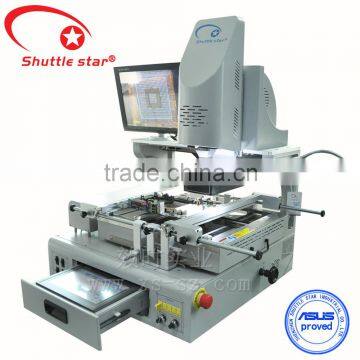

Best Price of Laser Pcb Motherboard Repair Equipment With High Efficiency
- Shenzhen/HongKong
- T/T L/C D/P D/A PayPal
You May Like
-
Best Price of Ipad Motherboard Soldering Desoldering Machine With High Efficiency
-
Shuttle Star Smart Phone Motherboard Soldering Desoldering Machine With Reballing Tools
-
Shuttle Star Bga Rework Station for Ps4 Motherboard With Reballing Tools
-
Shuttle Star Bga Rework Station for Ps3 Motherboard With Reballing Tools
-
Professional Iphone Motherboard IC Replace Machine With Good Quality
-
BGA Rework System(RW-SV520)

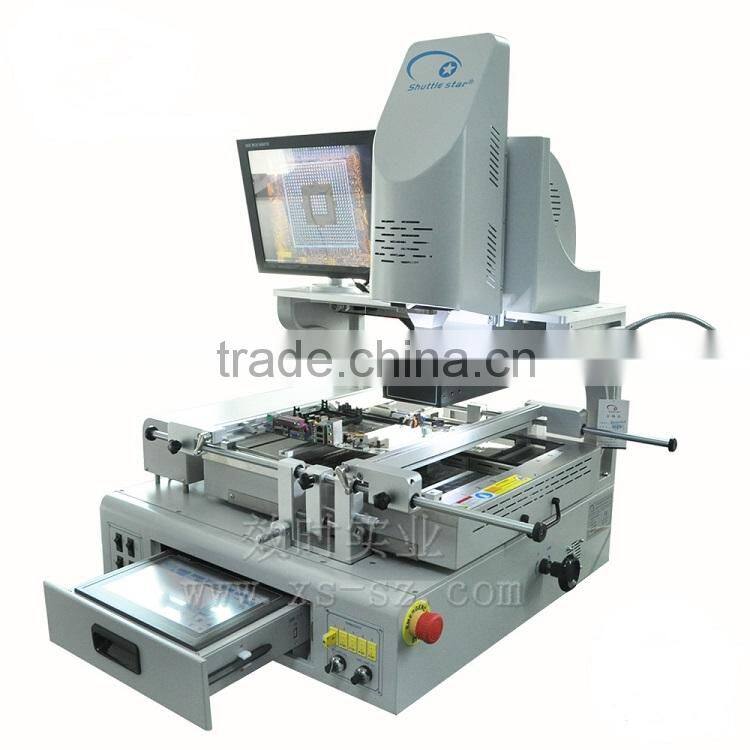

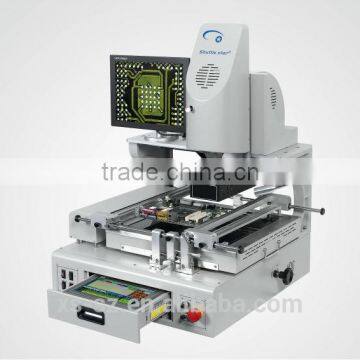

Product Details
| Place of Origin | Guangdong, China | Brand Name | Shuttle star | |
| Model Number | RW-SV560A | Voltage | AC 220/110V | |
| Current | 30A/60A | Rated Capacity | 5.6KW | |
| Rated Duty Cycle | 60% | Dimensions | L746*W710*H820 mm | |
| Weight | 150KG | Usage | Rewoirk of BGA/QFN | |
| Certification | CE | After-sales Service Provided | Overseas third-party support available |
Product Description
Product details
| PCB Working Area | W20*D20~W540*D450 mm |
| PCB Thickness | 0.5~4 mm |
| BGA size | 1*1~80*80 mm |
| Working Table | Front/back +/-5mm,Left/right +/-5mm |
| Temperature Control | K-type Thermcouple,Close Cycle Controlled |
| PCB Locating Way | Jig |
| Placement Accuracy | +/-0.05mm |
| Min Pitch of BGA ball | 0.15mm |
| Max BGA Weight | 80g |
| Power Supply | Single Phase 220/110V,50/60Hz |
| product keywords | Laser pcb motherboard repair equipment |

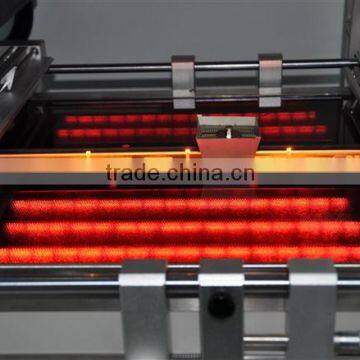

1. Preheating PCB to remove moisture to prevent foaming , prevent damage of heat ;
2. Create temperature profiles for de-soldering, soldering; please contact us to get correct profile;
3. Desolder, Remove the BGA/IC from the board ,i.e CPU/GPU ;
4. Residual solder removal ,Remove residual solder from board and component pads;

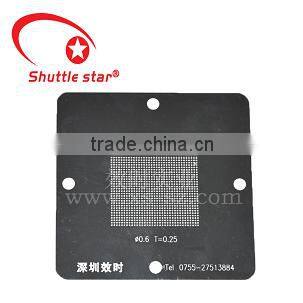

5. BGA reballing, Attach new soldering balls if the BGA is to be re-used;

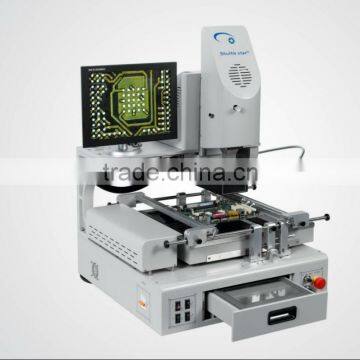

6. Alignment, Using RW-SV560A CCD camera to assemble a new BGA or re-used BGA to board ,
The camera and 1080P LCD can help you to monitor it .
7. Solder, Need a proper temperature profile to weld BGA;
What's BGA Rework Station,Generally used in where ?
A reliable rework solutions should incorporate high accuracy and perfect heat management.
RW-SV560A can provide perfect heat management and process to protect your PCB from broken.
Besides, it have high accuracy CCD camera alignment system and 1080P HD display LCD.
Shuttle Star offers free lifelong maintenance in our office and training for maintenance
Shuttle Star 17 years expert in BGA Total Solution and customerized Automation Equipment. We own successful cooperation experience with many well-known domestic and global enterprise, and we have garnered a high reputation from clients and consumers; We can offer free BGA solution for our customer,good after service and lifelong maintenance in our office and training for maintenance through telephone, email and online webcam.
PACKAGE:
Standard export carton packing.
SHIPPING:
