RW-SV520 Hot Air 3 Heaters SV520 Manual Operation Bga Chip Rework Station With LCD Display
- Shenzhen/HK
- T/T Credit Card
You May Like
-
BGA Graphics Chip Repair Laptop BGA Reflow Business
-
Manual BGA Rework System With Vision (SV520)
-
ISO, CE Certificate Motherboard Rework Station
-
Auto BGA Rework Station With Surveillance Camera SV550 for Iphone Bga Replacement
-
Auto Optical Placement BGA Rework Machine (SV550A)
-
Auto Rework Station With Surveillance Camera SV550A
Product Details
| Condition | New | Place of Origin | Guangdong, China | |
| Brand Name | Shuttle Star | Model Number | SV520 | |
| Dimensions | L650*W800*H950 | Weight | 110kg | |
| Usage | BGA Rework | Certification | ISO 9001:2008 | |
| After-sales Service Provided | Overseas third-party support available |
Product Description

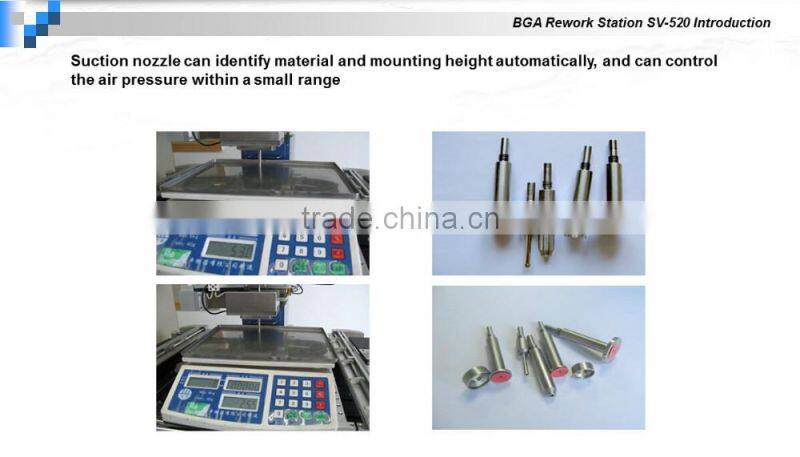

RW-SV520 Manual Operation Optical BGA Rework station for laptop motherboard
RW- SV520
| PCB Size | W20*D20 ~ W400mm x D450mm |
| Workable area | W400*D450mm |
| PCB Thickness | 0.5~ 3mm |
| Applicable BGA | 1*1~70*70mm |
| Working table adjustment | ±10mm Forward/backward, ±10mm Left/right |
| PCB locating way | Outer or Jig |
| Temperature Control | K-Type Thermocouple,Close Cycle Controlled |
| placement precision | ±0.02mm |
| Min pitch of bga ball | 0.15mm |
| Gross power | 4000W |
| Bottom IR Preheat | 2600W |
| Top heater | 600W |
| Bottom heater | 800W |
| MAX BGA weight | 300g |
| Power supply | Single Phase, 220VAC, 50/60 Hz |
| Machine dimension | L650*W800*H950 |
| Weight | Approx 110kg |
RW-SV520 Hot air 3 heaters SV520 manual operation bga chip rework station with LCD display
-----------------------------------------------------------------------

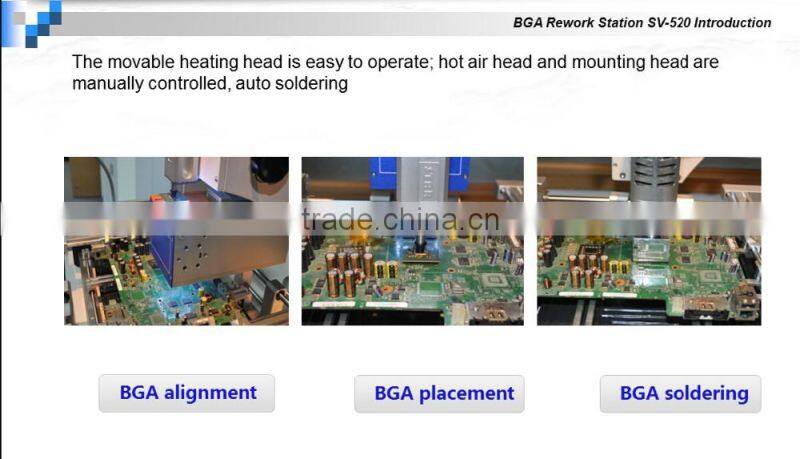

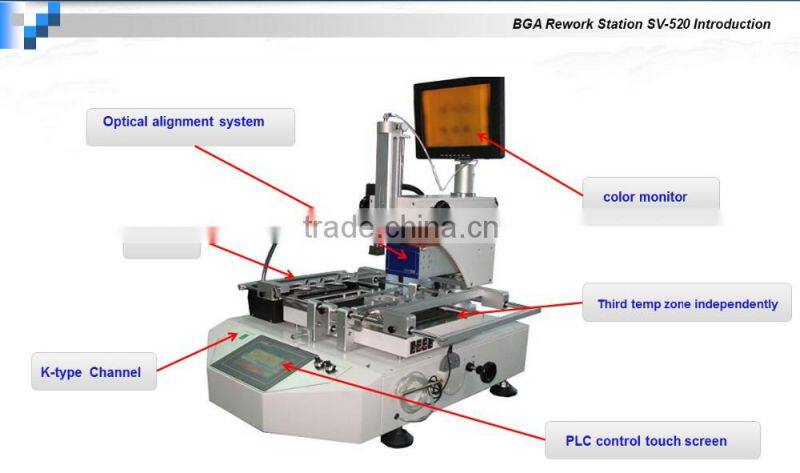

1. Independent 3 Temperature Zone:
1) Top hot air heater
2) Bottom hot air heater
3) Bottom IR preheat - Prevent PCB board deforming

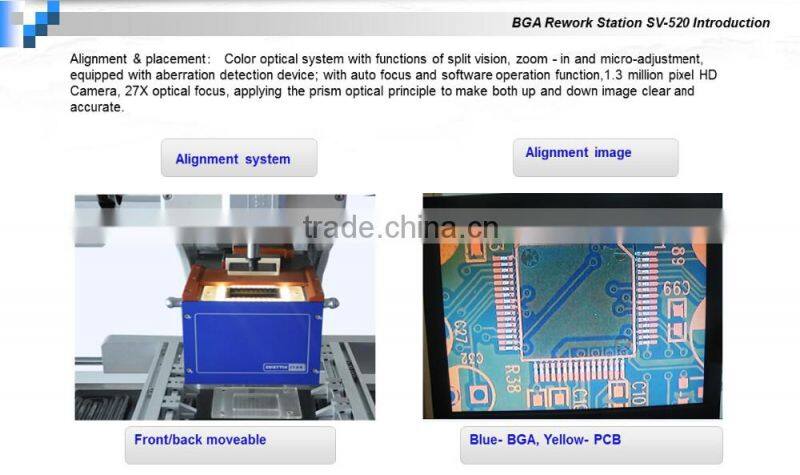

2. Color LCD Display Optical Alignment:
1) Split vision
2) Zoom in/out and micro-adjust
3) Equipped with aberration
4) Detection device
5) With auto focus and software operation function

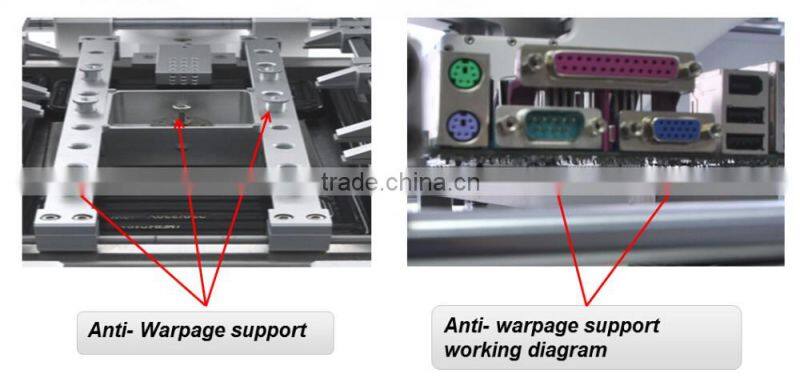

3. Anti Warpage&Deformation Support

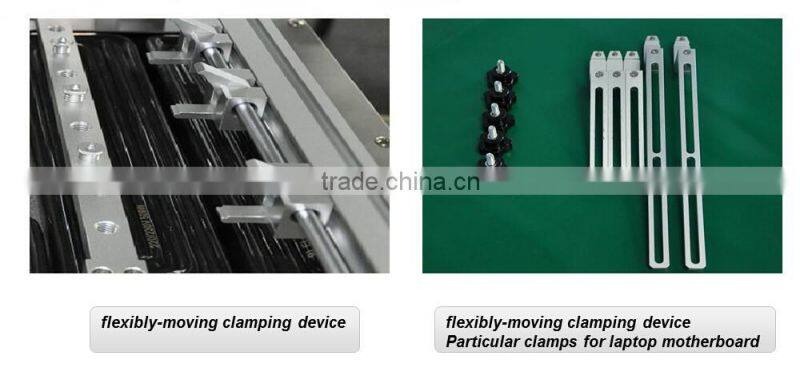

Specially designed with flexibly-moving clamping device to clamp all kinds of PCB,
also equipped with particular clamps for laptop motherboard

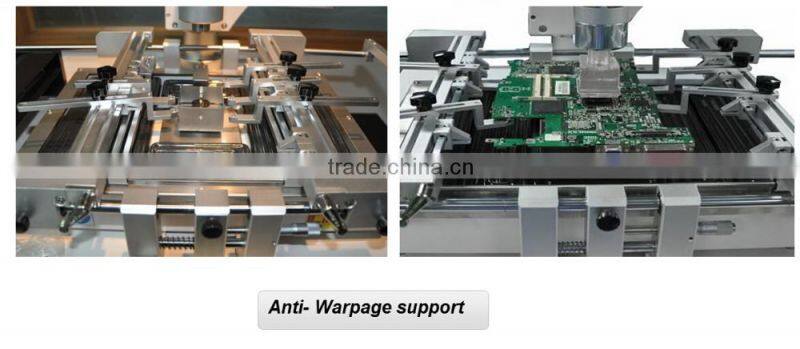

Special anti- warpage design ,the support pillars can be adjusted up & down to
support the board to prevent the PCBA from sinking while heating
4. PLC Control:

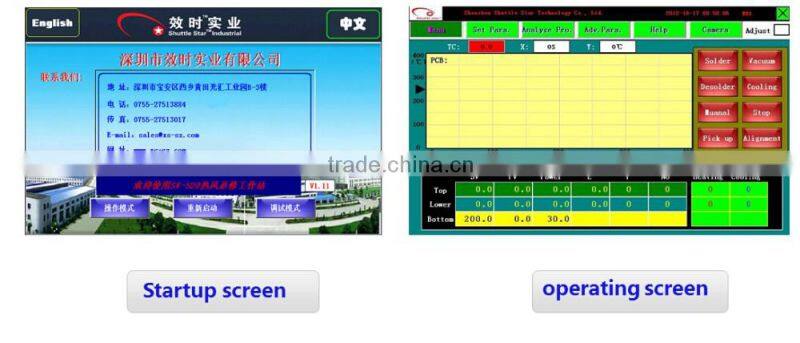

SV-520 use PLC control, real-time temperature curve display,
able to display temperature curves and practical curves as the same time:
can analyze the practically-tested profile, and compare them with the history saved profiles;

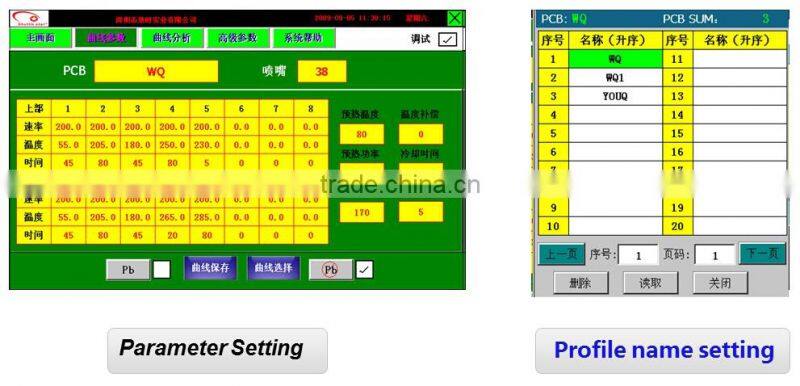

5. Operation Menu
1.Able to arrive at three independent temperature zones, temperature and time can
be displayed digitally on the touch screen
2.8 segments of temperature up (down) and 8 segments constant temperature control,
more than 50000 groups of profile can be stored.

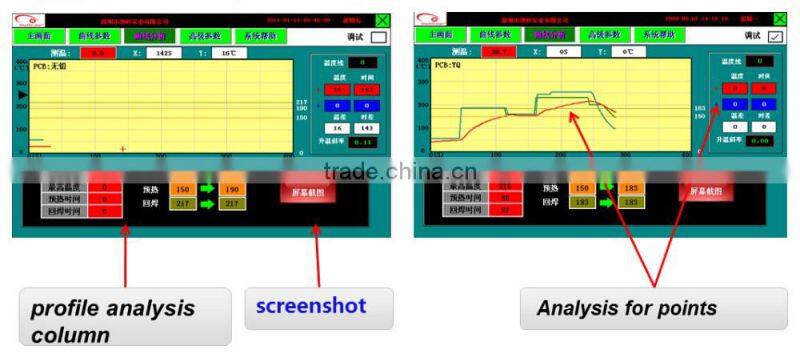

6. Real-time Temperature Analysis and Store
1.It is able to display 1 practically-tested temperature curve at the same time,
2.auto-calculate the preheat time, reflow time and max temp, so to control temp. of every point of BGA overall; can create profile for every kind of BGA accordingly.

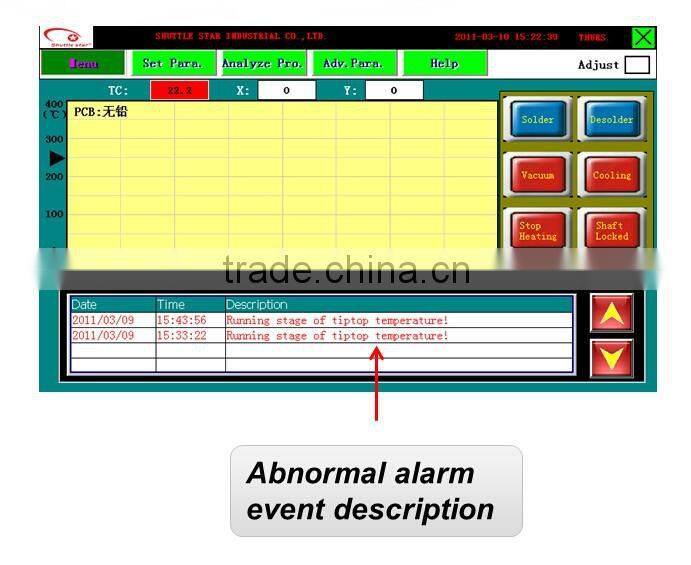

7. Alarm Interface
Under this menu, it points out troubles and error while machine is working. By this caution,
we may know what problem the machine faces and make quick trouble shooting
wooden box package
Free shipping in mainland
1. Shuttle Star built in 2000, we are the first factory to do China-made BGA rework station in mainland,
and most of our staff have more than 5 years experience in Shuttle star company ;
2. Our factory past ISO
3. We have lots of patents.
4. We offer good quality and good technology to the world.our price is not cheap,but our service is very cheap.
5. Our customer and approved certification
If you want to know more about us,welcome contact with me:
Skype:lilies-lee
Telephone:0086 18820220117
Thank you for your time !
Shuttle Star not only do BGA rework station ....
