Weller BGA Rework Station/BGA Rewok Machine(PS400)
- Shenzhen
- Credit Card PayPal
You May Like
-
Motherboard BGA Repair Machine With Two Camera SV550A
-
PS400 Soldering Station for Small Motherboard Bga Repair
-
New Model SV560 High Vision System BGA Rework Station With Auto Profile Function
-
Auto Profile!SV550A BGA Repair Station for All Kinds of Chips and Motherboard (RW-SV550A)
-
New Auto Profile BGA Repair Station SV560
-
Optical Alignment BGA Rework Station Shuttle Star PS400 for Repair PC Motherboard, Game Console, Xbox360 Controller Repair
Product Details
| Place of Origin | Guangdong, China | Brand Name | Shuttlestar | |
| Model Number | PS400 |
Product Description
Specifications
BGA Repair System PS4001 PLC control
2 Optical alignment
3 Constant temperature control
4 Auto-solder & desolder
PLC Control Build-in Vacuum Pump BGA Rework Station for All Kinds of Chipset
Specification
Applicable PCB: | W20*D20~W350*D350mm |
PCB thickness: | 0.5~4mm |
Working table adjustment: | ±10mm forward/backward, ±10mm left/right |
Temperature control: | K-type thermocouple, close cycle controlled |
Upper heater(hot air): | 800W |
Lower heater(hot air): | 800W |
Bottom IR heater: | 2700W |
Power supply: | AC singal-phase 220V 50/60Hz |
Applicable BGA: | 1*1~70*70mm |
Placement precision: | 0.01mm |
Max BGA weight: | 80g |
Machine Weight: | 80KG |
Machine Dimension: | L600*W600*H750mm |
-----------------------------------------------------------------------------------------------------------------------------

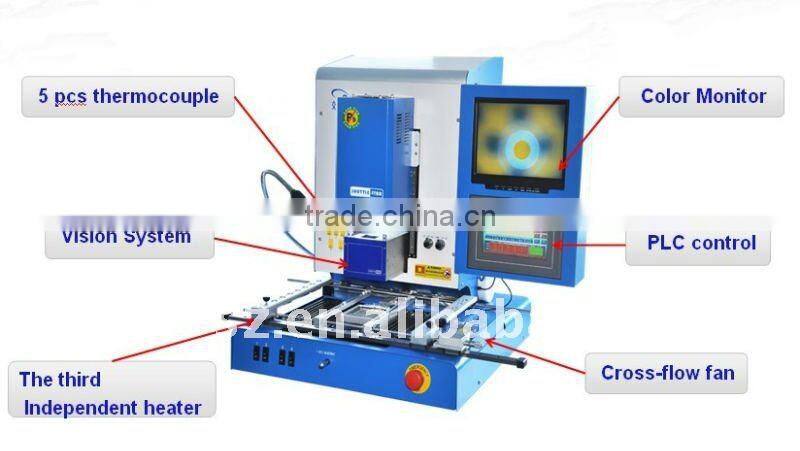

Description
* The streamline design is gorgeous and room-saving.
* Hot air head and mounting head are designed 2 in 1, and have both the auto soldering and
mounting function.

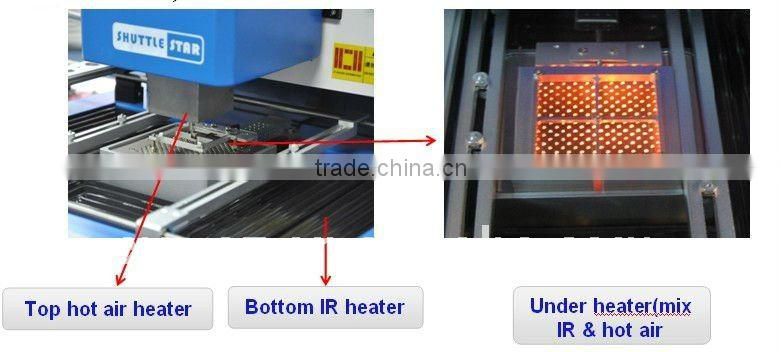

* Upper/lower hot-air heating,bottom infrared,three independent heating areas, temperature
and time can be displayed digitally on the touch screen.
* Powerful cross flow fans cool the bottom heating zone rapidly and constantly.
* Color optical system with functions of spilt vision, zoom-in and micro-adjust, equipped with
aberration detection device; with auto focus and software operation function, 22X optical
zoom.
* Embeded industrial computer can ananlyze the two proctically-tested profiles, and compare them with the history saved profiles;profile saving no limit for the industrial computer
* Color LCD monitor, touch screen interface;
* Built-in vacuum pump;60 rotating in angle mounting nozzle is micro-adjustable.
* 8 segments of temperature up(down) and 8 segments constant temperature control, profile saving is unlimited in the industrial computer;
* Suction nozzle can identify material and mounting height automatically, and can control the
air pressure within a small range.
* Equipped with different hot air nozzles, easy to replace and able to locate in any angle.
* Big size splint, equipped with deformation-proof supporting device,suitable for the accurate
rework of all kinds of PCB.
* Can handle 775 socket, 478 socket,XBOX360, PS2/3, PSP,etc .
