New Model SV560 High Vision System BGA Rework Station With Auto Profile Function
Negotiable
/ Set
1 Set(Min. Order)
- SHENZHEN/HONGKONG
- Credit Card
You May Like
-
Auto Profile!SV550A BGA Repair Station for All Kinds of Chips and Motherboard (RW-SV550A)
-
New Auto Profile BGA Repair Station SV560
-
Optical Alignment BGA Rework Station Shuttle Star PS400 for Repair PC Motherboard, Game Console, Xbox360 Controller Repair
-
Original Shuttle Star Factory Vision and High Precision Optical Alignment Bga Rework PS400 Laptop, Sp3, Computer Repair Tools
-
Low Cost Semi Auto BGA Rework Station For Repair All Kinds Of Motherboard RW-SV550 Shuttle Star
-
NEW ! Hot Selling Bga Rework Station for Mobile Phone Repair Rework Shuttle Star SV550
Product Details
| Place of Origin | Guangdong, China | Brand Name | Shutter star | |
| Model Number | RW-SV550 | Voltage | 220V | |
| Dimensions | L850*W750*H630 | Usage | Bga rework, bga chip repair |
Product Description
Specifications
BGA/IC/QFN rework StationAuto soldering&desoldering
Auto profile
PLC control,optical vision system
Can rework 2*2mm chip
(SV560) BGA/IC/GPU Rework Station with auto profile function
Specifications: (SV560) | |
PCB dimension | W20*20~500*550mm |
PCB thickness | 0.5~2.5mm |
Working table adjustment | +/-120mmforward/backward,+/-80mm left/right |
Temperature control | K-type thermocouple, close cycle controlled |
PCB locating | Outer |

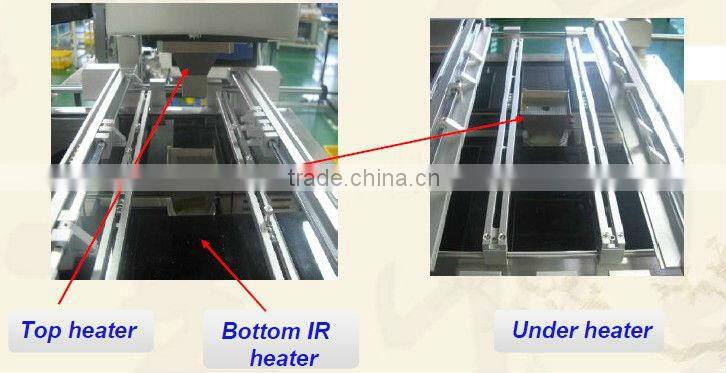

Upper heater | Hot gas 1200w |
Lower heater | Hot gas 800w |
Bottom preheat | Far infrared 3600w |
Power supply | Single-phase 220,50/60Hz. 5.5kw |
BGA dimension | 1*1~70*70mm |
Min pitch of BGA ball | 0.15mm |
Placement precision | 0.01mm |
Max BGA weight | 300g |
Machine dimension | L850*W750*H630mm |
Machine weight | Approx. 80kg |
|
|
|
|
|
|
|
|
|
|
