Hot Air IC Replacement Machine SV550 With LCD Display and Laser Location
US$ 1 - 1
/ Set
1 Set(Min. Order)
- shenzhen/hongkong
- T/T Credit Card PayPal
You May Like
-
Shuttle Star High Performance Automatic Motherboard Repair Machine Soldering Station
-
Shuttle Star Manufacturer Welding Machine Bga Rework System for Laptop Iphone Ps3 Motherboard
-
China Top Notch Infrared Soldering Station Cell Phone Repair Machine Bga Chip
-
Shenzhen Welding Equipment Acer Laptop Motherboard Prices With Solder Tools
-
Automatic Pcb Soldering Machine With Ccd Optical Camera for IC Chip Samsung
-
BGA Chip Removal Machine Soldering Iron Station With Smd Repair Tools
Product Details
| Place of Origin | Guangdong, China | Brand Name | Shuttlestar | |
| Model Number | RW-SV550 | Voltage | 220V, 220V | |
| Current | 10-120A | Rated Capacity | 4500W | |
| Rated Duty Cycle | 60% | Dimensions | L746*W820*H800MM | |
| Weight | 75KG, 80KG | Usage | Welding rework solder reballing repair | |
| Certification | ISO9001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Hot air IC replacement machine SV550 with LCD display and laser location
Shuttle star industrial Co.,Ltd ,the company expert in bga rework station for 17years, the reliability and technology deposit are all recognized at home and abroad,so if you are looking for bga rework station, we are definitely your best choice.
Product Description
Specification
| PCB dimension | W20*D20~W550*500 |
| PCB thickness | 0.5~4mm |
| Working table adjustment | ±120mm Forward/backward, ±80mm Left/right |
| Top heater | 1200w |
| Bottom heater | 800w |
| Area heater(Far infrared) | 3600w |
| Power supply | Single-phase 220v,50/60Hz |
| BGA dimension | 1*1~70*70mm |
| Min pitch of BGA ball | 0.15mm |
| Placement precision | ±0.02mm |
| Max BGA weight | 300g |
| Machine dimension | L850*W750*H630 |
| Weight | Appox: 80kgs |
| Temperature control | k-type |

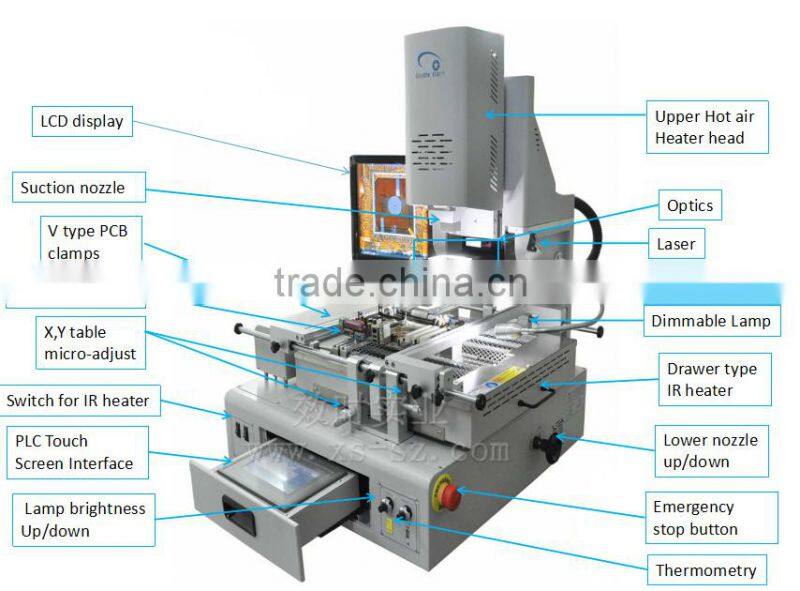

RW-SV550

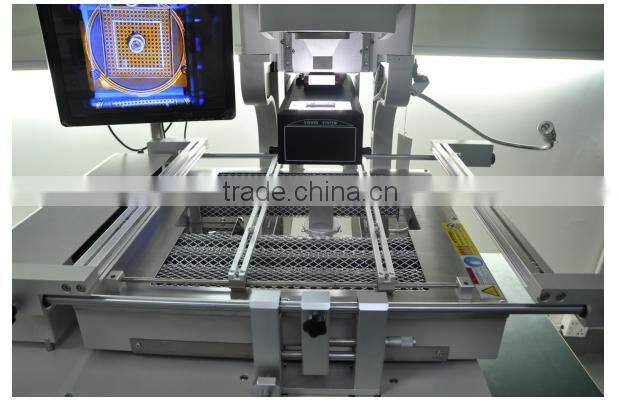

Optical alignment
Automatic pick up and placement and soldering
Three temperature zone of BGA rework station

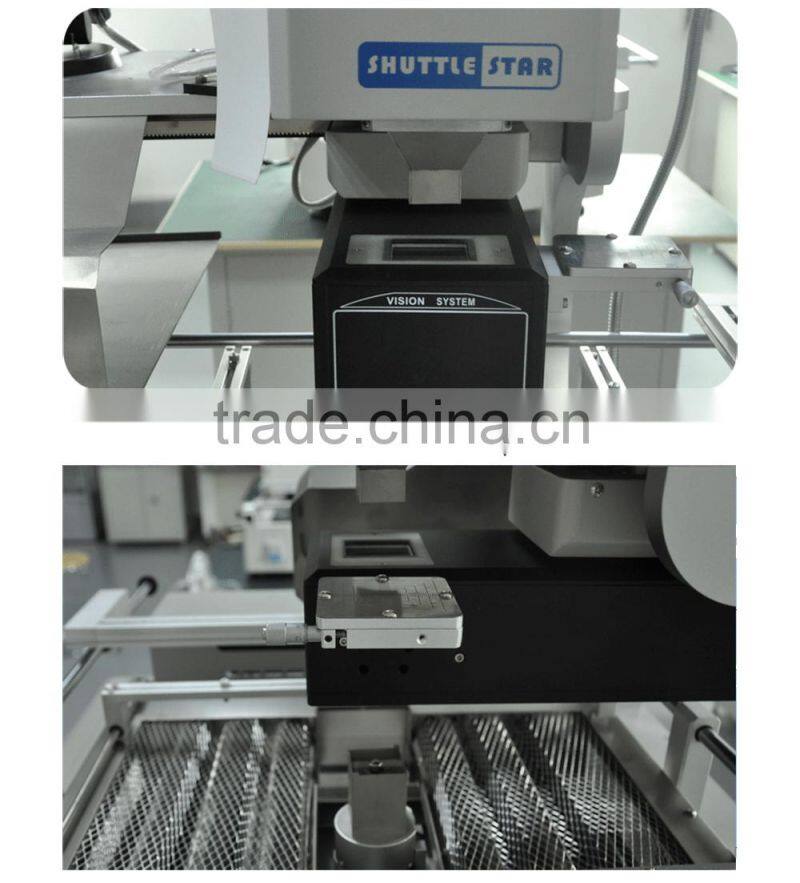

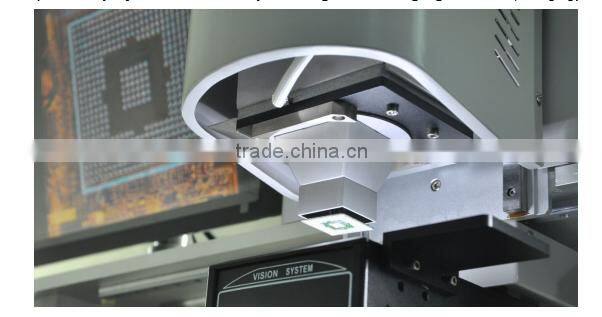

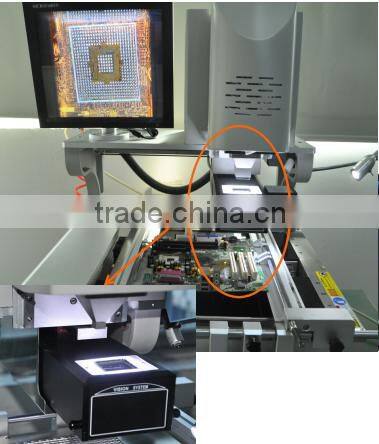

Color optical camera system:
1) Split vision
2) Zoom in/out and micro-adjust
3) Equipped with aberration
4) Detection device
5) With auto focus and software operation function

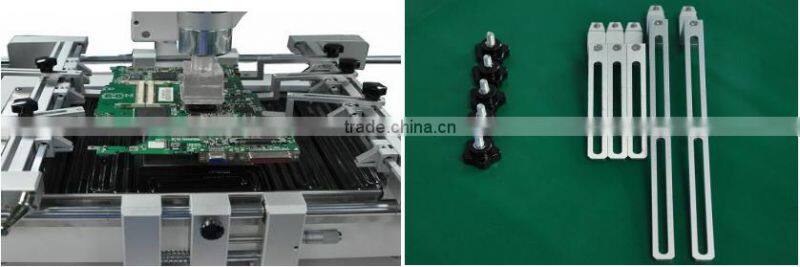

PCB clamps and support rail

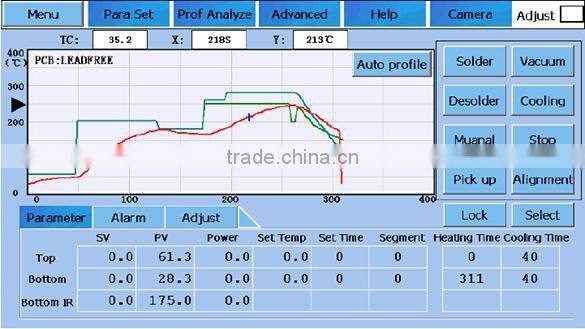

Real-time profile display
Different alloy nozzles for you to choose
Other features:
1.Hot air heater head and mounting head are designed 2 in 1, driven by step electric motor, have both the
auto soldering and mounting function;
2.Three heaters( upper/lower hot air heater, bottom IR heater) heating independently, time and temperature
can be displayed digitally on touch screen;
3.Upper heater is movable, convenient for operation;

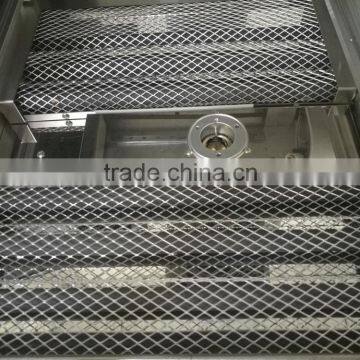

4.Large movable bottom IR heating area, PCB clamps can be adjusted along with X & Y table flexibly, the max
PCB size it can handle up to 550*500mm;
5. Powerful cross flow fans cool the bottom heating area rapidly with stable speed;
6. Color optical system with functions of split vision, zoom in/out and micro-adjust, equipped with aberration
detection device; with auto focus and software operation function, 27 X optical focus, able to rework BGA
sized up to 70*70mm;
7. Embedded industrial computer, touch screen interface, PLC control, real-time profile display, able to display
set profile and 5 practically tested profile at the same time; can analyze the five practically-tested profiles;
8.Color LCD monitor;
9. Built-in vacuum pump, 60 °rotation in φ angle, mounting nozzle is micro-adjustable;
10.8 segments of temperature up(down) and 8 segments constant temperature control, profile saving is unli
-mited in the industrial computer;
11.Suction nozzle can identify material and mounting height automatically, and can control the air pressure
within a small range of 30-50g;
12.Equipped with different hot air nozzles, easy to replace and able to locate in any angle.
Packaging & Shipping
1, All machines will be packaged in wooden box if the buyers ask no special demand.
2, It is free shipping in mainland.
Our Services
1, Warranty: one year.
2, Service hot line: 24 hours all round year
3, Spot goods: 3 million sets.
4, Delivery date: with 7 business days after receiving the payment.
