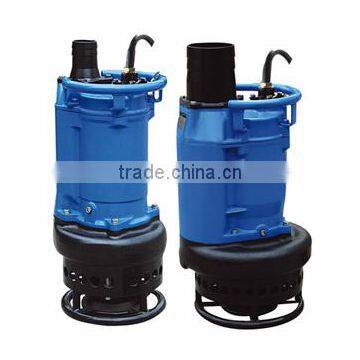

KBS Submersible Slurry Pump 100KBS46 / 100KBS49
Negotiable
1 (Min.Order)
You May Like
Product Details
| Model Number | KBS | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Pressure | High Pressure | Application | Sewage |
Product Description
Specifications
1. Compact design.2. 100%copper wire.
3. 4-pole motor.
Description:
- Submersible slurry pumps with a 4-pole motor for an increased lifetime and greater convenience.
- KBS- based extra powered submersible slurry pumps with agitator.
- Slim design with a top discharge enabling installation in smaller casings.
- For bentonite mixed water in foundation works or muddy water in civil engineering works.
Specification:
- Capacity: up to 3.25m³/min
- Head: up to 22m
- Discharge 80mm(3") to 150mm(6")
- Power: 4KW(5.5HP) to 9KW(12HP)
- Power Supply: three-phase 380V±10%, 50Hz, 60Hz
- Insulation Class: F
- Protection Class: IP68
- Cable: Length 8m
- Water Temperature: Up to 40°C
- Max. water depth: 30m
Application:
- Civil engineering.
- Mines, Quarries, Coal ore & Slurries.
- Sewage treatment plants.
- General pumping purposes.
- Pumping fluid: sludge, liquids containing mud or bentonite.
| Model | 100KBS46 | 100KBS49 |
| Outlet | 100 | 150 |
| Power | 6KW | 9KW |
| Max. Head | 16.9m | 21.5m |
| Max. Capacity | 2.5m3/min | 2.85m3/min |
| Impeller passage | 30mm | 30mm |
| Net Weight | 145 Kilogram (KG) | 170 Kilogram (KG) |
| Gain Weight | 156 Kilogram (KG) | 184 Kilogram (KG) |
| Packing Size (MM) | 915mm*475mm*520mm | 935mm*500mm*555mm |
