Dry-free Vertical Sealless Pumps PE-232F

FOB Price

Negotiable

1 (Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1. Made in Taiwan.
2. Sealless Pump.

Pumps with Unique Sealless Structure New Design and Adopting Lip Seal Feature to Give Pump Dry Running Ability.

Material:

Features:

Sealless structure:

The sealless principle of fluid in our ShowFou vertical sealless pump is to utilize the pressure, viscosity, friction of the fluid.
During running, the fluid flowing to shaft caused by inner pressure, but the specially designed two-layered impeller enables to seal up the fluid successfully and reduce the suction air to enter the pump;thus, the inner will keep high vacuum situation.

Dry running ability:

Superior construction design, there is no any contact between the pump body and the impeller.
Owing to no any friction caused in running, the long period dry running will not cause any damage with pump.

Lip seal structure and PP sleeve:

To prevent chemical gas entering to motor shaft, our ShowFou solution is to equip our PEB type with a lip seal, so when the pump is in operation, the lip seal is forced to open by centrifugal force in order to stop the gas leakage.
When stop, the lip seal will closed up to seal up the chemical gas due to reactive force of its rubber.
Moreover, an additional part of oil seal on motor will protect the shaft also.
However, for our PE type, the main shaft and motor are protected by the PP sleeve and oil seal, and the leaked gas will be perished immediately due to the special upper bracket design which can also solve the liquid overflow problem.

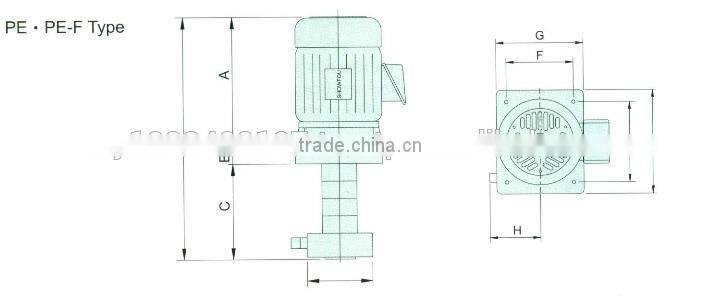

Dimensions:
