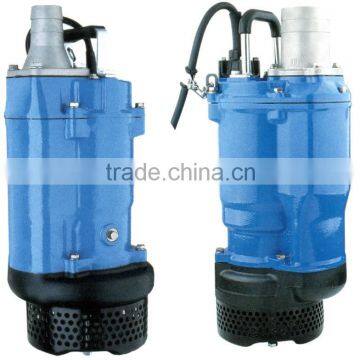

KBZ Submersible Dewatering Pump
Negotiable
1 (Min. Order)
You May Like
Product Details
| Model Number | KBZ | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Pressure | High Pressure |
Product Description
Specifications
1. 100%copper wire .2. made up of rigid cast iron.
Features:
- The Body of motor & pump is made of rigid cast iron for long-lasting durability.
- Greatly increased max. submersion depth due to m.seal resistant to high pressure 0.5Mpa).
- Semi-open impeller made of high chrome alloy match with wear plate(ductile iron) achieves superior durability.
- Effective motor cooling due to discharge channel cast as part of the motor housing. Space economy by a top outlet.
- Discharge 50mm(2") to 150mm(6"), motor 1.5kw(2hp) to 15kw(20hp).
- Hermetically sealed motor equipped build-in thermal protection.
- Capacity up to 155m³/h. Cable: length 8m.
- Water temperature up to 40°C.
- Max. water depth: 50m.
Application
1. Civil engineering
2. Mines,quarries,coal ore & slurries
3. Sewage treatment plants
4. General pumping purposes
5. Special features on request

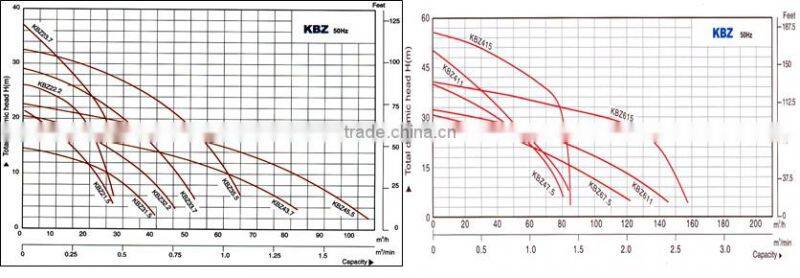

| Model | KBZ21.5 | KBZ22.2 | KBZ32.2 | KBZ33.7 | KBZ43.7 | KBZ45.5 | KBZ47.5 | KBZ411 | KBZ67.5 | KBZ611 | KBZ615 |
| Power(HP) | 2hp | 3hp | 3hp | 5hp | 5hp | 7.5hp | 10hp | 15hp | 10hp | 15hp | 20hp |
| Rated Capacity(m³/min) | 0.25 | 0.3 | 0.6 | 0.5 | 1 | 1 | --- | --- | --- | --- | --- |
Rated Head(M) | 15m | 20m | 10m | 20m | 10m | 15m | --- | --- | --- | --- | --- |
| Max. Capacity(m³/min) | 0.45 | 0.45 | 0.83 | 1.17 | 1.5 | 1.75 | 1.4 | 1.44 | 2.04 | 2.44 | 2.58 |
| Max. Head(M) | 22m | 26m | 21m | 29m | 18m | 23m | 40m | 48.5m | 31m | 32.5m | 40m |
| Outlet(MM) | 50mm | 50mm | 80mm | 80mm | 100mm | 100mm | 100mm | 100mm | 150mm | 150mm | 150mm |
| Impeller passage(MM) | 8.5mm | 8.5mm | 8.5mm | 8.5mm | 8.5mm | 8.5mm | 11.5mm | 11.5mm | 19.5mm | 19.5mm | 19.5mm |
| Dimension(CM) | 59*29*25 | 59*29*25 | 59*29*25 | 68*34*40 | 69*34*29 | 75*35*38 | 81*39*40 | 85*43*39 | 84*37*40 | 85*43*39 | --- |
| Weight(KG) | 31Kg | 35Kg | 35Kg | 62Kg | 62Kg | 82Kg | 108Kg | 136Kg | 110Kg | 139Kg | 168Kg |
