Centrifugal Pump With Medium Flow Rates HFm5AM
Negotiable
1 (Min. Order)
You May Like
Product Details
| Place of Origin | Italy | Brand Name | Pedrollo | |
| Model Number | HFm5AM | Theory | Centrifugal Pump | |
| Usage | Water | Power | Electric | |
| Fuel | Other, Motor | Application | Other, Clean Water |
Product Description
Specifications
1. Original Pedrollo Pump.2. High Performance.
3. High Efficiency.
4. Made in Italy.
5. C/W Motor.
Performance Range:
- Flow rate up to 600L/min.
- Head up to 39m.
Installation and Use:
- Suitable for use in civil and agricultural application.
- The high efficiency and continuous duty capabilities makes these pumps ideal for use in activities such as flood and spray irrigation, drawing water from lakes, rivers and wells, or for any number of different industrial applications where the characteristics of high flow rates and mid to low head are required.
- The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
| Model | HFm5AM |
| Size (Discharge) | 2" x 2" |
| Power (Kw) | 1.5 Kw |
| Phase | 1 |
| Performance--Flow (L/min) | 100 ~ 500 |
| Performance--Head (Meter) | 22 ~ 10 |
Electric Motor : HFm > single-phase 230V - 50Hz with thermal overload protector built-in to the winding.

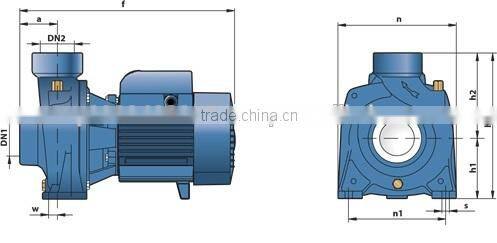

Dimensions:
| Model | HFm5AM |
| Ports (DN1) | 2" |
| Ports (DN2) | 2" |
| Dimensions (mm) ---a | 51 |
| Dimensions (mm) ---f | 386 |
| Dimensions (mm) ---h | 260 |
| Dimensions (mm) ---h1 | 110 |
| Dimensions (mm) ---h2 | 150 |
| Dimensions (mm) ---n | 206 |
| Dimensions (mm) ---n1 | 160 |
| Dimensions (mm) ---w | 1 |
| Dimensions (mm) ---s | 11 |
