LY1-(C)8 Series Wind Surge Protective Device
- Ningbo/Shanghai
- T/T L/C D/P D/A
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | LEEYEE | |
| Model Number | LY1-C8 |
Product Description
Specifications
LY1-(C)8 Surge protective device(SPD)1.Rated voltage:800V,1000V
2.Pole:1~4
3.Cgrade lightning proof
4.IEC61643-1,GB18802.1
LY1-(C)8 Surge protective device(SPD)
Product Description:
LY1-C8 series surge protective device is suitable for the new energy solar power generation system, its working voltage covers 500V, 800V,and 1000V. It is installed in the main power system at DC circuit to protect against the indirect lightning current, direct lightning current or other instantaneous over voltage.

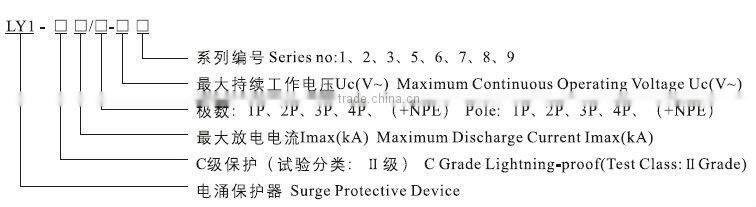

Model and Meaning:
Product feature:
1.Plug in/out style surge protective device.
2. The color of visible window shows operating status.
3. Double protection of over-heat and over-current.
4. Have the accessory of remote signaling interface, could be remote control.

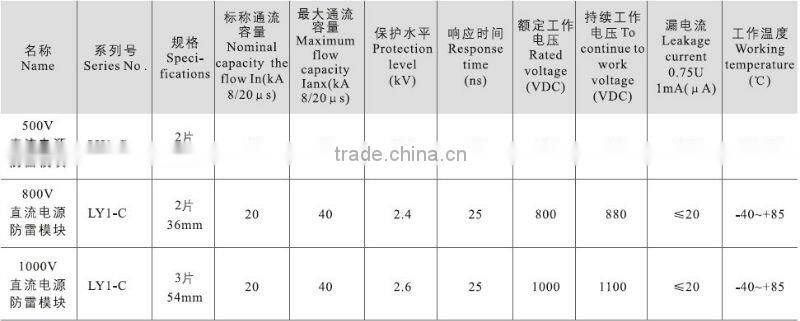

Main technical parameters:

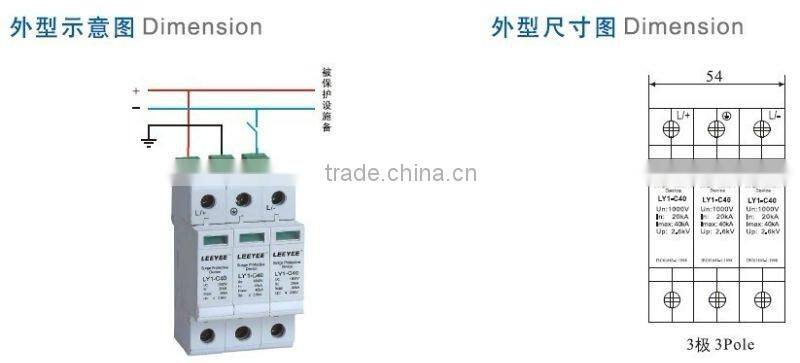

Dimension:
