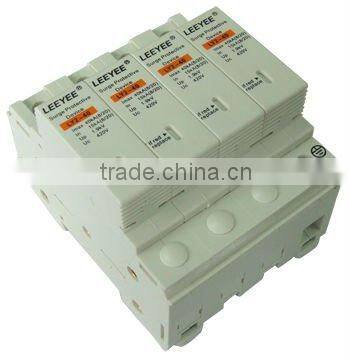

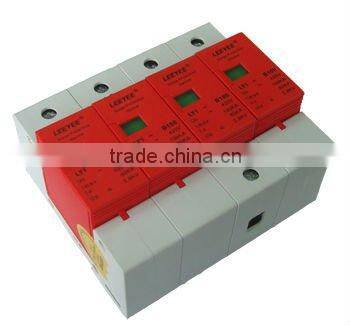

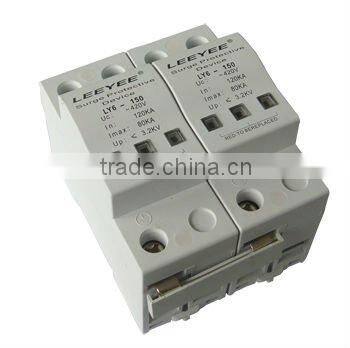

'LY1-(B)6 Citel Type Class B 220V 100KA Power Supply Surge Protection
- Ningbo or Shanghai
- T/T
You May Like
-
'LY1-(C)3 Citel Type Class B 220V 100KA Power Supply Surge Protection
-
'LY1-(C)1 Surge Protector Class C Three Phase
-
'LY1-(C)1 Lightning Arrester Class C 220V 30KA
-
'LY1-(C)1 Types of Lightning Arrester Class C 220V 30KA
-
'LY1-(C)1 Class C 20KA Surge Protective Device
-
'LY1-(C)1 Class C 20KA 220V Surge Protector
Product Details
| Place of Origin | Zhejiang, China | Brand Name | LEEYEE | |
| Model Number | LY1-(B)6 |
Product Description
Specifications
1.LY1-(B)6 surge protection2.OEM,ODM surge protection
3.good quality surge protection
4.manufacturer
5.IEC61643-1
LY1-(B)6 citel type Class B 220V 40KA power supply surge protection/surge protection/surge protection/surge protection
Product Description
LY1-(B)6 series surge protection/surge protection/surge protection(in short: SPD, alias: surge protector, surge arrester)is suitable for TN-S,TN-C-S,TT,IT etc. power supply system of AC50/60Hz,≤380V, installed on the joint of LPZ1 or LPZ2 and LPZ3,it's designed according to IEC61463-1,GB18802.1, it adopts 35mm standard rail, there is a failure release mounted on the module of surge protective device. When the SPD fails in breakdown for over-heat and over-current, the failure release will help electric device separate from the power system and give the indication signal, green means normal, red means abnormal, it's also could be replaced for the module when has operating voltage.surge protection/surge protection/surge protection/surge protection/surge protection

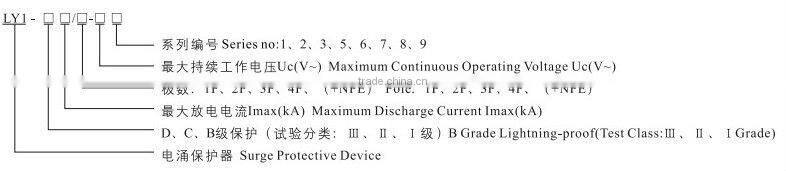

Model and Meaning
Main technical parameters :
Model Technical Parameters | LY1-B200 | LY1-B150 | LY1-B120 | LY1-B100 | LY1-B80 | LY1-B60 | |||||||||
Rate Operating Voltage Uc(V~) | 220V/380V | ||||||||||||||
Maximum Continuous Operating Voltage Uc(V~) | 385V/420V | ||||||||||||||
Voltage Protection Level Up(V~)kA | ≤2.8 | ≤3.2 | ≤3.0 | ≤2.8 | ≤2.4 | ≤2.2 | |||||||||
Nominal Discharge Current In(8/μ20μs)kA | 1500 | 150 | 120 | 100 | 80 | 60 | |||||||||
Maximum Discharge Current Imax(8/μ20μs)kA | 200 | 100 | 80 | 60 | 40 | 30 | |||||||||
Response Time ns | <25 | ||||||||||||||
L/N(mm2)The Cross Section of L/N Line | 25,35 | 16,25 | 16,25 | 16,25 | 16,25 | ||||||||||
PE(mm2)The Cross Section of PE Line | 32 | 25,35 | 25,35 | 25,32 | 16,25 | ||||||||||
Fuse or Switch(A) | 63A,125A | 63A | 63A | 63A | 63A,32A | ||||||||||
(mm2)The Line Section of Communication and Alarm | ≤1.5 | ||||||||||||||
Operating Environment°C | -40°C~+85°C | ||||||||||||||
lative Humidity(25°C) | ≤95% | ||||||||||||||
Installation | Standard Rail 35mm | ||||||||||||||
Material Of Outer Covering | Fiber glass reinforced plastic | ||||||||||||||
Product feature:
1,Could be replaced for the module not need power cut.
2,Maximum current of endure the lightning stroke 65kA(8/20μs)
3,Response time <25ns.
4,The color of visible window shows operating status, white means normal ,red means

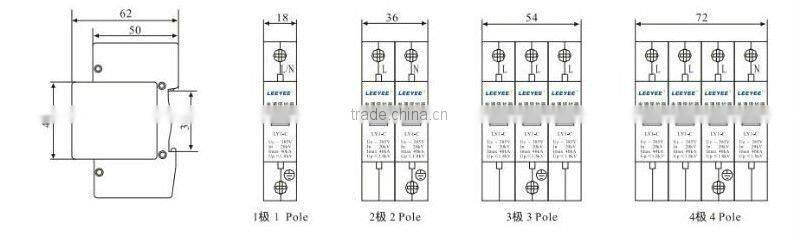

Diemension

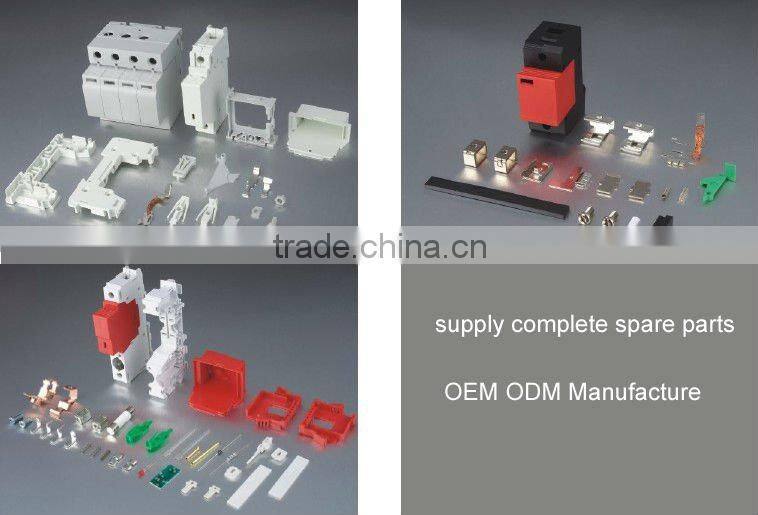

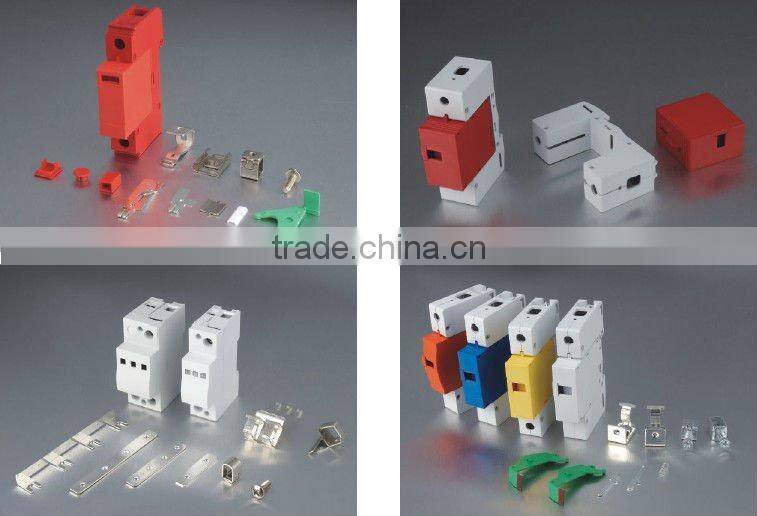

Our factory also supply OEM/ODM complete spare parts for surge protection

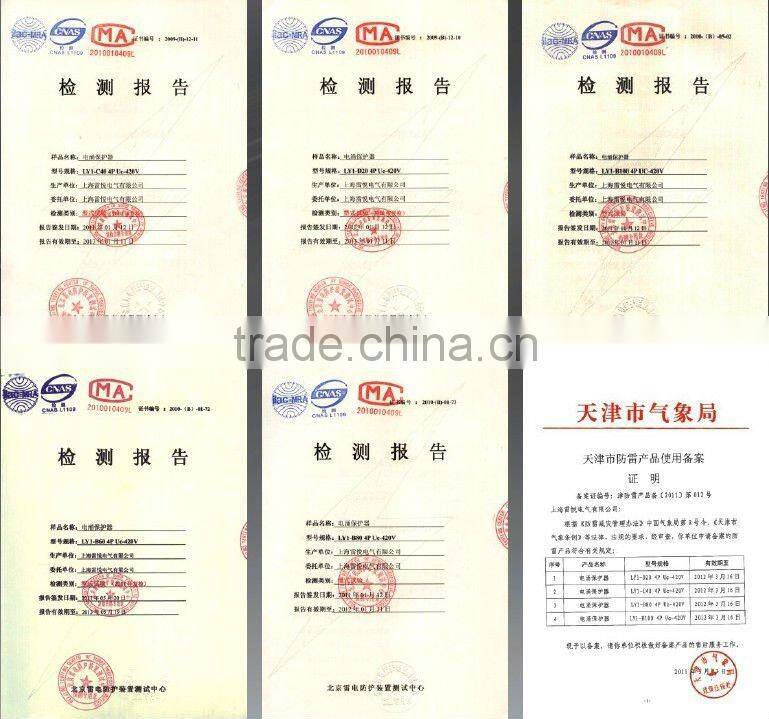

Test reports

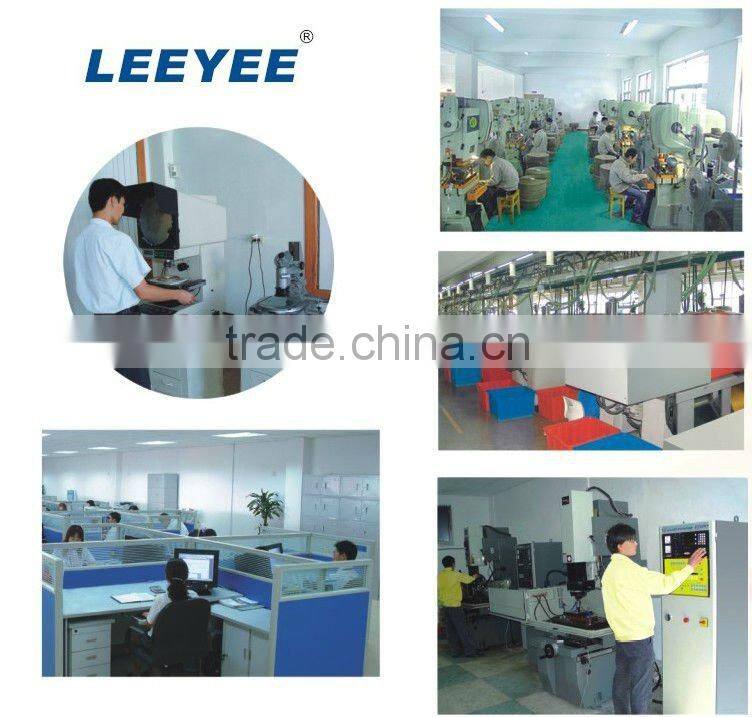

Our factory

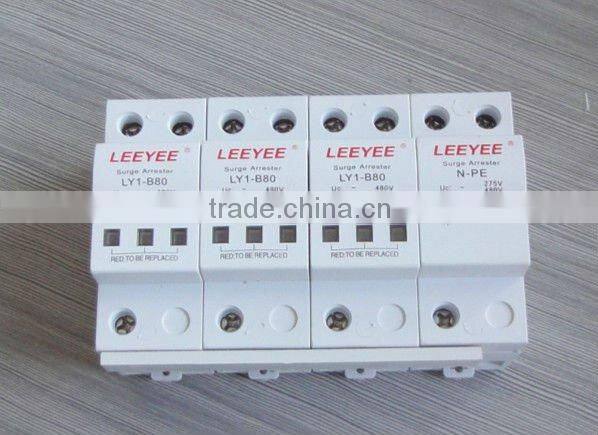

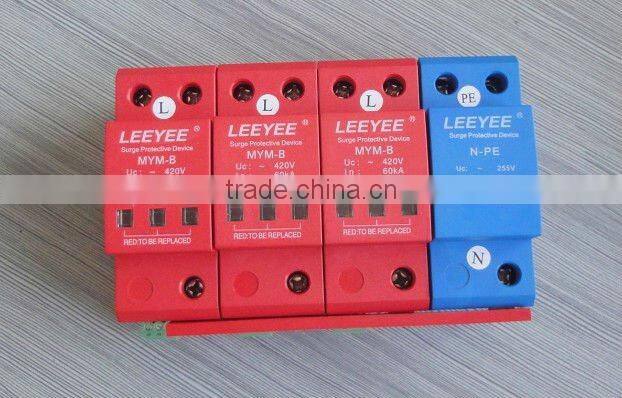

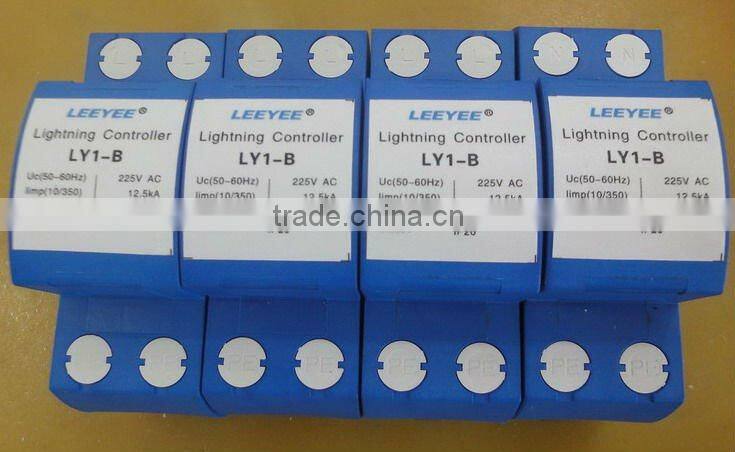

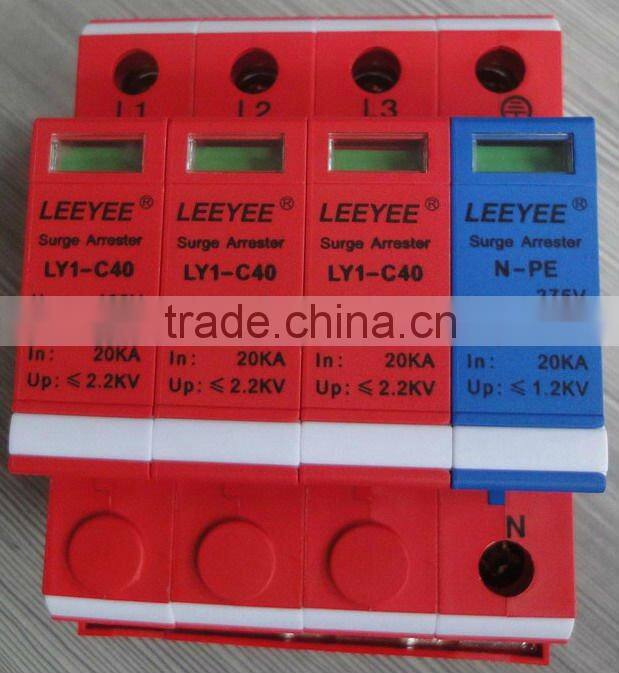

Other types of surge protection
