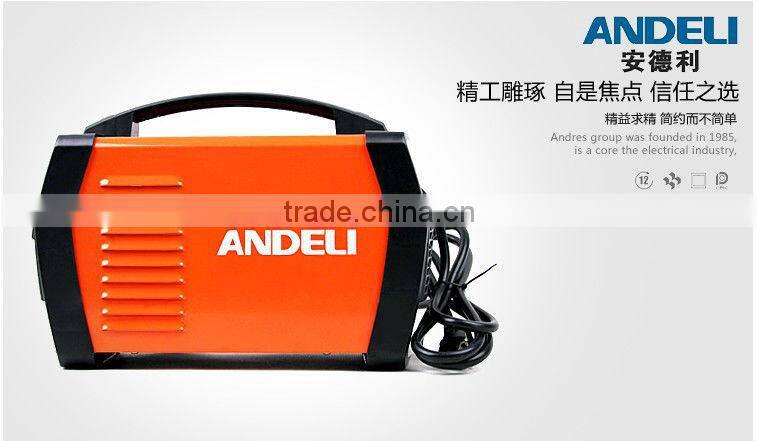

Sales Champion 2013 Automatic Portable Inverter DC TIG MMA Welding Machine (IGBT Type)

FOB Price

US$ 1 - 499 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Zhejiang, China
Brand Name	ANDELI Or OEM	Model Number	TIG-180G, 200G, 250G
Arc Current	155A,170A,220A	Pulse Frequency	50/60HZ
Pilot Arc Current	20A	Rated Duty Cycle	60%
Motor Type	DC Motor	Dimensions	480x200x375MM
Usage	TIG, MMA	Voltage	single phase AC220 ±15%,three phase AC380 ±15%
Power(W)	5KVA,5.7KVA,8KVA	Certification	CE,CCC,ISO9001
Warranty	1 Year	After-sales Service Provided	Engineers available to service machinery overseas

1) Multi-process: MIG/MAG/CO2/TIG/MMA
2) IGBT inverter
3) Compact type
4) Simple operation
5) Portable

Sales champion Automatic Portable Inverter DC TIG MMA Welding Machine (IGBT Type)

Portable TIG/MMA Welding Machine
Model	TIG-180G	TIG-200G	TIG-250G
Type	IGBT Chip
Rated input voltage (V)	single phase AC220 ±15%		three phase AC380 ±15%
Rated frequency (Hz)	50/60		50/60
Rated input power (KVA)	5	5.7	8
Rated input current (A)	23	26	12
Rated output	155A/26.2V	170A/26.8V	220A/28.8V
Output current (A)	TIG: 20-175 MMA: 20-155	TIG: 20-190 MMA: 20-170	TIG: 20-220 MMA: 20-220
No-load voltage (V)	56±5	62±5	62±5
Rated duty cycle (%)	60	60	60
Efficiency (%)	80	80	80
Power factor	0.7	0.7	0.7
Protection grade	IP21	IP21	IP21
Insulation grade	F	F	F
Net weight (KG)	5.5	6.4	20
Gross weight (KG)	8.4	9.3	22
Housing of machine	iron		iron
Dimension of machine (mm)	335×120×200		480×200×375
Dimension of packing 1V1 (mm)	428×228×226		472×237×336
Dimension of packing 4V1 (mm)	475×445×485		—
including accessories: earth clamp×1pcs, cable joint×2pcs, inner hexagon spanner×1pcs, grounding cable×3meters, TIG torch×1set (QQ150A for TIG-180G/200G, WP-26 for TIG-250G)
plastic box with complete accessories is optional

Our Competion:

Achievements:

* BUY WITH CONFIDENCE.

* QUALITY MACHINES MANUFACTURED BY ANDELI.

* FULL SERVICE AND PARTS BACK UP.

* 12 MONTHS WARRANTY.

The data in the above table is only for reference. Please subject to the nameplate on the device.
