2013 new arrived IGBE Module plastic welding Machine TIG-315P
- Shanghai or Ningbo
- T/T Credit Card
You May Like
-
2013 New ac inverter dc tig digital welding machine TIG/MMA series (IGBT Type)
-
2013 the mainstream welder Inverter DC TIG / MMA Welding Machine TIG-200 (IGBT chip)
-
Sales champion 2013 Automatic Portable Inverter DC TIG MMA Welding Machine (IGBT Type)
-
Best selling New Automatic Portable Inverter DC TIG/MMA Welding Machine (IGBT Type)
-
Best quality IGBE Module digital ac tig welder TIG-250
-
2016 Factory Sale New Automatic Portable Inverter DC TIG/MMA Welding Machine 400A,500A,630A (IGBT Type)
Product Details
Condition | New | Place of Origin | Zhejiang, China | |
Brand Name | ANDELI | Model Number | TIG-315P | |
Arc Current | 20-160A | Pulse Frequency | 50HZ | |
Pilot Arc Current | 5-315A | Rated Duty Cycle | 60% | |
Motor Type | DC Motor | Usage | plastic welding machine | |
Voltage | AC380±10% | Power(W) | 12.1 | |
Certification | CE,CCC | Warranty | 2 year | |
After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications
plastic welding MachineHeavy duty cycle
AC for welding aluminum,DC for steel
easy to operation
affordable
IGBE Module Inverter DC Pulse plastic welding Machine
Inverter TIG Pulse Welding Machine | ||
Model | TIG-315P | TIG-400P |
Type | IGBT Module | |
Rated input voltage | three phase 380V±10% / 50Hz | |
Rated input capacity | 12.1KVA | 17KVA |
Rated input current | 21A | 28A |
Rated duty cycle | 35% | 60% |
Pre-flow time | 0.1-15s | |
Start arc current | 10-160A | |
Current slow up time | 0.1-10s | |
Arcing current | 20-160A | |
Constant current | 5-315A | 5-400A |
Force current | 10-200A | |
Peak current | 5-315A | 5-400A |
Ducy ratio | 1%-100% | |
Pulse frequency | 0.2-50Hz | |
Base current | 5-315A | 5-400A |
Current decay time | 0.1-15s | |
Crater arc current | 5-315A | 5-400A |
Gas delay time | 0.1-15s | |
Efficiency | 89% | |
Power factor | 0.95 | |
Net weight | 42KG | 42KG |
Insulation of main transformer | H | |
Insulation of output reactor | B | |
including accessories: earth clamp×1pcs, cable joint×2pcs, grounding cable×3meters, air cooled QQ300 TIG torch(water cooled QS300 is optional)×1pcs |
PLS NOTE:
The average of our welding machine lasts between FIVE and SIX years.
If there were problems in seven days,we replace the new one for you.
Why choose ANDELI Brand welding machine?
1. We are welding machine MANUFACTURER,so we can offer better price and after-sale service and shorter delivery date.
2. We use all new components,TOSHIBA mosfet tube,FUJI diode,NICON capacitor and so on imported components.
3. We adopt SMT technology to decrease failure rate and it is convenient to repair the machine and reduce the cost of repairing,we just need to change the bad pcb board.
4. We have successfully exported to Indonesia, Malaysia, and Thailand and so on foreign countries in all more than ten thousand of each model.We all get good feedback.
5. For large order,our engineer can come to your country Site Instruction.
6. We give customer 1% FREE SPARE PARTS (include pcbs with components and additional mosfet tube and components) to support repairment.
7. We provide a FREE ONE YEAR WARRANTY for all our items.
8. OEM brand.
Achievements:
Our competive :
* BUY WITH CONFIDENCE.
* QUALITY MACHINES MANUFACTURED BY ANDELI.
* FULL SERVICE AND PARTS BACK UP.
* 12 MONTHS WARRANTY.
The data in the above table is only for reference. Please subject to the nameplate on the device.
Why not try one sample first?Choosing our products,give yourself maximum profit. Inquires are typically answered within 24 hours.
Working line:

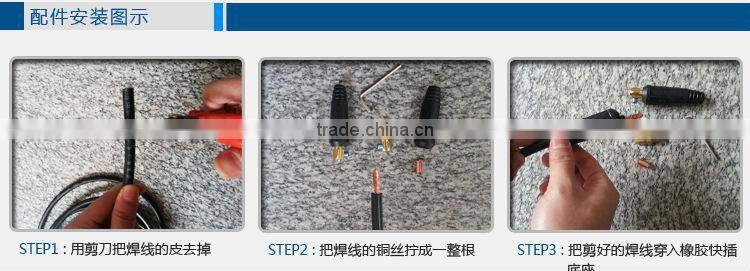

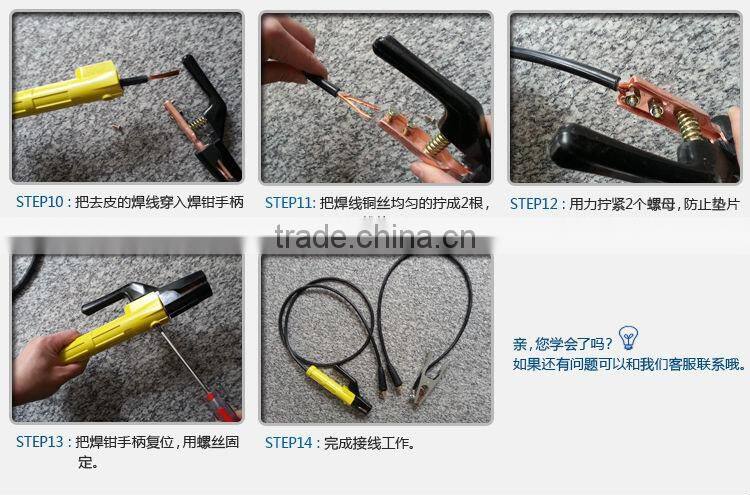

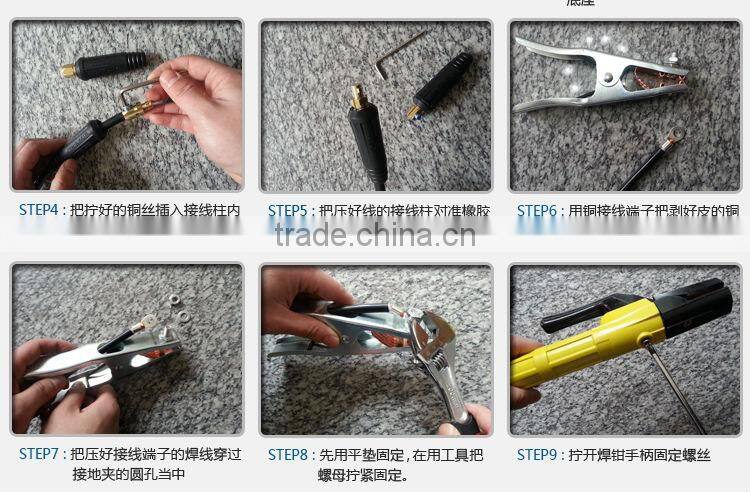

Spare part installation:
Any enquiry from you are welcome, we will reply you asap in 24 hours!
