110V 220V DC Inverter Welder With Wire Feeder Pulse MIG Welder (Pulse MIG-350H)
- Ningbo/Shanghai
- T/T Credit Card
You May Like
-
2013 High Tech Advanced DSP Multifunction Welding Machine With Pulse Mig Tig Mma Welder
-
Chinese TOP3 Full Digital Multiprocess Pulse Co2 Mig Aluminium Welding Machine
-
4T Function DSP Contrl Digital Automatic Pulse Mig Mag Welding Machine MIG-500P 500amp Suitable for All Kinds of Welding Job
-
Robot Welding Machine Double Pulse MIG MAG Multi-function Aluminium MIG Welder Robotic Welding Machine
-
TIG Stick Welding Machine Tig ac dc 200 Super 200p Tig Welder
-
Automatic DC 380Volt WSME250 Aluminum Tig Ac/dc Welding Machine
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | ANDELI | Model Number | Pulse MIG 350 | |
| Arc Current | 25-350a | Pulse Frequency | 20KHz | |
| Pilot Arc Current | 20-200A | Rated Duty Cycle | 60% | |
| Motor Type | DC Motor | Dimensions | 580*290*550 | |
| Usage | advertising for mig welder | Voltage | 220V/380V | |
| Power(W) | 50kva | Certification | CE,CCC,ISO9001 | |
| Warranty | 1 year | After-sales Service Provided | Overseas service center available |
Product Description
Specifications
MIG Welder1.weld metal thickness above 0.8mm
2.low cost
3.high efficient
1.Product Features and Technical Details
Product Name: 110V 220V DC Inverter welder with wire feeder Pulse MIG Welder (Pulse MIG-350H)
A--Product Features
1. Suitable for different kinds materials welding such as steel, stainless steel, alumimum, zinc coated steel, cooper and so on.
Multi functions in one machine--MIG/MAG, P-MIG/MAG, double P-MIG, CO2, TIG, P-TIG, MMA, carbon arc gouging.
2. DSP control and soft-switch improve the dynamic characteristic and welding performance.
3. One knob synergic operation, simple and easy for everyong to use.
4. Preprogrammed expert database, make perfect welding realized.
5. DSP control wire feed, feeding wire more acuurated and smoothly.
B--Technical Details
DSP Double Pulse MIG/MAG Welding Machine | ||
Model | Pulse MIG-350 | Pulse MIG-500 |
Type | IGBT Module | |
Rated input voltage (V) | three phase AC380 ±10% / 50Hz | |
Rated input capacity (KVA) | 14.4 | 25 |
Rated input current (A) | 25 | 46 |
Rated duty cycle (%) | 60 | 60 |
Output current adjustment (A) | 25-350 | 25-500 |
Output voltage adjustment (V) | 14-40 | 14-50 |
Open-circuit voltage (V) | 96 | 98 |
Efficiency (%) | ≥89 | |
Power factor | ≥0.87 | |
Diameter of welding wire (mm) | 0.8, 1.0,1.2, 1.6 | |
Net weight (KG) | 42.5 | 52.5 |
Dimension of machine (mm) | 645×335×576 | 645×335×576 |
Flow rate of shielded gas (L/min) | 15-20 | |
Insulation of main transformer | H | |
Insulation of output reactor | B | |
including accessories: earth clamp×1pcs, cable joint×3pcs, grounding cable×3meters, control cable×5meters, pressure regulator×1pcs, water cooled MIG torch×1pcs, water tank×1set, wire feeder×1set | ||
(P)MIG-350/500: each parts (wire feeder & main machine & water tank) are separated | ||

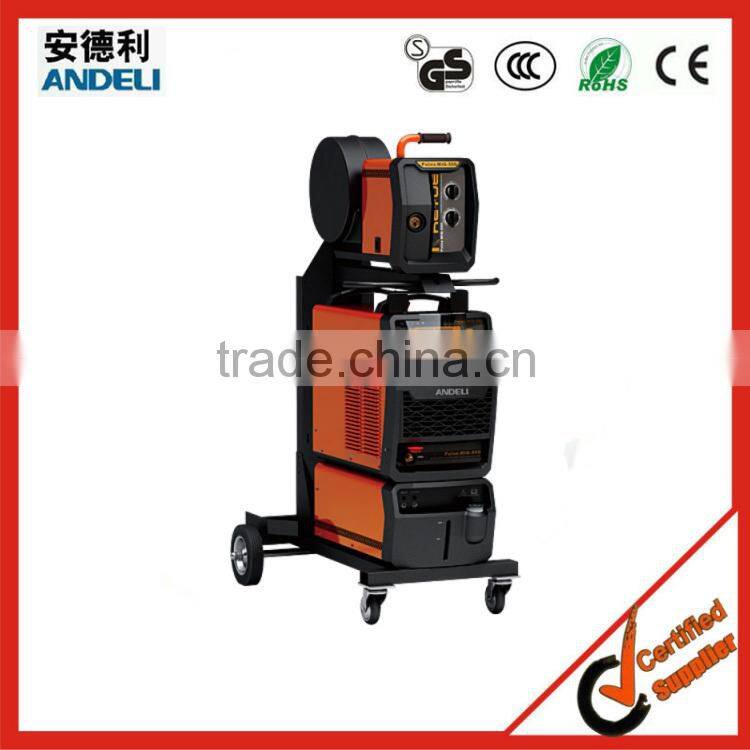

(P)MIG-350H/500H: all parts (wire feeder & main machine & water tank) could be assembled together on a composite car | ||

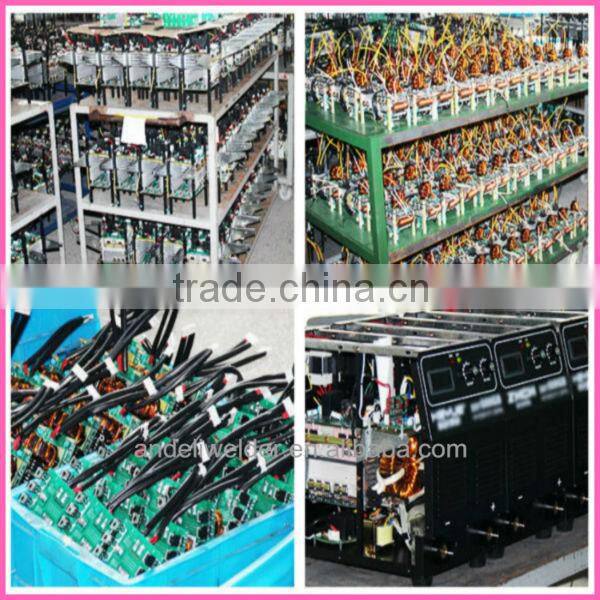

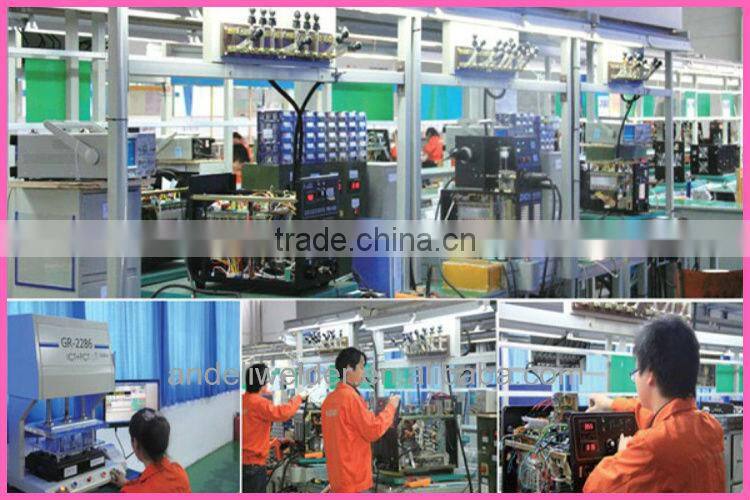

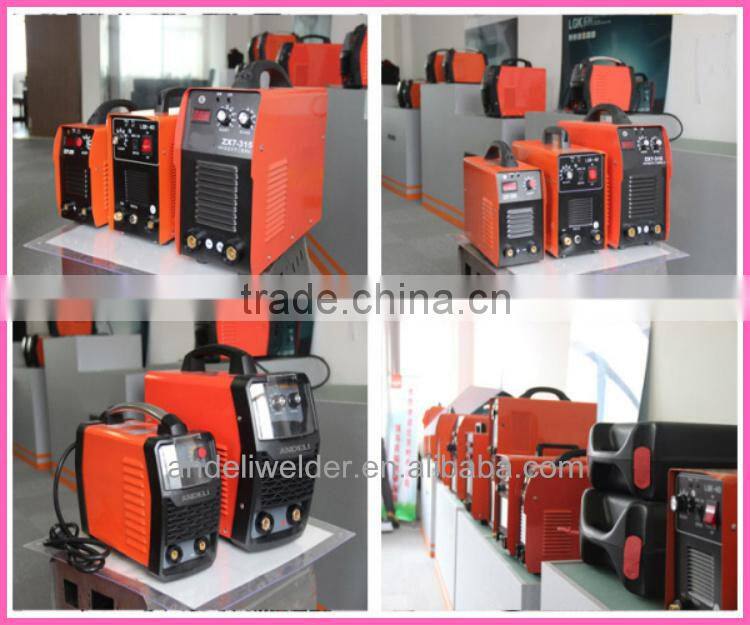

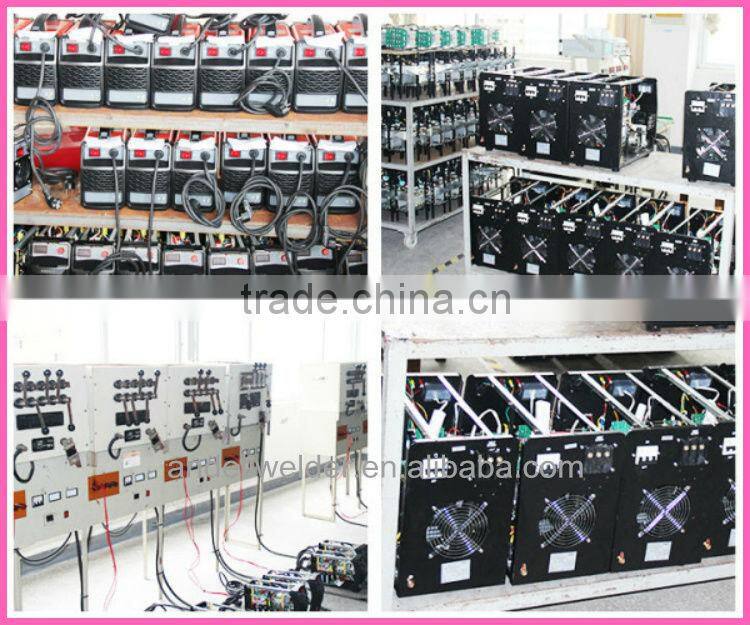

2.Products Show
