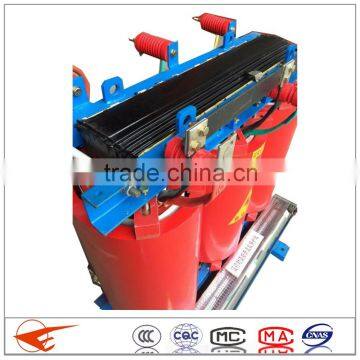

11kV High Voltage Electric Dry-Type Transformer 3 Phase Transformer High Quality
- Nibong/Shanghai
- T/T Credit Card PayPal
You May Like
-
High Quality SCB10 Dry Type Yyn0 Electric Power Transformer 10kv Price
-
High Quality 11kV SCB10 Cast Resin Distribution Transformer Dry Type
-
China Cast Resin 11kv Dry-type Transformer 1MVA Distribution Transformer SCB10 Series
-
China 10kV Indoor Epoxy Resin Dry Transformers Manufacturers
-
High Quality Low Noise Dry-Type Distribution Transformer (SC10-800kVA)
-
China 11kv 200kva Cast Resin Dry Type Electrical Power Transformer Price of SCB10 Manufacturers
Product Details
| Place of Origin | Sichuan, China | Brand Name | COLE | |
| Model Number | SC(B)10 | Usage | Power | |
| Phase | Three | Coil Structure | Toroidal | |
| Coil Number | Autotransformer |
Product Description
Cole Electric Manufacturing Factory
duct advantages
transformer power transformer oil immersed transformer electric transformer
1.Safe, hardly inflammable, no pollution.
2.Lowloss.low noise.high reliablity.
3.Highly moisture-proof ability.
4.Good fire prevention and isolation performance.
5.Maintenance free.
6.High heat resistance.Moisture resistance.
2.SC(B)10 - M series power transformer technical parameters
Model | Capacity | Vector Group | Valtage combination(KV) | No-load loss | Load loss | No-load current | Short circuit resistance | ||
KVA | HV(KV) | HV Tap range(%) | LV(KV) | W | W | % | % | ||
SC10-30 | 30 |
Yyn0 / Dynll |
10 6.3 6 |
±2*2.5% / +3 *2.5% -1 |
0.4 | 190 | 740 | 2.3 |
4.0 |
SC10-50 | 50 | 270 | 1060 | 2.2 | |||||
SC10-80 | 80 | 370 | 1470 | 1.7 | |||||
SC10-100 | 100 | 400 | 1690 | 1.7 | |||||
SC10-125 | 125 | 470 | 1980 | 1.5 | |||||
SC10-160 | 160 | 540 | 2320 | 1.5 | |||||
SC10-200 | 200 | 620 | 2690 | 1.3 | |||||
SC10-250 | 250 | 720 | 3070 | 1.3 | |||||
SC10-315 | 315 | 880 | 3690 | 1.1 | |||||
SC10-400 | 400 | 970 | 4350 | 1.1 | |||||
SC10-500 | 500 | 1160 | 4900 | 1.1 | |||||
SC10-630 | 630 | 1300 | 5960 | 0.9 | |||||
SC10-800 | 800 | 1520 | 6960 | 0.9 |
6.0 | ||||
SC10-1000 | 1000 | 1770 | 8130 | 0.7 | |||||
SC10-1250 | 1250 | 2090 | 9690 | 0.7 | |||||
SC10-1600 | 1600 | 2450 | 11730 | 0.65 | |||||
SC10-2000 | 2000 | 3050 | 1450 | 0.65 | |||||
SC10-2500 | 2500 | 4000 | 17200 | 0.55 | |||||
3.Product Dimension
4.Product Details
Mian Product
More Products To Choose
Brief Introduction
Cole Electric Manufacturing Factory Located in the chengdu cross-strait science and technology industrial development park,Sichuang Province ,With its inception in 2003,Company is mainly specialized in design, development, production, sales below 35 kv level combined transformer, 10 kv power transformer, outdoor vacuum switch and the combined substation as one camp in the name of the company.
