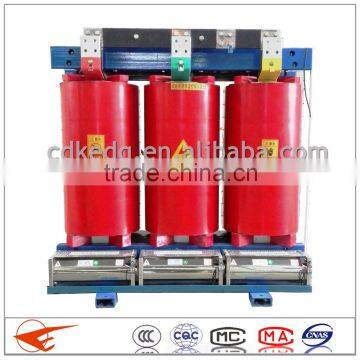

China 10kv 630kva cast resin dry type power transformer manufactrer of SCB10 manufacture
- Nibong/Shanghai
- T/T Credit Card PayPal
You May Like
-
SCB10 series 10/0.4kv 160kva epoxy resin cast dry-type transformers with amorphous metal
-
SCB10 series 10kv 0.4kv 630kva epoxy resin cast dry-type transformers high quality
-
Insulated Dry Type 10kv 3 Phase Power Usage Transformer high quality
-
three phase Cast Resin Dry Type Transformer 11KV
-
400kVA 630 kVA 3C Approved Toroidal Dry Type Distribution Power Transformer Manufacturer
-
made in China SCB10 Series 11kv Dry Type power transformer price
Product Details
| Place of Origin | Sichuan, China | Brand Name | COLE | |
| Model Number | SC(B)10 | Usage | Power | |
| Phase | Three | Coil Structure | Toroidal | |
| Coil Number | Autotransformer |
Product Description
Cole Electric Manufacturing Factory
duct advantages
transformer power transformer oil immersed transformer electric transformer
1.Safe, hardly inflammable, no pollution.
2.Lowloss.low noise.high reliablity.
3.Highly moisture-proof ability.
4.Good fire prevention and isolation performance.
5.Maintenance free.
6.High heat resistance.Moisture resistance.
2.SC(B)10 - M series power transformer technical parameters
Model | Capacity | Vector Group | Valtage combination(KV) | No-load loss | Load loss | No-load current | Short circuit resistance | ||
KVA | HV(KV) | HV Tap range(%) | LV(KV) | W | W | % | % | ||
SC10-30 | 30 |
Yyn0 / Dynll |
10 6.3 6 |
±2*2.5% / +3 *2.5% -1 |
0.4 | 190 | 740 | 2.3 |
4.0 |
SC10-50 | 50 | 270 | 1060 | 2.2 | |||||
SC10-80 | 80 | 370 | 1470 | 1.7 | |||||
SC10-100 | 100 | 400 | 1690 | 1.7 | |||||
SC10-125 | 125 | 470 | 1980 | 1.5 | |||||
SC10-160 | 160 | 540 | 2320 | 1.5 | |||||
SC10-200 | 200 | 620 | 2690 | 1.3 | |||||
SC10-250 | 250 | 720 | 3070 | 1.3 | |||||
SC10-315 | 315 | 880 | 3690 | 1.1 | |||||
SC10-400 | 400 | 970 | 4350 | 1.1 | |||||
SC10-500 | 500 | 1160 | 4900 | 1.1 | |||||
SC10-630 | 630 | 1300 | 5960 | 0.9 | |||||
SC10-800 | 800 | 1520 | 6960 | 0.9 |
6.0 | ||||
SC10-1000 | 1000 | 1770 | 8130 | 0.7 | |||||
SC10-1250 | 1250 | 2090 | 9690 | 0.7 | |||||
SC10-1600 | 1600 | 2450 | 11730 | 0.65 | |||||
SC10-2000 | 2000 | 3050 | 1450 | 0.65 | |||||
SC10-2500 | 2500 | 4000 | 17200 | 0.55 | |||||
3.Product Dimension
4.Product Details
Mian Product
More Products To Choose
Brief Introduction
Cole Electric Manufacturing Factory Located in the chengdu cross-strait science and technology industrial development park,Sichuang Province ,With its inception in 2003,Company is mainly specialized in design, development, production, sales below 35 kv level combined transformer, 10 kv power transformer, outdoor vacuum switch and the combined substation as one camp in the name of the company.
