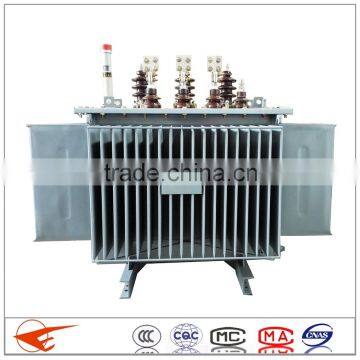

china high quality high power 10KV oil immersed transformer 160KVA

FOB Price

USD $5,000 - $18,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Sichuan, China	Brand Name	COLE
Model Number	S11-M	Usage	Other, Power, step up transformer
Phase	Three	Coil Structure	Toroidal
Coil Number	Autotransformer

Cole Electric Manufacturing Factory

Product Description

duct advantages

transformer power transformer oil immersed transformer electric transformer

1.Safe, hardly inflammable, no pollution.

2.Lowloss.low noise.high reliablity.

3.Highly moisture-proof ability.

4.Have good electric performance and heat dissipation function.

5.Reliability:All in-service product have no damages or oil leakage occurred.

2.S11 - M series power transformer technical parameters

Model	Capacity (KVA)	Rated voltage		Loss		Short circuit impedance (%)	No-load current(%)	Vector Group	Weight(kg)			Overall dimensions(mm) Long(L)Wide(W)Hight(H)
		HV(KV)	LV(KV)	No-load	Load				Body	Oil	Total
S11M-30/10	30	6 6.3 10 10.5 11	0.4	100	630	4	2.1	D/ynll	190	65	320	760540930
S11M-50/10	50			130	910	4	2.0		250	100	450	8505501010
S11M-63/10	63			150	1090	4	1.9		275	110	480	9305501030
S11M-80/10	80			180	1310	4	1.8		280	130	500	9655851070
S11M-100/10	100			200	1580	4	1.6		370	140	600	8756301120
S11M-125/10	125			240	1890	4	1.5		420	160	600	9006501150
S11M-160/10	160			280	2310	4	1.5		485	175	750	10556801120
S11M-200/10	200			340	2730	4	1.3		510	190	830	141010001530
S11M-250/10	250			400	3200	4	1.2		650	220	1000	11557601300
S11M-315/10	315			480	3830	4	1.1		700	230	1100	12908451345
S11M-400/10	400			570	4520	4	1.0		900	275	1365	13208701430
S11M-500/10	500			680	5410	4	1.0		980	300	1500	13858701430
S11M-630/10	630			810	6200	4.5	0.9		1200	370	1800	13858951510
S11M-800/10	800			980	7500	4.5	0.8		1420	410	2150	15259701565
S11M-1000/10	1000			1150	10300	4.5	0.7		1700	640	2800	165010901715
S11M-1250/10	1250			1360	12000	4.5	0.6		1950	710	3050	176512101760
S11M-1600/10	1600			1640	14500	4.5	0.6		2300	820	3900	196013401950

3.Using conditions

Ambient temperature:
Highest air temperature +40 °C

Lowest air temperature -25°C

Highest daily average air temperature +30 °C

Highest annual average air temperature +20 °
