Insulated Dry Type 10kv 3 Phase Power Usage Transformer High Quality
- Nibong/Shanghai
- T/T Credit Card PayPal
You May Like
-
Three Phase Cast Resin Dry Type Transformer 11KV
-
400kVA 630 KVA 3C Approved Toroidal Dry Type Distribution Power Transformer Manufacturer
-
Made in China SCB10 Series 11kv Dry Type Power Transformer Price
-
SC(B) Series High Power 10kv Cast Resin Dry Type Power Transformer Price
-
China Distributor SCB10 Resin Insulation Dry-type Power KVA Transformer
-
High and Low Voltage Complete Sets of Equipment High Quality
Product Details
| Place of Origin | Sichuan, China | Brand Name | COLE | |
| Model Number | SC(B)10 | Usage | Power | |
| Phase | Three | Coil Structure | Toroidal | |
| Coil Number | Autotransformer |
Product Description
Cole Electric Manufacturing Factory
duct advantages
transformer power transformer oil immersed transformer electric transformer
1.Safe, hardly inflammable, no pollution.
2.Lowloss.low noise.high reliablity.
3.Highly moisture-proof ability.
4.Good fire prevention and isolation performance.
5.Maintenance free.
6.High heat resistance.Moisture resistance.
2.SC(B)10 - M series power transformer technical parameters
Model | Capacity | Vector Group | Valtage combination(KV) | No-load loss | Load loss | No-load current | Short circuit resistance | ||
KVA | HV(KV) | HV Tap range(%) | LV(KV) | W | W | % | % | ||
SC10-30 | 30 |
Yyn0 / Dynll |
10 6.3 6 |
±2*2.5% / +3 *2.5% -1 |
0.4 | 190 | 740 | 2.3 |
4.0 |
SC10-50 | 50 | 270 | 1060 | 2.2 | |||||
SC10-80 | 80 | 370 | 1470 | 1.7 | |||||
SC10-100 | 100 | 400 | 1690 | 1.7 | |||||
SC10-125 | 125 | 470 | 1980 | 1.5 | |||||
SC10-160 | 160 | 540 | 2320 | 1.5 | |||||
SC10-200 | 200 | 620 | 2690 | 1.3 | |||||
SC10-250 | 250 | 720 | 3070 | 1.3 | |||||
SC10-315 | 315 | 880 | 3690 | 1.1 | |||||
SC10-400 | 400 | 970 | 4350 | 1.1 | |||||
SC10-500 | 500 | 1160 | 4900 | 1.1 | |||||
SC10-630 | 630 | 1300 | 5960 | 0.9 | |||||
SC10-800 | 800 | 1520 | 6960 | 0.9 |
6.0 | ||||
SC10-1000 | 1000 | 1770 | 8130 | 0.7 | |||||
SC10-1250 | 1250 | 2090 | 9690 | 0.7 | |||||
SC10-1600 | 1600 | 2450 | 11730 | 0.65 | |||||
SC10-2000 | 2000 | 3050 | 1450 | 0.65 | |||||
SC10-2500 | 2500 | 4000 | 17200 | 0.55 | |||||

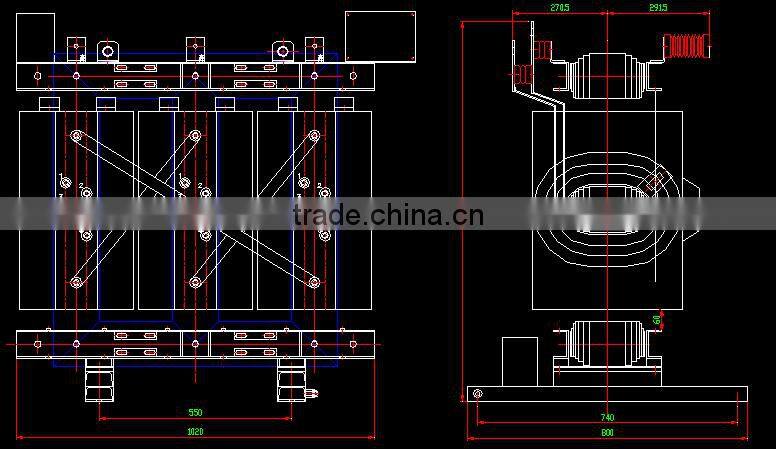

3.Product Dimension

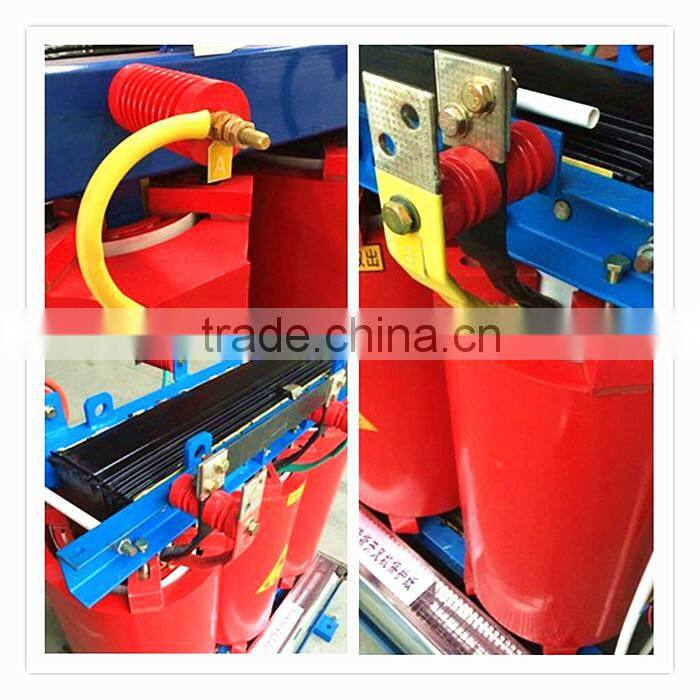

4.Product Details
Mian Product

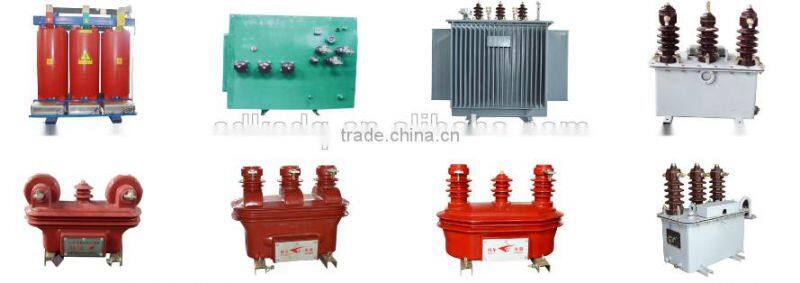

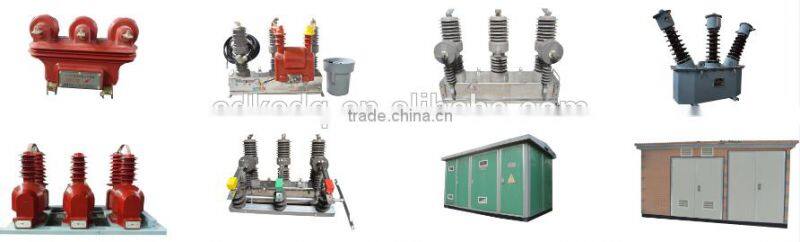

More Products To Choose
Brief Introduction
Cole Electric Manufacturing Factory Located in the chengdu cross-strait science and technology industrial development park,Sichuang Province ,With its inception in 2003,Company is mainly specialized in design, development, production, sales below 35 kv level combined transformer, 10 kv power transformer, outdoor vacuum switch and the combined substation as one camp in the name of the company.

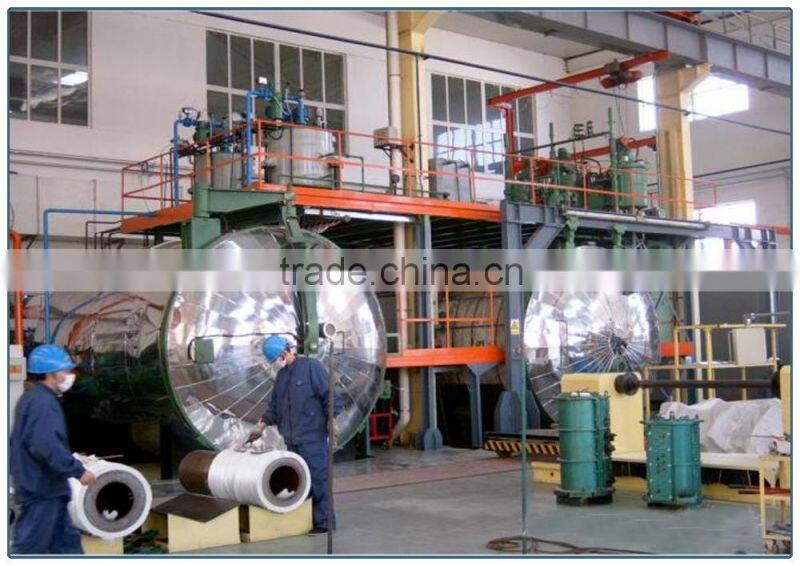

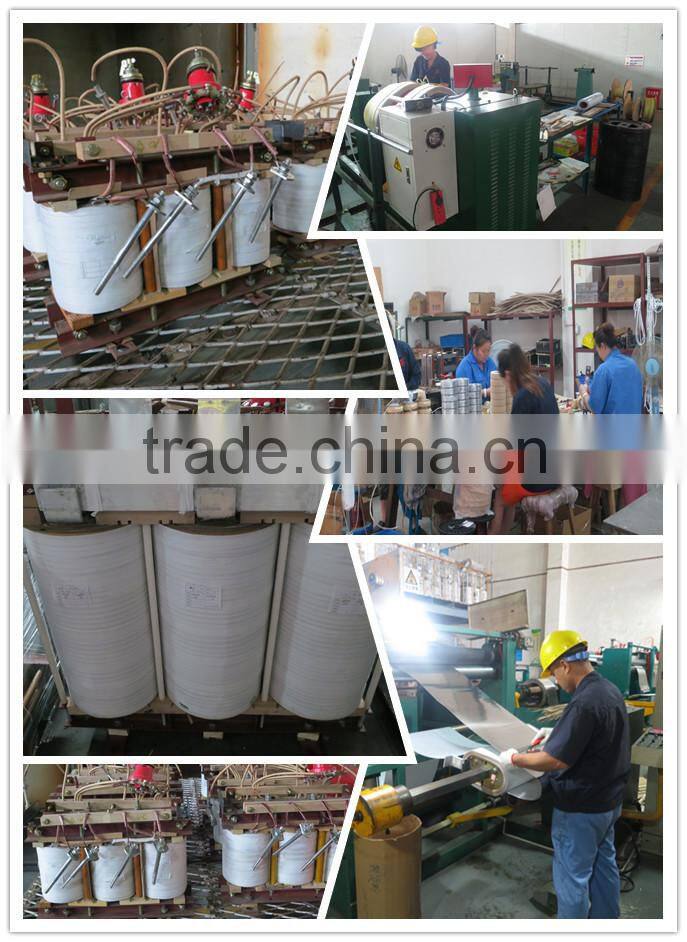

Our Workshop

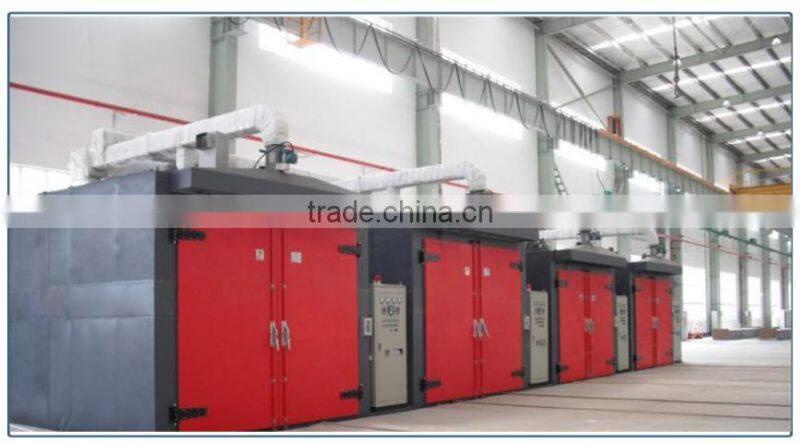

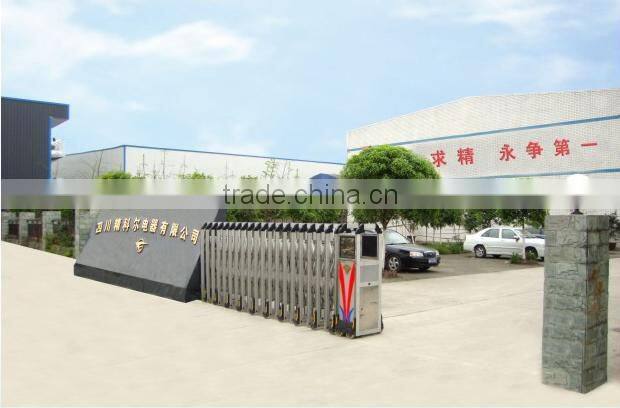

Our Factory
