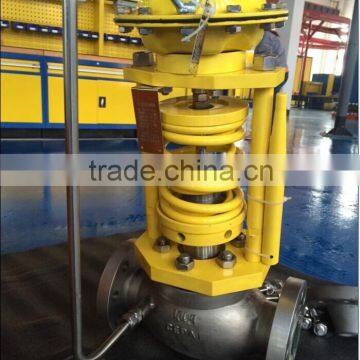

Self actuate pressure control valve
US$ 1,000 - 1,000
/ Set
2 Sets(Min. Order)
- FOB Shanghai
- T/T L/C D/P D/A
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Control | |
| Pressure | Medium Pressure | Power | Other | |
| Material | Casting | Temperature of Media | Medium Temperature | |
| Media | Gas | Place of Origin | Jiangsu, China | |
| Model Number | ZZYP | Brand Name | CEPAI |
Product Description
Technical specifications
| Body Type: | Single seated, globe type |
| Size: | DN15~DN250 (3/4" to 10") |
| Pressure Class: | 1.6, 4.0, 6.4 Mpa; |
| ANSI 150, ANSI 300, ANSI 600 | |
| Characteristics: | Quick open |
| Body Materials: | WCB, CF8M, CF3M, CF3 |
| Trim materials: | Stainless Steel |
| Temp range: | - 5°C to ~ +70°C |
| Connection: | Flanged, Socket welding, Butt welding |
| Gland packing: | PTFE, Braided PTFE, Grafoil |
| Actuator: | Pneumatic diaphragm actuator, Piston |
| Accuracy: | Within ±5% |
