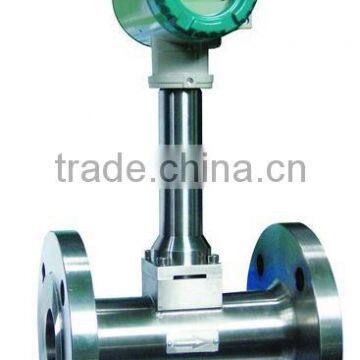

vortex flow meter diameter80
US$ 580 - 2,000
/ Piece
1 Piece(Min. Order)
- shanghai jiangsu
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | CEPAI | |
| Model Number | LUGB Serises |
Product Description
Vortex flow meter has little pressure loss, broad span range and high accuracy. It is not under influence of density, pressure, temperature and viscocity when measuring volumetric flow. It has no movable mechanical parts with high reliability and little maintenance.
Execution standard:Vortex Flow Sensor (JJG1029-2007
Meter Diameter(mm):DN15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 200, 250, 300
Nominal Pressure:1.6MPa, 2.5MPa, 4.0MPa ( customized)
Accuracy/Range ratio:Liquid: ±1.0%R; Gas & Steam: ±1.5%R
Sensor Material:SS304, SS316(L)
Ambient Conditions:Medium temperature: -40℃~ +70℃/+250℃/ +350℃
Atmospheric pressure: 86Kpa~106Kpa
Ambient temperature: -20℃~+60℃
Relative humidity: 5%~90%
Electrical connector:Standard: Hirschman plug or 3-core wire cable;Explosion-proof : M20*1.5 thread
Explosion -proof class:ExiaIICT5 or ExdIIBT6
Protection class:IP65 or higher(customized)
High quality
test system
High quality
test system
High quality
test system
Factory
Our Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
Packing Details : Packing, solid bicycle saddle, 50pcs/carton
Delivery Details : 3-30 days after order of Solid bicycle tire tubes
1. Special logistics packaging
2. Suitable carton size
3. Shock bubble film
4. Professional placement
5. Professional shock
6. Complete package
Favorable Comment
High quality
Favorable Comment
Good price
Favorable Comment
Full of faith
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
