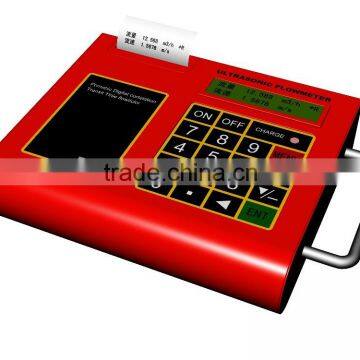

Portable Ultrasonic Flow Meter

FOB Price

USD $500 - $3,000 / Set

1 Set(Min.Order)

Supply Ability 800 Set / Sets per Month
Port FOB SHANGHAI
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	CEPAI
Model Number	CPS-2000H

Product Description

CPS-2000H Feature:

1. Several types transducer for selection, measuring pipe size from
DN15mm to DN6000mm
2. Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy:

better than ±1%

3. Non-intrusive, clamp-on transducer, no pressure drop, no pipe
disturbance.

4. Chinese & English display, easy to operate.

5. Built-in rechargeable Ni-MH rechargeable battery, provide over 20
hours of continuous operation

6. Built-in mini thermal printer with instant and timing print function

7. Uplink over 20 measuring data to computer or internet

General Specifications

Items	Specifications
Main unit	2 line x 20 character LCD with backlight Working temperature: -25--60°C
	Mini thermal printer with 24 line character output
	4x4+2 pushbutton keypad
	RS-485 interface for networking
Ultrasonic Transducer options	TS-1: small size transducer (magnetic) for pipe size: DN15-100mm, liquid temperature ≤110°C
	TM-1:medium size transducer (magnetic) for pipe size:DN50-1000mm, liquid temperature ≤110°C Ultrasonic Transducer options
	TL-1: Large size transducer (magnetic) for pipe size: DN300-6000mm, liquid temperature ≤110°C
Temperature Transducer	Three wire pt100 platinic resistance, measuring range :-50 -----180°C measuring accuracy:100°C, 0.8°C , the temperature difference ≤0.1°C
Liquid types	Water, sea water, industrial sewage, acid and alkali liquid, various oils etc. liquid which can transmit sound wave.
Flow velocity range	0- ±30m/s
Accuracy	Better than ±1%
Power Supply	Built-in rechargeable Ni-MH battery (for 20 hours operation) or AC 220V
Power Consumption	1.5W
Charging	Intelligent charging with AC 220V; After charging sufficiently, it automatically stop and display green light
Weight	Net weight: 2.5kg (main unit)
Remarks	With a high strength carrying case suitable for normal and harsh environment
