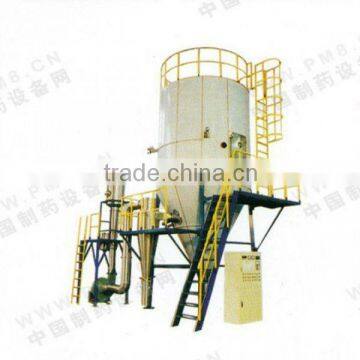

QPG Series air stream spray drier/air flow dryer machine

FOB Price

USD $1,000 - $999,999,999 / Set

1 Set(Min. Order)

Port shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Spray Drying Equipment		Place of Origin	Jiangsu, China
Brand Name	yeping		Model Number	QPG

Product Description

Specifications

QPG Series air stream spray drier
1.Simple operation
2.Convenient maintenance
3.Low operation price.

QPG Series air stream type spray dryer

Product Description/ Spray Drier

Principle Spray Drier
The clean air is heated and entered into the drying tower, the raw material inside the tower is atomization and becomes mini liquid drops through nozzles of two or three liquids. The raw materials carry out heat exchange with the hot air rapidly to evaporate the moisture (solvent ) in the raw materials. The moisture or solvent is discharged accompany with hot air, then the powder product is got.
Features Spray Drier
It is better for raw materials that are large inviscosity and grease and paste. The other equipment can not replace it.
More varieties and wipe application in drying with lower temperature.
The nozzle is simple in structure, convenient in maintenance and lower cost in operation.

Spray Drier
Technical parameters

ParametersModel		5	25	50	100	150	200
Amount of Evaporation Kg/h	t=150°C~90°C	1.5	7.5	15	30	45	60
	t=200°C~100°C	2.5	12.5	25	50	75	100
	t=250°C~100°C	3.75	18.75	37.5	75	112.5	150
	t=300°C~100°C	5	25	50	100	150	200
	t=350°C~110°C	6	30	60	120	200	240
compressed air m³/nin		0.9	0.9	1.1	1.5	2.7	3.4
presure of air Mpa		0.4	0.6			0.7
heat resource		,+
consumption of heating 10⁴ KCal/h		1	5	10	20	30	40
power kw		0.75	4	7.5	11	15	18.5

Spray Drier/
