SZG 1000L Double Conical Rotary Vacuum Dryer 6 rpm 1300kg
- shanghai
- T/T
You May Like
-
SZG 750L Double Conical Rotary Vacuum Dryer 6 rpm 1200kg
-
SZG 500L Double Conical Rotary Vacuum Dryer 6 rpm 1100kg
-
SZG 350L Double Conical Rotary Vacuum Dryer 6 rpm 900kg
-
SZG 200L Double Conical Rotary Vacuum Dryer 6 rpm 700kg
-
SZG 100L Double Conical Rotary Vacuum Dryer 6 rpm 550KG
-
YZG-1000 Cylinder Vacuum Dryer With 6 Baking Tray 800KG
Product Details
| Condition | New | Type | Other, Vacuum Drying Equipment, Rotary Vacuum Dryer | |
| Place of Origin | Jiangsu, China | Brand Name | YEGAN | |
| Model Number | SZG | Power(W) | 0.75-7.5KW | |
| Weight | 550-4000KG | Certification | CE,ISO | |
| Warranty | 1 YEAR | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Vacuum Dryer1save energy
2simple operation
3high efficiency

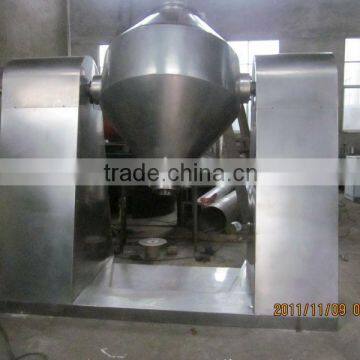

SZG 1000L Double Conical Rotary Vacuum Dryer 6 rpm 1300kg
This vacuum dryer can be widely used for drying or mixing powder or granule materials in pharmaceutical, chemical, foodstuff industries etc. It is especially suitable for the following materials:
Heat sensitive materials
Materials that is easy to oxidize and have dangerous
Materials that solvent and toxic gases are need to recover
Materials that have special requirement of crystal form.
Materials that have special requirement for the content of residual volatile.
The heat source are : steam, hot water and conduction oil.
Model | 100 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 3500 | 4500 | 5000 |
Volume inside the tank(L) | 100 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 3500 | 4500 | 5000 |
Loading capacity(L) | ≤50 | ≤175 | ≤250 | ≤375 | ≤500 | ≤750 | ≤1000 | ≤1750 | ≤2250 | ≤2500 |
Revolution(rpm) | 3-13 | 6 | 5 | 4 | 4 | 4 | ||||
Power of motor(kw) | 0.75 | 1.1 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 |
Occupied area L×W | 2160*800 | 2160*800 | 2350*800 | 2560*1000 | 2860*1300 | 3060*1300 | 3260*1400 | 3760*1800 | 3960*2000 | 4400*2500 |
Rotating height (mm) | 1750 | 2100 | 2250 | 2490 | 2800 | 2940 | 2990 | 3490 | 4100 | 4200 |
Design pressure inside the tank(Mpa) | -0.1-0.15 | |||||||||
Design pressure of jacket (Mpa) | ≤0.3 Mpa | |||||||||
Working temperature() | (85 in the tank ≤85) tank≤140(in the tank ≤140) | |||||||||
When condenser is used, model and power of vacuum pump | 2X-15A | 2X-15A | 2X-30A | 2X-30A | 2X-70A | JZJX300-87KW | JZJX300-49.5KW | JZJX600-811KW | JZJX600-420.5KW | JZJX600-422KW |
When condenser is not used, model and power of vacuum pump | SK-0.41.5KW | SK-0.41.5KW | SK-0.82.2KW | SK-2.7B4KW | SK-2.7B4KW | SK-35.5KW | SK-611KW | SK-611KW | SK-915KW | SK-1018.5KW |
Weight (kg) | 800 | 1100 | 1200 | 1500 | 2800 | 3300 | 3600 | 6400 | 7500 | 8600 |
1.Accept OEM service
2.Engineers available to service machinery overseas
