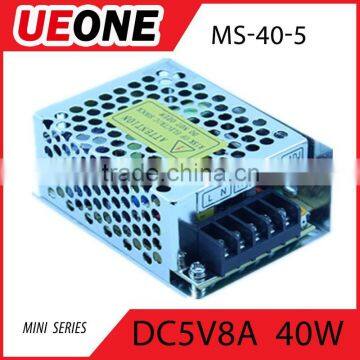

s-40-5 MINI series single output 5v8a switching power supply

FOB Price

USD $3.5 - $7.2 / Piece

1 Piece(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port ningbo/shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	ueone
Model Number	ms-40-5	Output Power	1 - 50W
Output Type	Single	Input Voltage	220V
Output Voltage	5v	Output Frequency	dc
Output Current	8a

Product Description

Welcome,my friend! Glad to introduce 40w 5v 8a switching power supply CE factory price S-40-5 . If you have any questions, please don't hesitate to ask me.

s-40-5 MINI series single output 5v8a switching power supply

1. AC input range 86vac to 264vac 50/60HZ for the whole world

2. Protections: Short circuit / Overload / Over voltage

3. 100% full load burn-in test

4. Low cost, high reliability

5. 24 months warranty

6.Mini size

MODEL SPECIFICATION	S-40-5	S-40-12	S-40-15	S-40-24
OUTPUT DC VOLTAGE	5V	12V	15V	24V
RATED CURRENT	8A	3.5A	2.8A	1.8A
OUTPUT CURRENT	0-8A	0-3.5A	0-2.8A	0-1.8A
RIPPLE & NOISE	75mVp-p	100mVp-p	100mVp-p	100mVp-p
LINE REGULATION	±0.5%	±0.5%	±0.5%	±0.5%
LOAD REGULATION	±1%	±0.5%	±0.5%	±0.5%
RATED POWER	40W	42W	42W	43W
EFFICIENCY	70%	76%	78%	78%
VOLTAGE ADJ. RANGE	±10,-5%	±10%	±10%	±10%
INPUT VOLTAGE RANGE	85-132VAC/170-264VAC selected by switch
INPUT AC CURRENT	0.85A/115V 0.45A/230V
INRUSH CURRENT	COLD START 18A/115V 36A/230V
LEAKAGE CURRENT	<1mA/240VAC
OVER LOAD PROTECTION	105 ~ 150% rated output power, fold back current limiting, auto-recovery
TEMP. COEFFICIENT	±0.03%(050)
SETUP, RISE, HOLD TIME	300ms,100ms,30ms
VIBRATION	10500Hz,2G 10min./1 cycle , period for 60min, each along X, Y, Z axes
WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC
ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
WORKING TEMP. HUMIDITY	-10+60,20%90%RH
STORAGE TEMP., HUMIDITY	-20+85,10%95RH
DIMENSION	1299838mm
WEIGHT	0.4Kgs
SAFETY STANDARDS	UL1012
EMC	FCC PART15 J CONDUCTION CLASS B
