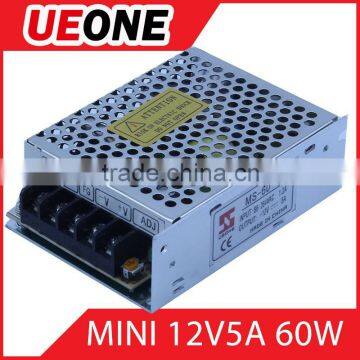

Metal case 12v 5a LED switching power supply 60w

Model

Specification

MS-60-5

MS-60-12

MS-60-15

MS-60-24

DC Output voltage

5V

12V

15V

24V

Output voltage range(Note:2)

±2%

±1%

±1%

±1%

Rated output current

12A

5A

4A

2.5A

Output current range

0~12A

0~5A

0~4A

0~2.5A

Wave and noise(Note:3)

100mVp-p

75mVp-p

75mVp-p

75mVp-p

Inlet stability(Note:4)

±0.5%

±0.5%

±0.5%

±0.5%

Load stability(Note:5)

±1%

±0.5%

±0.5%

±0.5%

DC output power

60W

60W

60W

60W

Efficiency

73%

78%

78%

82%

Adjustable range for DC voltage

+10,-5%

±10%

±10%

±10%

AC input voltage range

85~132VAC/170~264VAC selected by switch 47~63Hz,240~370VDC

Input current

2A/115V 1A/230V

AC Inrush current

Cold-start current 30A/115V 60A/230V

Leakage current

<3.5mA/240VAC

Overload protection

105%-150% Type: pulsing hiccup shutdown Reset: auto recovery

Temperature coefficient

±0.03%/°C(0~50°C)

Setup, rise, hold up time

800ms, 50ms, 10ms/150V 300ms,50ms,80ms/230v

Vibration

10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

Working temperature and humidity

-10°C~+60°C(Refer to output load derating curve),20%~90%RH

Store temperature and humidity

-20°C~+85°C,10%~95%RH

Overall dimension

111X78X36mm (L*W*H)

Weight

0.55kgS

Safety standards

UL 1012 TUV EN6050(IEC,ul1950)Approved

EMC standards

CISPR22(EN55022),IEC801-2,3,4 IEC555-2Verification
