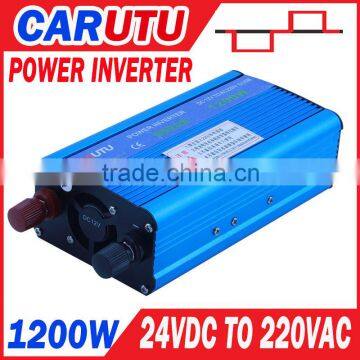

24VDC to 220VAC 1200w modified solar power inverter inverter

FOB Price

Negotiable

1 (Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Features :

·Small size , light weight and potable

·Easy to use and high efficiency

·Green LED indicates power on,Red LED indicates wrong

·Input & output isolation

·Muti-protection function

·USB output port: 5V 500mA

· Built-in Cooling Fan

Protection Features:

·Low voltage protection

·Over voltage protection

·Overload protection

·Over temperature protection

·Short circuit protection

Model		UT-1200
Input	DC Voltage	12V or 24V or 48V or 110V
	Voltage Range	10-15VDC or 21-30VDC or 42-60VDC or 92-132VDC
	No Load Current Draw	<0.2A
	Efficiency	> 90%
	DC Connector	Cables With Clips or Car Adaptor
Output	AC Voltage	100/110/120VAC or 220/230/240 VAC
	Continuous Power	100W
	Max Power	1200W
	Surge Power	1400W
	Waveform	modified sine wave power inverter
	Frequency	50Hz or 60Hz ±2
	THD	<3% (Linear load)
	Output sockets	AC sockets/ USB 5V 500mA (optional)
Protection	Low Voltage Alarm	10DC±0.5V or 20.5DC±1V or 44VDC±1V or 100VDC±1V
	Low Voltage Shut Down	9.5DC±0.5V or 19.5DC±1V or 42VDC±1V or 96VDC±5V
	Over Load	Shut Off Output
	Over Voltage Shut Down	15.5V or 30.5V or 61.2V or 120V
	Over Thermal	Shut Off Output Automatically
	Fuses	blade fuse
	Start	Soft Start
	Cooling Ways	Intelligent cooling fan
Environment	Working Temperature	Between -10°C and +50°C
	Working Humidity	20%~90%RH non-condensing
	Storage Temperature	Between -30°C and +70°C
Package	Machine Size(mm)	1909555MM
	Packing Size(mm)	200X150X75
	Net Weight(g)	820
	Gross Weight(kg)	1.18
	Packing Mode	Carton
