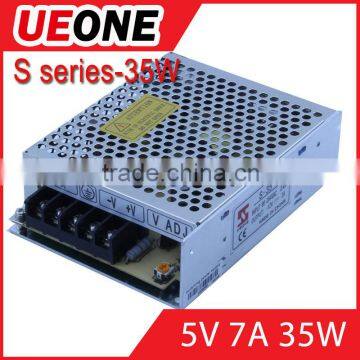

Hot sale 35w led power supply CE factory price 5V 7A

Model)

(Specification )

S-35-5

S-35-12

S-35-15

S-35-24

DC output voltage

5V

12V

15V

24V

Output voltage range(Note:2)

±2%

±1%

±1%

±1%

Rated output current

7A

3A

2.4A

1.5A

Output current range

0-7A

0-3A

0-2.4A

0-1.5A

Wave and noise(Note:3)

100mVp-p

75mVp-p

75mVp-p

50mVp-p

Inlet stability(Note:4)

±0.5%

±0.5%

±0.5%

±0.5%

Load stability(Note:5)

±1%

±0.5%

±0.5%

±0.5%

DC output power

35W

36W

36W

36W

Efficiency

70%

76%

78%

78%

Adjustable range for DC voltage

+10,-5%

±10%

±10%

±10%

AC input voltage range

85~132VAC/170~264VA selected by switch 47~63Hz,240~370VDC

Input current

0.8A/115V 0.45A/230V

AC Inrush current

Cold-start current 18A/115V 36A/230V

Leakage current

<0.5mA/240VAC

Overload protection

105%-150% Type: pulsing hiccup shutdown Reset: auto recovery

Over-voltage protection

…………

High-temperature protection

…………

Temperature coefficient

±0.03%/°C(0~50°C)

Setup, rise, hold up time

200ms,100ms,30ms

Vibration

10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes

Withstand voltage

Input and output internal:1.5KvAC,Input and enclosure:l.5KvAC,Output and enclosure:0.5KvA

Isolation resistance

Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ

Working temperature and humidity

-10°C~+60°C(Refer to output derating curve),20%~90%RH

Store temperature and humidity

-20°C~+85°C,10%~95%RH

Overall dimension

129X98X38mm

Weight

0.4kgS

Safety standards

Meet UL 1012 requirement(Not apply for the mark)

EMC standards

Meet FCC PART15 J Conduction class B
