DC3.3v 3a switching power supply DC POWER SUPPLY

FOB Price

USD $3.1 - $4.2 / Piece

1 Piece(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port ningbo/shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	ueone
Model Number	ms-10-3.3	Output Power	1 - 50W
Output Type	Single	Input Voltage	220V
Output Voltage	3.3v	Output Frequency	dc
Output Current	3a

Product Description

Welcome,my friend! Glad to introduce 10w 3.3v 3a switching power supply CE factory price MS-10-3.3 . If you have any questions, please don't hesitate to ask me.

Features:

1. AC input range 86vac to 264vac 50/60HZ for the whole world

2. Protections: Short circuit / Overload / Over voltage

3. 100% full load burn-in test

4. Low cost, high reliability

5. 24 months warranty

6.Mini size

Product details

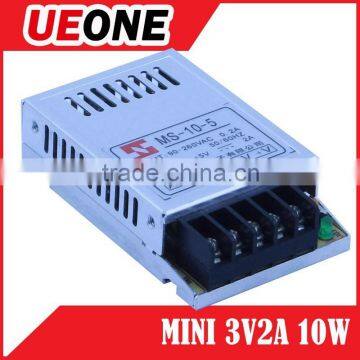

1.Product appearance pictures of 10w 3v 2a switching power supply CE factory price MS-10-3

Model	MS-10-3.3	MS-10 -7.5	MS-10 -12	MS-10 -15	MS-10 -24	MS-10 -48
Specification	MS-10-3.3	MS-10 -7.5	MS-10 -12	MS-10 -15	MS-10 -24	MS-10 -48
		7.5V	12V	15V	24V	48V
Output voltage range(Note:2)	±2%	±1%	±1%	±1%	±1%	±1%
Rated output current	3A	1.3A	0.8A	0.7A	0.42A	0.21A
Output current range	0~3A	0~1.3A	0~0.8A	0~0.7A	0~0.42A	0~2.5A
Wave and noise(Note:3)	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability(Note:4)	±0.5%	±0.5%	±0.3%	±0.3%	±0.2%	±0.2%
Load stability(Note:5)	±0.5%	±0.5%	±0.3%	±0.3%	±0.2%	±0.2%
DC output power	10W	10W	10W	10W	10W	120W
Efficiency	76%	78%	80%	81%	83%	84%
Adjustable range for DC voltage	4.75-5.5V	6.75-8.25V	10.8-13.2V	13.5-16.5V	21.6-26.4V	43.2-52.8V
AC input voltage range	85~132VAC/170~264VAC selected by switch 47~63Hz,248~370VDC
Input current	2.6A/115V 1.3A/230V
AC Inrush current	Cold-start current 15A/115V 30A/230V
Leakage current	<1mA/240VAC
Overload protection	105 ~ 150% Protection type :pulsing hiccup shutdown Reset: auto recovery.
Temperature coefficient	±0.03%/°C(0~50°C)
Setup, rise, hold up time	200ms, 100ms, 30ms
Vibration	10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes
Withstand voltage	Input and output internal:1.5KvAC,Input and enclosure:l.5KvAC,Output and enclosure:0.5KvAC
Isolation resistance	Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ
Working temperature and humidity	-10°C~+60°C(Refer to output load derating curve),20%~90%RH
Store temperature and humidity	-20°C~+85°C,10%~95%RH
Overall dimension	*79X49X20mm (LWH)*
Weight	0.2kg
Safety standards	Meet UL1012 requirement(Not apply for the mark)
EMC standards	Meet FCC PART 15J Conduction class B
Note	1. The parameter under the testing condition : 230vAC input ,rated load,25°C70% RH. Temperature.
	2. Tolerance the setting tolerance, circuit stability and load stability.(Note:5).
	3. Wave test: adopting "A12"double wire for 20MHz, and 0.1 UF&47UF capacitor short-circuit for interrupting.
	4. Inlet voltage stability test : the lowest voltage will be up to the highest voltage when the circuit overload.
	5. Load stability test: The load is from 0% to 100%.
