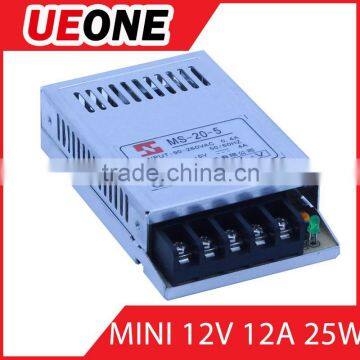

UEONE ultrathin 25W led switch power supply 25w2a 12v switching power supply

MODEL

MS-25-5

MS-25-12

MS-25-24

    OUTPUT

DC VOLTAGE

5V

12V

24V

RATED CURRENT

5A

2A

1A

CURRENT RANGE

0-5A

0-2A

0-1A

RATED POWER

25W

25W

25W

RIPPLE & NOISE (max.) Note.2

50mVp-p

100mVp-p

100mVp-p

VOLTAGE ADJ. RANGE

4.75 ~ 5.5V

10.8 ~ 13.2V

21.6 ~ 26.4V

VOLTAGE TOLERANCE Note.3

±2.0%

±1.0%

± 1.0%

LINE REGULATION

±0.5%

± 0.5%

± 0.5%

LOAD REGULATION

±1.0%

± 0.5%

± 0.5%

SETUP, RISE TIME

200ms 100ms

HOLD UP TIME (Typ.)

30ms

     INPUT

VOLTAGE RANGE

85 ~ 264VAC 120 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY(Typ.)

65%

68%

72%

AC CURRENT (Typ.)

0.6A/115VAC 0.35A/230VAC

INRUSH CURRENT (Typ.)

COLD START 13A/115VAC  25A/230VAC

LEAKAGE CURRENT

<0.75mA/240VAC

 PROTECTION

OVERLOAD

105 ~ 150% rated output power

Protection type :Hiccup mode, recovers automatically after fault condition is removed.

ENVIRONMENT

WORKING TEMP.

-10 ~ +60°C (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-20 ~ +85°C, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/°C (0 ~ 50°C)

VIBRATION

10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes

   SAFETY &

      EMC

    (Note 4)

SAFETY STANDARDS

UL1012, TUV EN60950-1 approved

WITHSTAND VOLTAGE

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH

EMC EMISSION

Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5, EN55024, light industry level, criteria A

    OTHERS

MTBF

522.1K hrs min. MIL-HDBK-217F (25) °C

DIMENSION

96*59*28mm (L*W*H)

PACKING

0.076Kg; 45pcs/15Kg/0.9CUFT

      NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.

2.  Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3.  Tolerance : includes set up tolerance, line regulation and load regulation.
