Home > Products > 5. Electric pallet Truck > NPHD High Lift Pallet Truck With CE Certificate
NPHD High Lift Pallet Truck With CE Certificate
- SHANGHAI
 - T/T L/C D/P D/A Credit Card PayPal

You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | SINOLIFT | |
| Model Number | NPHD High Lift Pallet Truck with CE Certificate | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
NPHD High Lift Pallet Truck with CE Certificate
1)Features
1.Powered by 12 voltage battery, driven by a good effective pump station
2.Used as both a work table and pallet truck
3.10-12 seconds pumping from the bottom to the top
4.Safety overload system prevents the truck from being used beyond its rated capacity
5.The handle automatically returns to its upright position when released.
6.Lifting motor power is 1.1kw
7.Conforms to EN1757-4
2)Specification Date
| Model | NPHD1000 | NPHD1500 | |
| Capacity | (kg) | 1000 | 1500 |
| Lowest Fork Height | (mm) | 85 | 85 |
| Max. Fork Height | (mm) | 800 | 800 |
| Fork Length X Fork Width | (mm) | 1140X520 or 1140X680 | 1100X520 or 1100X680 |
| Diameter of front wheel | (mm) | Ø75X50 | Ø75X50 |
| Diameter of Rear Wheel | (mm) | Ø150X50 | Ø150X50 |
| Lifting time in Full Range(s) | 10/12 | 18 | |
| Size of Fork | (mm) | 162X50 | 162X50 |
| Descending Speed | (m/s) | <0.1 | <0.1 |
| Motor Working Voltage | (v) | 12 | 12 |
| Battery Volgage | (v) | 12 | 12 |
| Electricity Volume | (A/h) | 63 | 63 |
| Working pressure of Pump Station | (Mpa) | 15 | 21 |
| Imput/output Voltage of Charger | (v) | 200-240/12 | 115-230/12 |
| Service Weight | (kg) | 118 / 128 | 145 / 155 |
| Max. Charging Current of Charger | (A) | 10 | 10 |
| Packing Details | 4pcs/crate, crate size:193X60X72, 108pcs/20" | 4pcs/crate, crate size:193X76X72, 84pcs/20" |

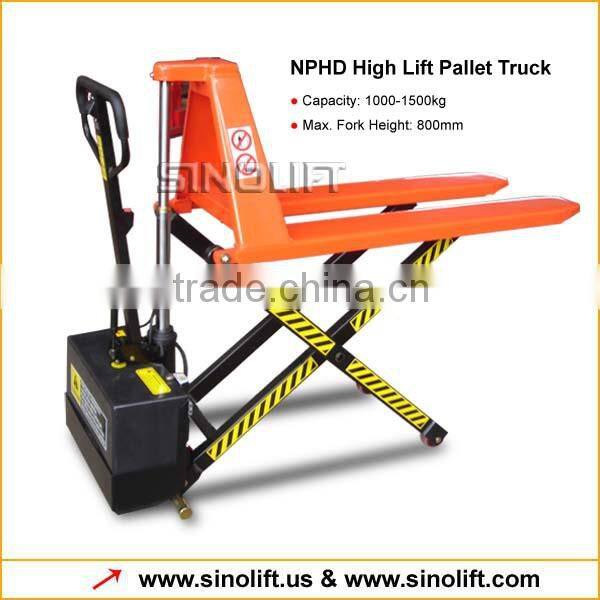

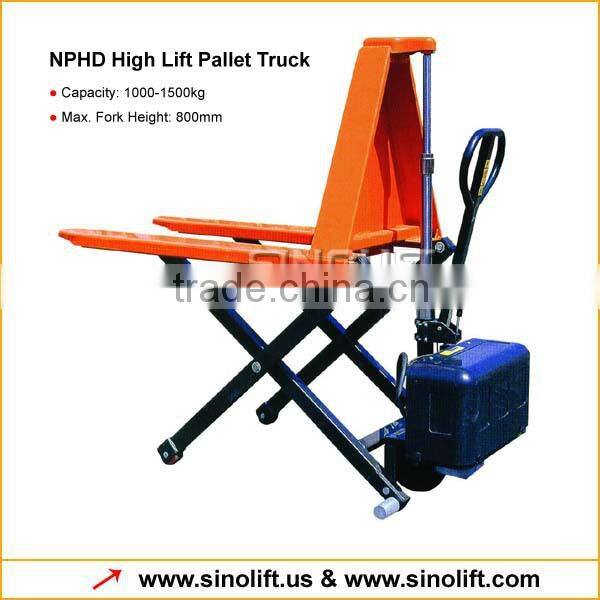

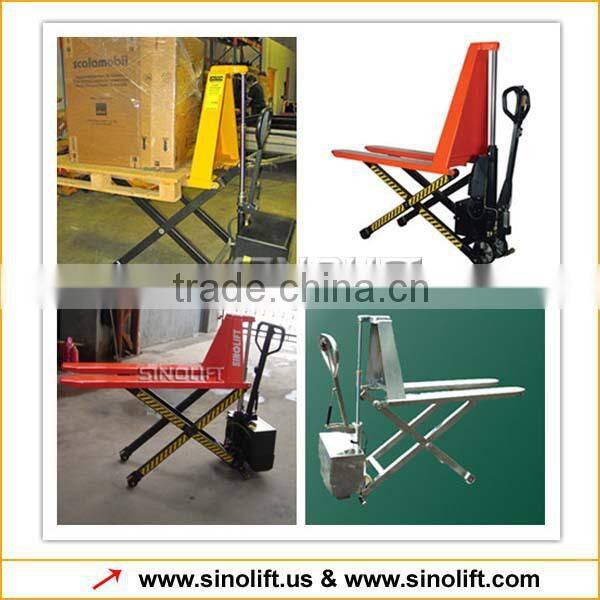

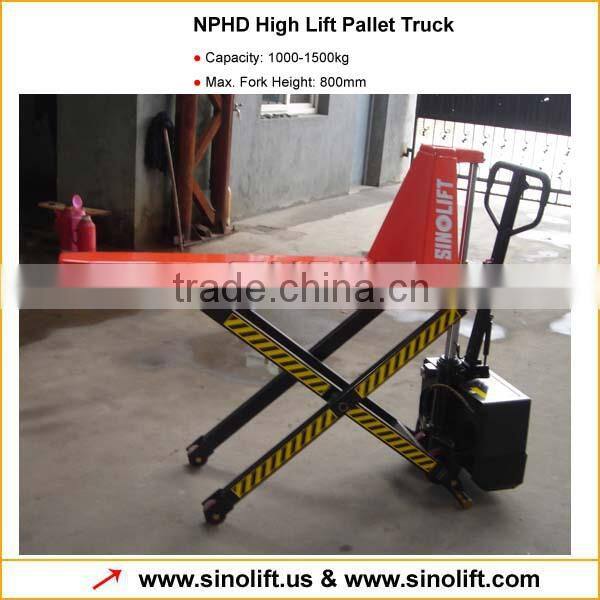

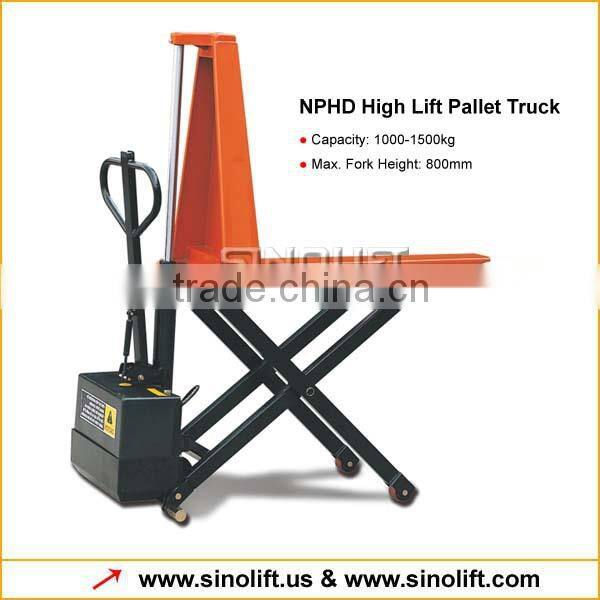

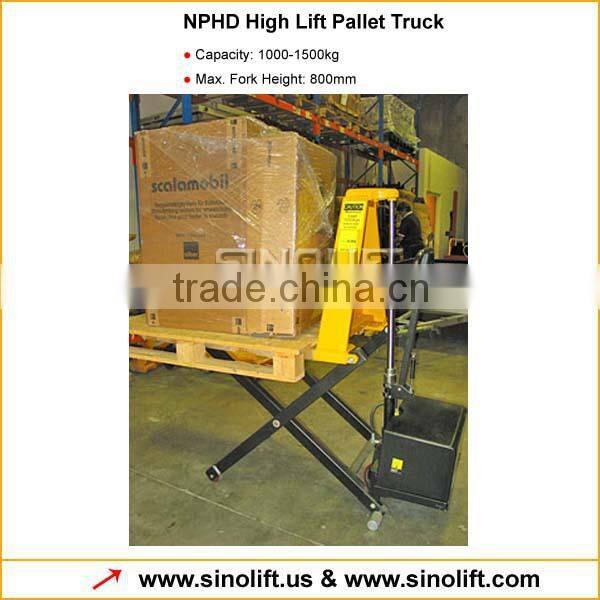

3)Photos

4)Workshop
5)Certificate
Shanghai Sinolift Equipment Co., Ltd is a production, design, manufacture, sales and service in one integrated production and trade enterprises. Main types of forklifts, material handling, storage and lifting products, also offer a variety of wire harnesses, TFT rule processing business, and produce a variety of OEM memory cards. Products are used in Germany and Japanese technology, all products passed "TUV", "CE", "GS" and "ISO9001" international quality system certification, the application of new technologies has unique.
6)Terms and Service
| Lead time | 3-4 weeks |
| Packing | Standard export fumigated wooden pallet, foam rubbers |
| Payment term | T/T payment in advance; L/C at sight |
| Lead term | FOB Shanghai or CFR/CIF |
| Warranty period | 12 months |
| Shipping method | by sea or air; by express |
7) Warranty Policy and Service Program
SINOLIFT give our customer warranty for each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us that we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items
8) Why choose us?
1- We're a material handling company, a pioneer in the industry in China, we've been leading the Chinese warehouse equipment industry since 2001. Sinolift products have been delivered to more than 80 countries.
2- We are unique, which means you will have a unique partner with unique trucks in the market, in long term. We are not assembling, 95% core parts are produced by ourselves, for example EPS, Hydraulic units, driving units are all produced by Sinolift, the only one in China. And Sinolift is keeping on investing 30% of its margin on R&D. At present, Sinolift is the only producer who delivers EPS as standard on most models.
3- Strict Quality Control: 48 hours 100% inspection of electronic parts test, 100% Quality Control before delivery, including Noisy, Driving, Lifting, and Welding inspection. Sinolift Quality has been accepted by world market, 13 world famous brand names are cooperating with Sinolift.
4- Full range products, High-Quality and economic models are both available from Sinolift, we have resources to help our partners to open the market easily.
5- Sinolift has a whole set of failure predication, repair, maintenance data which will reduce 60% of the dealer's after-sale service cost.
6- Universal core parts and design between different models. Structure of Sinolift products and 80% core parts are universal between different models, which will reduce greatly service parts stock and make the job of service people much easier.
