IP to ASI Gateway / Dvb ip Gateway for Iptv Building

FOB Price

US$ 1 - 99 / Set

1 Set(Min. Order)

Port Chengdu
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Sichuan, China		Brand Name	Colable
Model Number	COL5700AN

Product Description

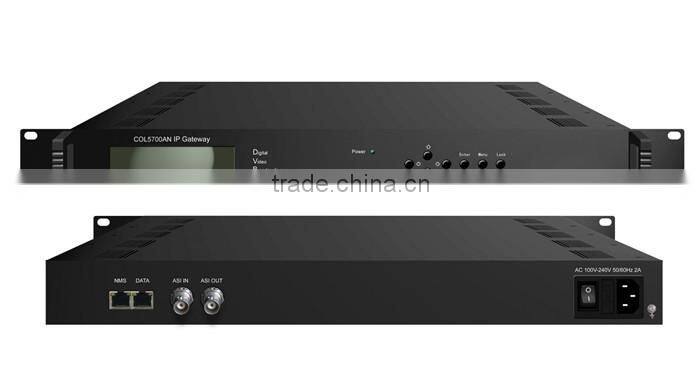

COL5700AN Bidirectional ASI to IP Gateway

Skype: yangting965

Outline

COL5700AN Bidirectional IP Gateway is a head-end interface device which is used for DVB and Ethernet. It can be used both for a receiver and a lancers! On one hand, in the lancers part, this machine can be used for sending IP stream, turning the TS stream into IP Stream. On the other hand, in the receive part; this machine can be used for receiving IP stream, turning the IP stream into TS stream.

Features

ü Support PCR adjusting

ü Transparent transmission without ATM adapting process, directly mapping IP frame, through the network, with 100Mbps interface to transmission

ü Alarm display

ü IP frame structure, complies ITU G. 752, ITU-T G.804 standard

ü IP signal physical interface complies ITU-TG.703 standard;

ü Two-way operation, IP Stream is 80.000Mbps.

ü LCD/Key board or Web page based NMS management

Specifications

ASI to IP	Input	1 ASI input (BNC)
ASI to IP	Output	1 IP over UDP output (RJ 45)
IP to ASI	Input	1 IP over UDP input (RJ 45)
IP to ASI	Output	1 ASI output (BNC)
NMS port	To connect PC and device management; To output IP signal (multicast only)
DATA port	To input/output IP (unicast/multicast )signal; Used as NMS port and auto generate IP address
General	Management	LCD/Key board; Web NMS
	Dimension	44mm482mm433mm
	Environment	0-45℃ (Working) ; -20~80℃ (Storage)
	Power supply	220V AC±10%, 50Hz 25W

Application

MMDS digital TV head end
Satellite digital TV broadcasting
Terrestrial digital TV
Image Supervise
Video-On-Demand (VOD) Long-distance teaching
Video Conference

Product Equipments

Testing Equipments

Package Process

About us Colable Electronics co.,ltd

specialize in Digital TV broadcasting equipment for more than 10 years, and experienced in Digital Cable/Satellite/ Terrestrial tv broadcasting solution and system, If you have any questions and ideas, please no hesitate to contact us!

Our experience: Continuous experienced and reliable Team , Standing in DVB Head-end system solution more than 10 years.
Our product: FTA satellite receiver/decoder, Satellite descrambler (CI slot), Encoder, Multiplexer,Scrambler, Modulator, Transmitter,Antenna,Set top box.
Our service: Life-long Technical support.
Warranty: 1 years.
Lead time: 2-5 working days
