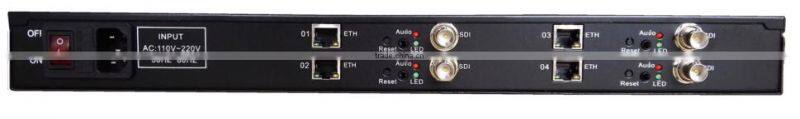

4 CH Full 1080p ip Encdoer Iptv hd Sdi Encoder H.264 Video Encoder COL7104S

4 CH full 1080p ip encdoer,iptv hd sdi encoder,h.264 video Encoder

Outline

COL7104S 4 channels SDI IPTV encoder is most competitive cost and easy-to-use video streaming appliance

designed for professional video producers.The product support 4 channel SDI video capture generating dual

stream of h.264 encoding output and the AAC audio format. From any SDI input source such as a camera or

switcher or DVD,it generates an H.264-encoded stream compliant with RTSP,HTTP,UDP and RTMP protocols.

The product can be applied to education, health care, IPTV, conference, remote education, news interview,

banking, transportation and other industries.

Features

• 4 channel SDI input,
• Up to 720P, 1080P HD video input
• System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN764, LINUX
• Supports MP3 and AAC audio format selection
• Encoding specification: BASELINE PROFILE / MAIN PROFILE/ HIGH PROFILE
• Support a click to restore the default configuration
• Support STB decoding
• Support Main TS stream and the sub TS stream can use different network protocols for transmission (Multi-rate multi-protocol support)
• Support multiple equipments display at the same time on a computer
• Support network directly connected, don’t need match HD collection card.
• Providing RTSP/RTP/HTTP/RTMP/UDP protocol
• Support H.264 Main Profile/H.264 High Profile and AAC audio.
• Web control interface
• Comply with CBR/VBR 16KBIT/S~12MBIT/S standard
• Power less than 24W, low power watts designing.
• Support Network interface full-duplex mode 1000M

Application

• IPTV digital headend
• Accessed NVR for DVR
• Internet conferencing system video capture
• Remote education video system
• Hotel TV System
• Hospital, Bank, transport agency system

Technical Specification

Our advantages

 Products Qulity:  Most of our products get CE approved:set top box have report from State

  Administration for Entry Exit Inspection and Quarantine.

 Technical Support: Our R&D department is composed br the most experienced engineer with

 young university graduate,bring new energy continuously. Customers will be informed at first

 time as long as our software upgrade or new management software version come out .

 Shipment Speed: All packages of orders will be shipped 2-5 days sfter customer deposit.

 Usually we use the speediest DHL/UPS/Fedex for small order delivery,and we have  long

  erm cooperated carriers for common air & sea delivery with cheap price and high speed.

 Guarantee: All products will have life-long skill support ,head ends for free repair within 3 years.

Some pictures for reference
