Home > Products > MC3 Series > Mc3 Solar Cable Connector

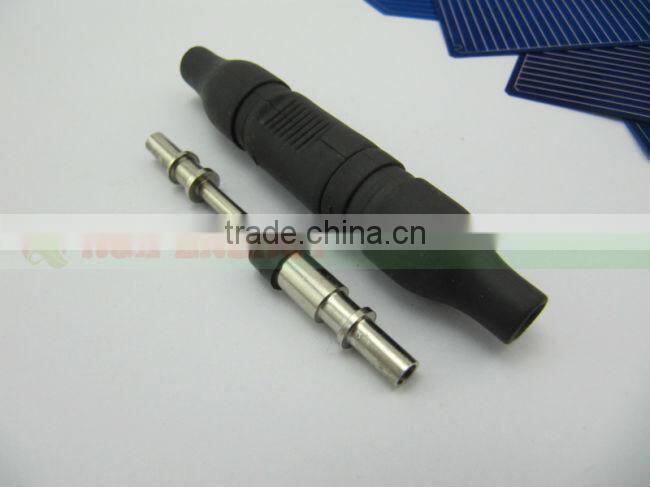

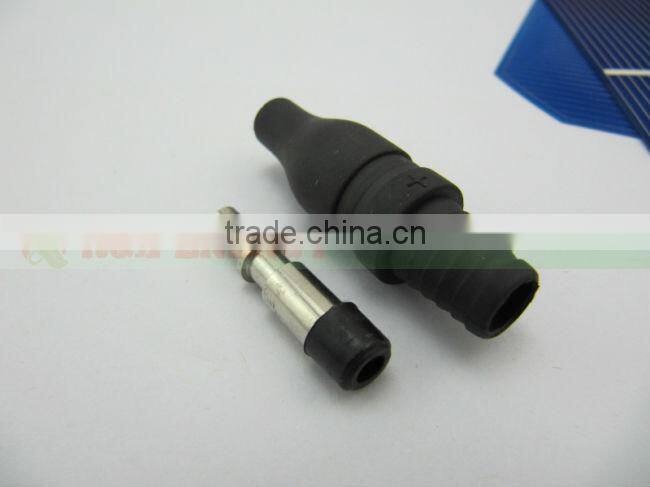

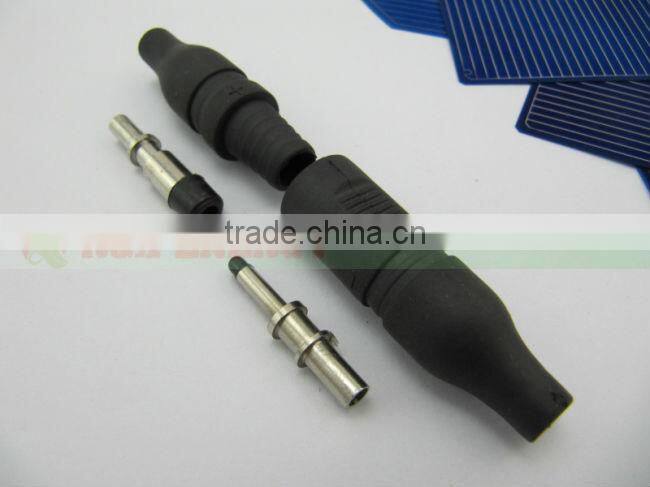

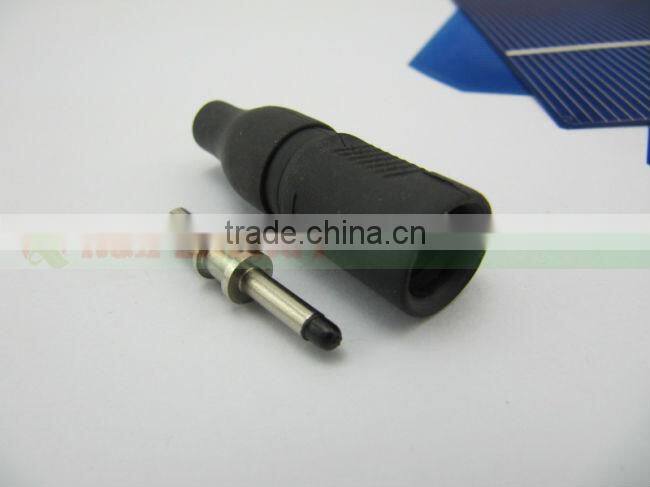

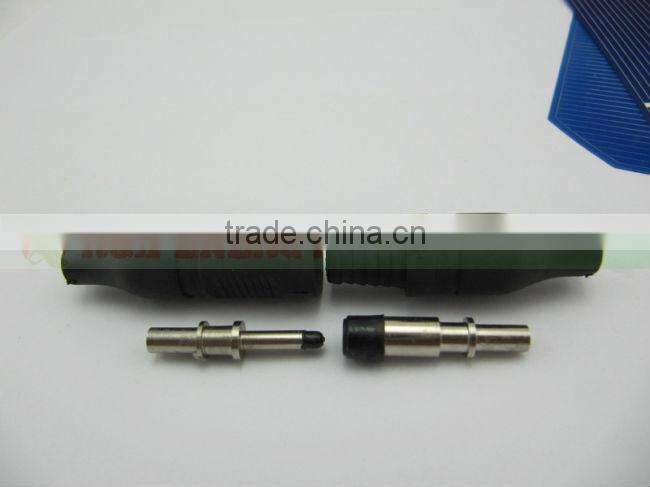

Mc3 Solar Cable Connector
- SHANGHAI/SHENZHEN
- T/T Credit Card PayPal
You May Like
-
Solar Mc3 Connector Male and Female and Pins.
-
MC3 Solar Panel Connector
-
Solar Power pv Mc3 Connector. TPE Insulation.
-
Solar Power pv Mc3 Connector. TUV Certification.
-
Solar Connector Cable, MC3 Y Branch Solar Connector.
-
High Quality MC4 Solar PV Connector With TUV Approval, Apply To Solar System Connection
Product Details
| Place of Origin | Jiangsu, China | Brand Name | R&X | |
| Model Number | R3 | Type | Adapter | |
| Application | Other, Solar power system | Gender | Other, Male and female |
Product Description
Specifications
mc3 solar cable connector:1.TUV&UL certificated;
2.Auto-lock for solar cable connecting;
3.Widely used in the solar energy
New arrival mc3 solar cable connector male and female PV connector for 2.5/4/6mm2 solar cable.
Sample Purchase online:Click here
Techincal Data
Withstanding Voltage | 1000V |
Rated Current | 30A |
Rated Impulse Voltage | 8000V |
Contact resistance | less than 1mΩ |
Dia dameter of pin or socket | 3mm |
Protection Class | Class 3 |
Temperaturer | -40°C ~ +85°C |
Protection Degree | IP2X,unmated;IP67,mated |
Wire Size Range | 2.5/4/6mm2(14AWG,12AWG,10AWG) |
Plug power | 30N-80N |
Insulation material | TPE/PA |
Contact material | Copper silver plated |
Flame Class | UL94-V0 |
Drawing |
|
Description
1.Connector adopts touch and insertion of reed with inner-knob type.
2.Auto-lock equipment of male and female points enable connection more easy and reliable.
3.Popular figure suit most of field installation
4.Simple on-site processing
5.Mating safety provided by keyed housings
6.Our connectors are in the lowest Contact resistance:0.4 mΩ
