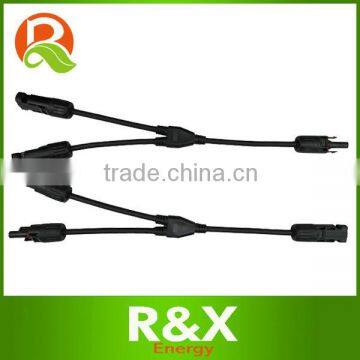

MC4 Y Branch Connector,Solar Y branch Connector ,Quality Warranty,Safe,Flexible,Reliable For PV Modules Connection
US$ 3 - 3.8
/ Pair
10 Pairs(Min. Order)
- SHANGHAI/SHENZHEN
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | R&X | |
| Model Number | R4-Y | Type | Adapter | |
| Application | Other, Solar power system | Gender | Other, Male and female |
Product Description
Specifications
MC4 Y Branch Connector1.Low Price
1.TUV Approval
2.Simple on-site processing
3.Widely used in the solar energy system
Sample Purchase online: Click here
*Flexible leads make this type of branch connector more versatile than the none flexible type.
*Acc.to DIN V VDE V 0126-3/12.06,UL1703 standard.
| Subject | Product Detailed Information |
| Type of appliance | PV Component Connector |
| Model No. | PV-SN02/SY |
| Rated Voltage (VDC) | 1000 |
| Rated Impulse Voltage (V) | 8000 |
| Rated Current (A) | 30A |
| Pollution Degree (1/2/3/4) | 3 |
| Overvoltage Category | III |
| Low Ambient Temperature (°c) | -40°c |
| Upper Ambient Temperature ( °c ) | +90 °c |
| Enclosure Rating ( RTI and Flammability Class) | UL94-V0 |
| Value Range of Cable Clamp | 5.5-6.3mm diameter for cable |
| Rated Cross Section of Conductor | 2.5mm2 or 4mm2 |
| Degree of Protection (IP Code) | IP67 |
| Plug Power | 30N-80N |
| Contact Material | Copper |
| Insulation Material | PPO |
| Authentication | TUV |
| Wire length | 85mm or Arbitrary length |
Product Pictures:
