Solar Panel Electrical Connector
- SHANGHAI/SHENZHEN
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | R&X | |
| Model Number | R4 | Type | Adapter | |
| Application | Other, Solar power system | Gender | Other, Male and female |
Product Description
Specifications

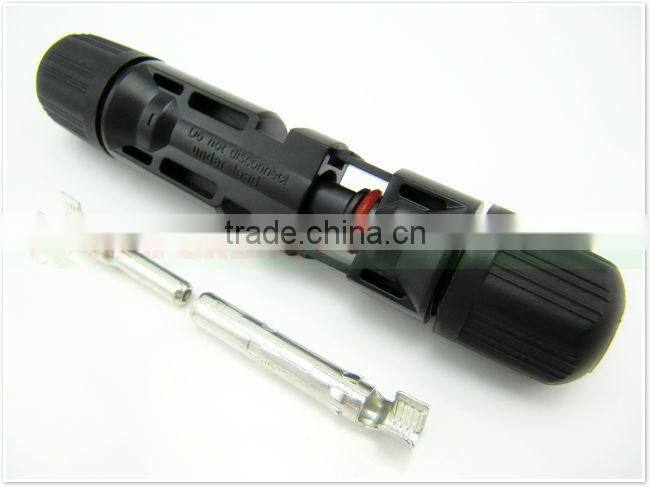

solar panel electrical connector1.TUV&UL certificated
2.Auto-lock for solar cable connecting
3.Widely used in the PV system

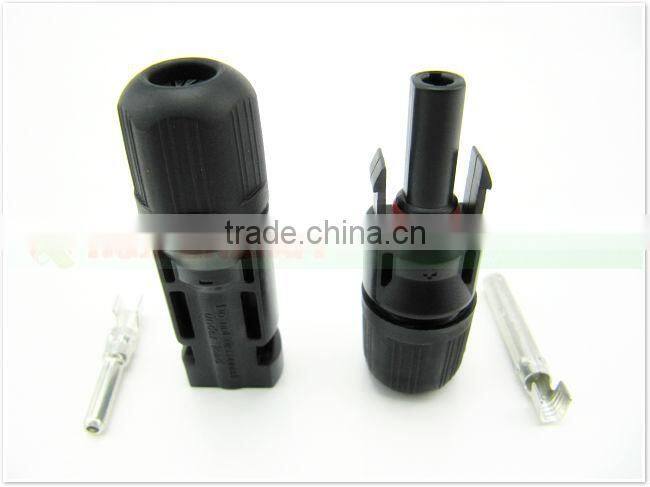

Solar connector MC4 waterproof and dustproof for 2.5/4/6mm2 solar cable.
Sample Purchase online:Click here
Techincal Data
Rate voltage | 1000V |
Rated current | 25A(2.5mm2) , 36A(4mm2,6mm2) |
Test voltage | 6KV(50Hz) |
Protect degree | IP67 |
Insulation material | PPO |
Contact material | Copper sliver plated |
Operating temperature | -40°C~+90°C |
Safe class | 2 |
Flame class | UL94-V0 |
Contact resistance of plug connectors | ≤5mΩ |
Insertion force | ≤50N |
Withdraw force | ≥50N |
Suitable cable | 2.5mm2/4mm2/6mm2(AWG14/12/10) |
Locking system | Snap in |

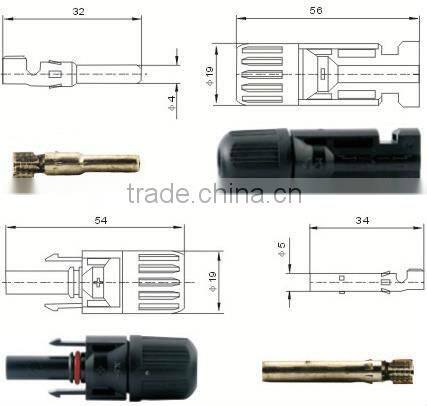

Drawing |
Description
1. Acc.to DIN V VDE V 0126-3/12.06,UL1703 standard.
2. highly robustness,UV-Resistance,
3. Connector adopts touch and insertion of reed with inner-knob type.
4. Auto-lock equipment of male and female points enable connection more easy and reliable.
5. Popular figure suit most of field installation
6. Simple on-site processing
7. Accommodates PV cable with deferent insulation diameters
8. High current carrying capacity
Assembly Instructions
1. During self assembly, parts and tools other than those stated by TOP HENGDA are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.
3. The end product must provide protection from electric shock.
4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.
5. Disconnected connectors should be protected from dirt and water with sealing caps.
6. Plugged parts are watertight IP67

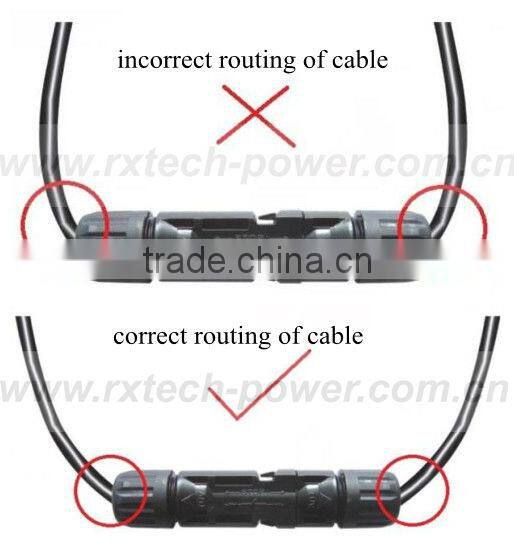

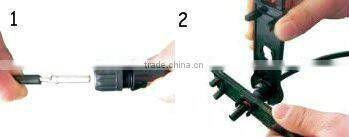

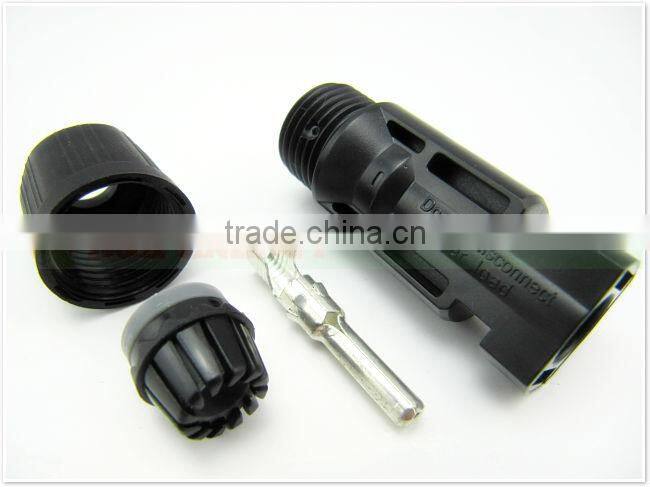

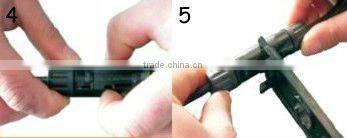

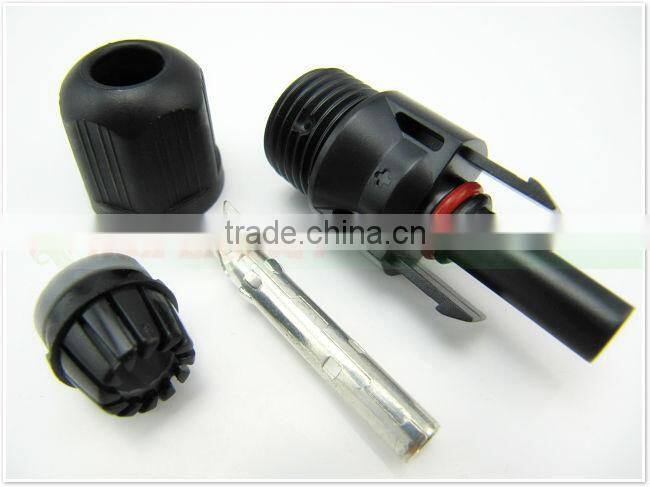

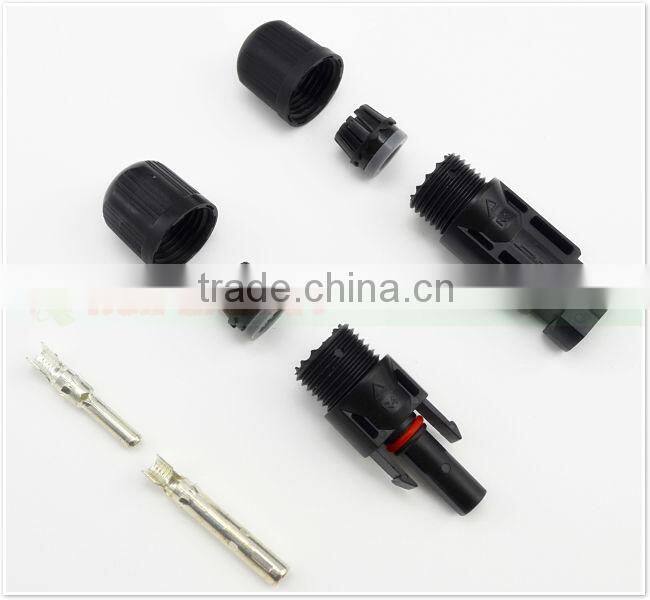

Assemble solar connector with cable
1. Push the crimped contact into the socket resp. Plug insulator until it engages. Pull lightly on the lead to check that the metail part has engaged.
2. Screw on the cable gland, hand-tight, with the tools PV-STX,tightening torque about:2.2 Nm.
3. Mount the connector together until they engage. Check correct engagement by pulling on the coupling
4. Compress the two snap-in springs by hand or with the PV STX tool and separate the coupling
