MC4 solar panel mount connector waterproof IP67.
- SHANGHAI/SHENZHEN
- T/T Credit Card PayPal
You May Like
-
MC4 T-Branch Connector , Apply to Solar Panel Connection,TUV Approval
-
MC4Y branch solar connector for Photovoltaic system.
-
Solar 1 x 3 connector,mc4
-
2013 New brand MC4 X branch solar connector, waterproof and dust proof.
-
MC4 solar cable assembly with connector. TUV certification.
-
MC3 mc4 solar pv connector cable
Product Details
| Place of Origin | Jiangsu, China | Brand Name | R&X | |
| Model Number | R4-P | Type | Adapter | |
| Application | Other, Solar power system | Gender | Other, Male and female |
Product Description
Specifications
MC4 solar panel mount connector1.TUV&UL certificated
2.Auto-lock for solar cable connecting
3.Widely used in the PV system

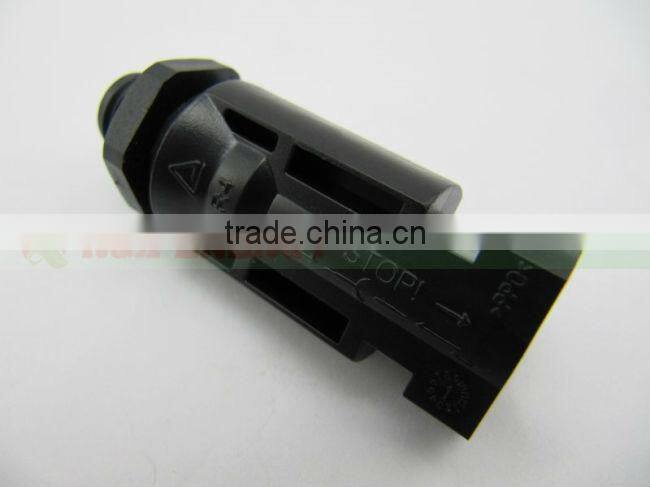

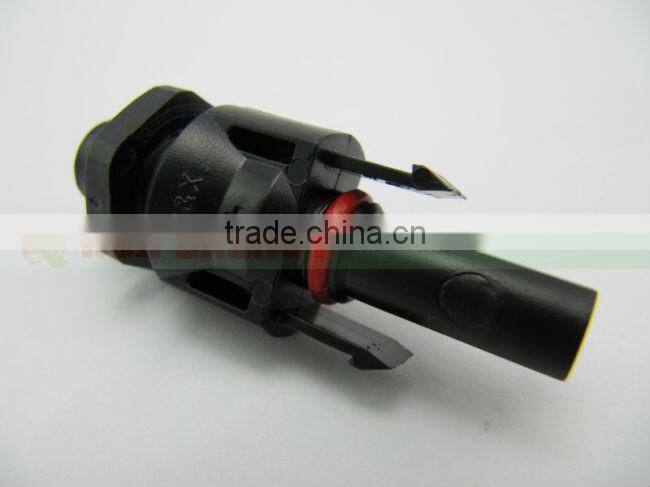

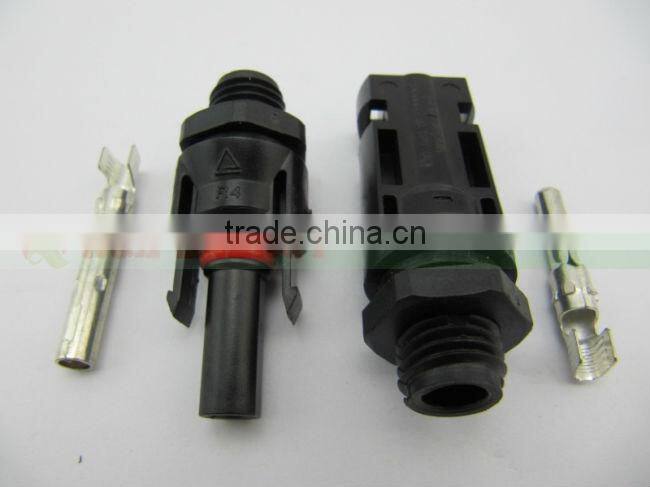

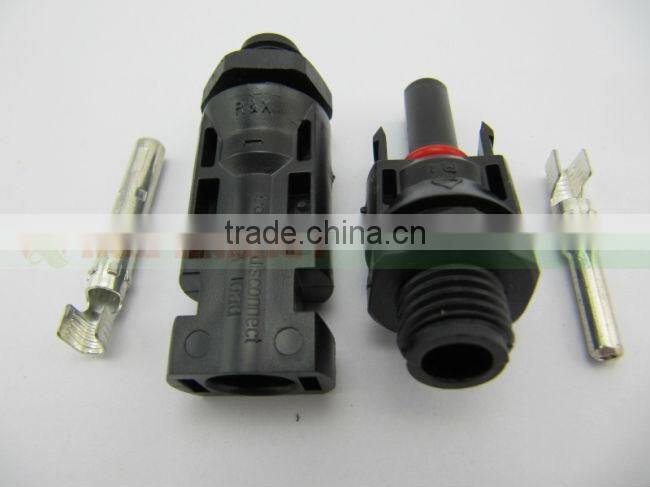

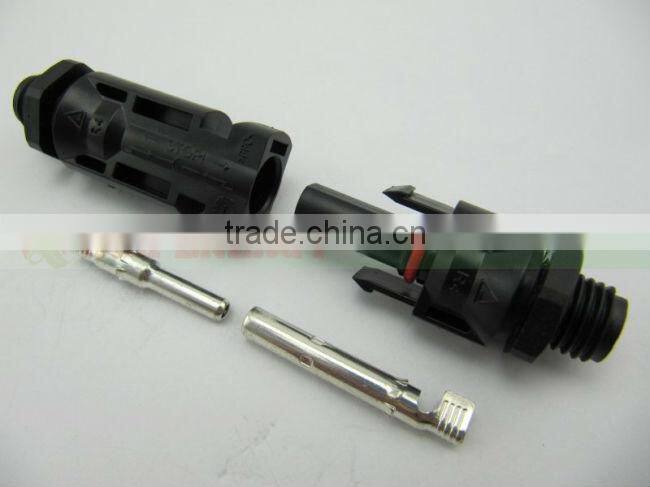

MC4 solar panel mount connector waterproof IP67.
Sample Purchase online: Click here
Techincal Data
Rated Current | 22A(2.5mm2), 30A(4mm2,6mm2) |
Withstanding Voltage | 1000V DC(TUV), 600V(UL) |
Contact Resistance | less than 1m Ω |
Protection | Class 2 |
Temperature Range | -40°C~+90°C |
Protection Degree | IP2X, unmated; IP67,mated |
Wire Size Range | 2.5/4/6mm2 (14AWG,12AWG,10AWG) |
Unmating force | 200 Newton |
Insulation material | PC/PA |

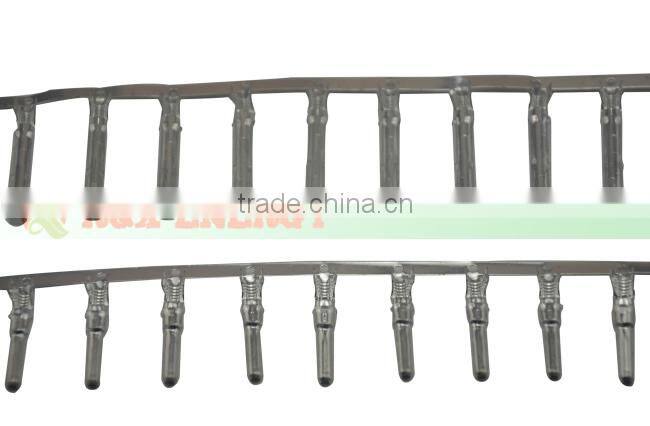

Contact material | Copper, silver plated |
Flame Class | UL94-V0 or UL94-5VA |

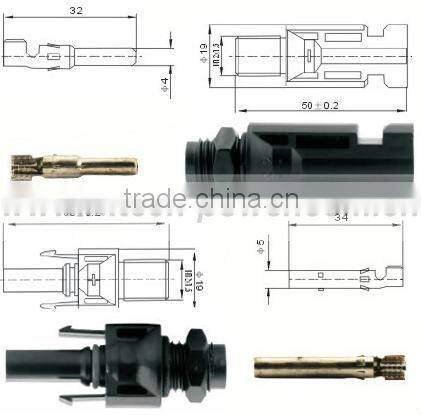

Drawing |
|
Description
1. This MC4 solar panel connector has an auto-lock structure to connect reliably
2. Eligible PPO material, has marvelous performance of high-low temperature, fireproof, anti-ultraviolet rays and applied to the long-time operation outside.
3. The assembly process is convenient, safe, easy and firm.
4. With big current and high voltage load capability
5. Our connector is with the lowest contact resistance:0.4mΩ,which enable it to work more efficiently and more power-saving.

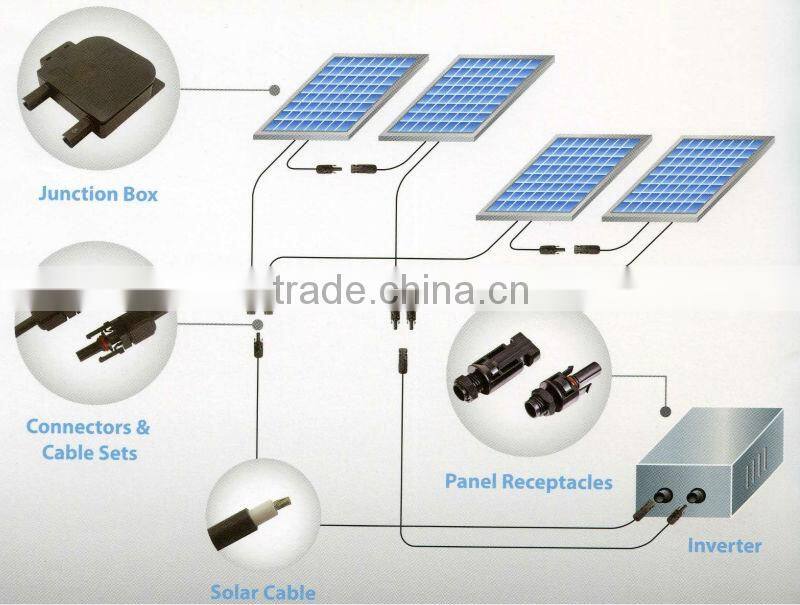

Application
