Home > Products > Battery Charge Controller > Upgraded Wind Charge Controller for 100-600w Wind Turbine Generator, Waterproof Wind Regulator 12V/24V Auto Distinguish
Upgraded Wind Charge Controller for 100-600w Wind Turbine Generator, Waterproof Wind Regulator 12V/24V Auto Distinguish
US$ 15 - 30
/ Piece
1 Piece(Min. Order)
- SHENZHEN/SHANGHAI
- T/T Credit Card PayPal
You May Like
-
400W 12V Wind/solar Hybrid Controller With RS232 Communication Device , 600w Max Charge Controller With Monitoring Software
-
PWM 24V Wind/solar Hybrid Controller With Monitoring Software, LCD Display 400w Rated, 600w Max Charge Controller With RS232
-
48V Wind/solar Hybrid Controller 600w Rated, 900w Max, Come With RS232 Communication, Battery Charger With Monitoring Software
-
Solar Charge Controller 120V/ 40A, Max Power of Solar Panel 4.8kw
-
48V 600w Wind Solar Hybrid Controller With LCD Display, for Max 900w Wind Turbine and 300w Solar Panel, PWM Unloading
-
400W Wind Solar Hybrid Controller Max 600w, 12V/24V Battery Charge Controller With LCD Display, Use for Both Wind and Solar
Product Details
| Place of Origin | Jiangsu, China | Brand Name | R&X | |
| Model Number | RX-600CWN | Application | Wind Controller | |
| Rated Voltage | Other, 12V/24V | Maximum Current | 30A |
Product Description
Upgraded wind charge controller for 100-600w wind turbine generator, waterproof wind regulator 12V/24V auto distinguish
Sample Purchase online:Click here
Technical Data
| Model No | RX-600CW |
| Max Input AC Voltage | AC 30V |
| Output DC Voltage | DC12V/24V |
| Over-Discharging Voltage Protection | DC14.5V±0.3V / 29V±0.3V |
| Max. Charging Current | 30A(12V); 16A(24V) |
| Limit Voltage Of Wind Turbine Speed | DC14.5V±0.3V; 29V±0.3V |
| Protection Class | IP67 |
| Static Power Consumption | 0.012A |
| Rated Power | 600W |
| Rated Wind Speed | 12 |
| Working Temp | -35°C—65°C |
| Wiring Of Input | Three wire system |
| DC Voltage Control Mode | 12V/24V |
| Installation | Bolting |

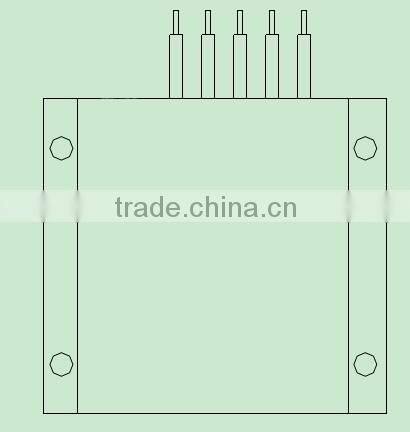

| Drawn | |

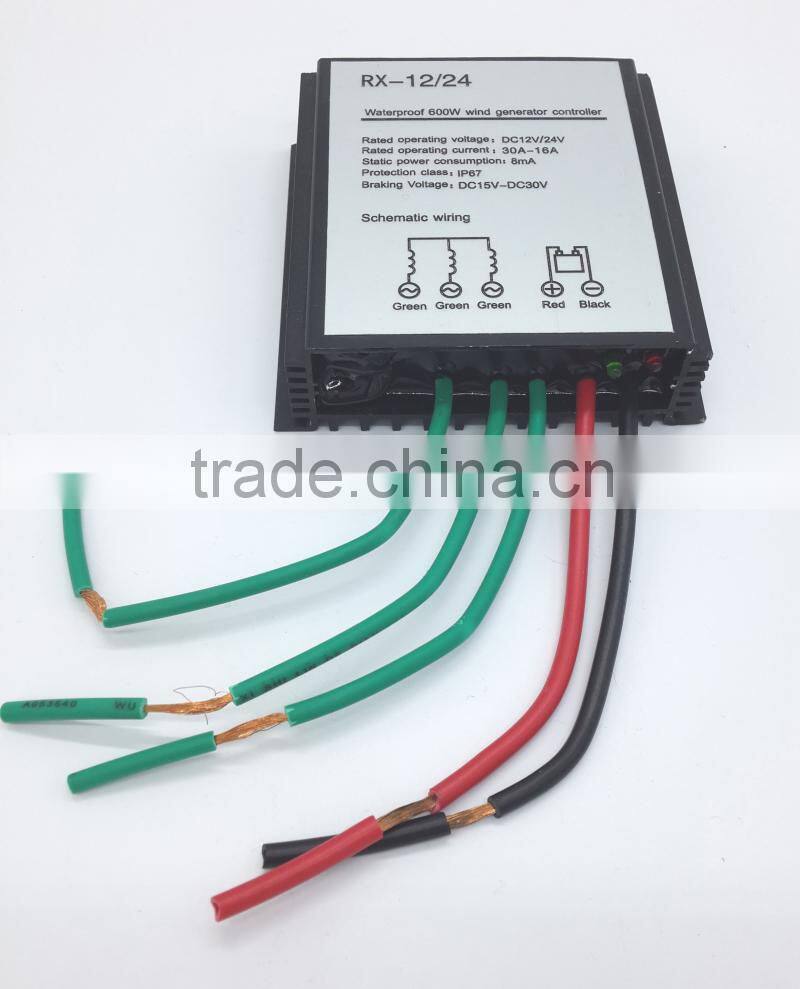

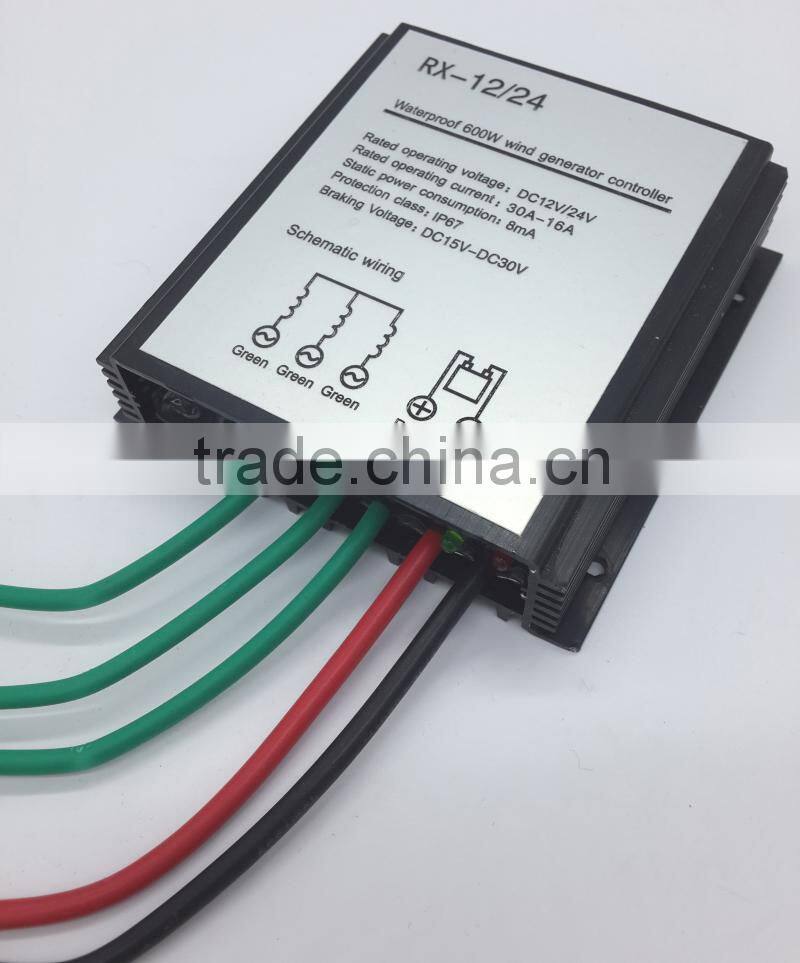

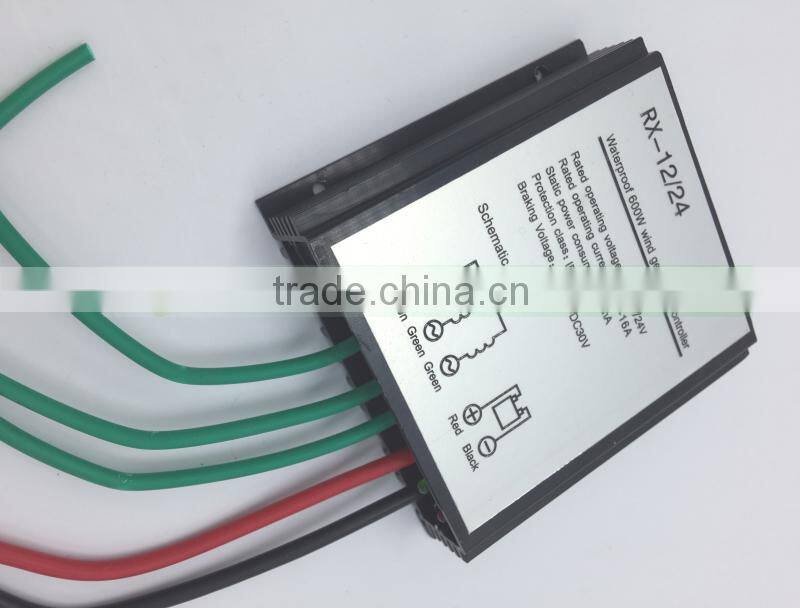

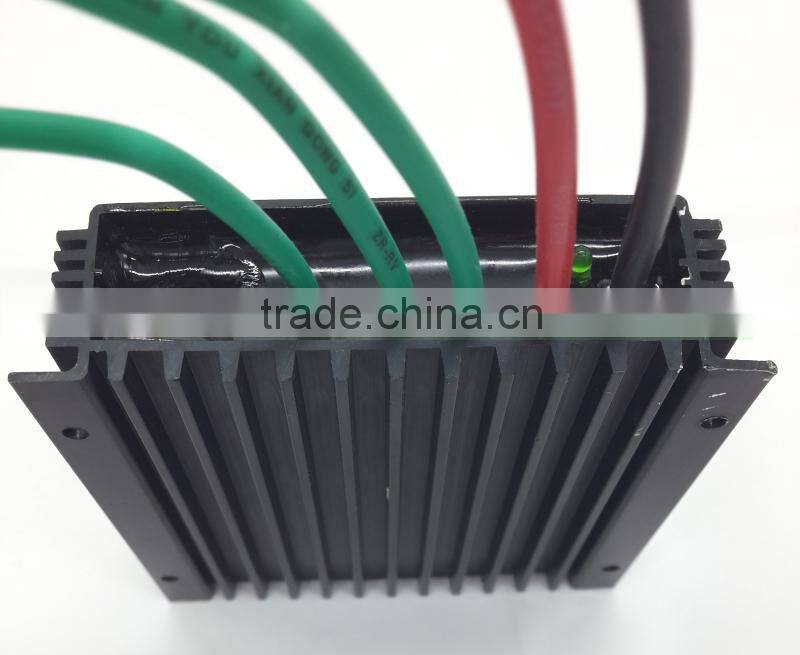

Picture Of Controller

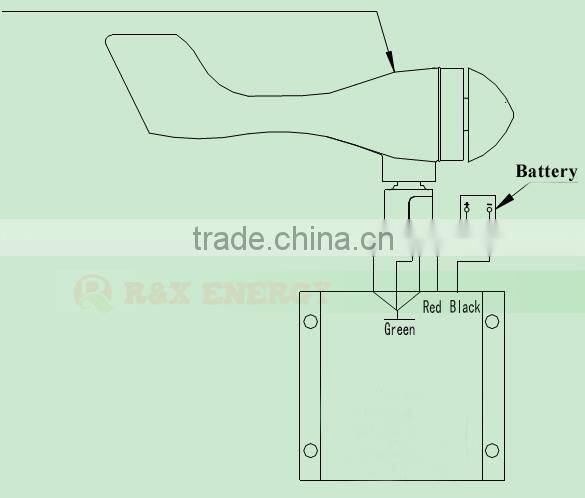

Wiring Instructions
1. Coarse red wire connected with + of the battery
2. Connect any green wire of controller to any wire of wind turbine generator
3. Applications: all kinds of small wind turbines
4. Product warranty period: one year

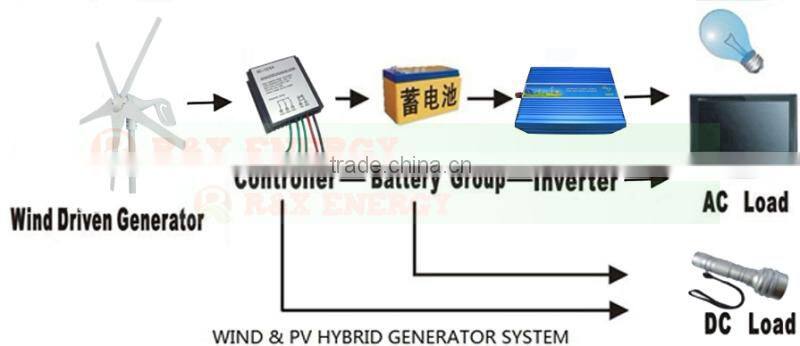

Application
