MC3 Solar Panel Connector, Used for 2.5/4/6mm2 Solar Cable.
- SHANGHAI/SHENZHEN
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | R&X | |
| Model Number | R3-P | Type | Adapter | |
| Application | Other, Solar power system | Gender | Other, Male and female |
Product Description
Specifications
MC3 solar panel connector1.TUV&UL certificated;
2.Auto-lock for solar cable connecting;
3.Widely used in the PV system

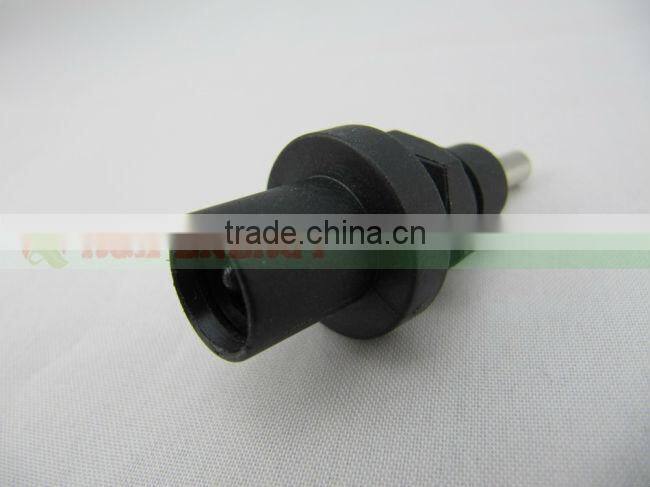

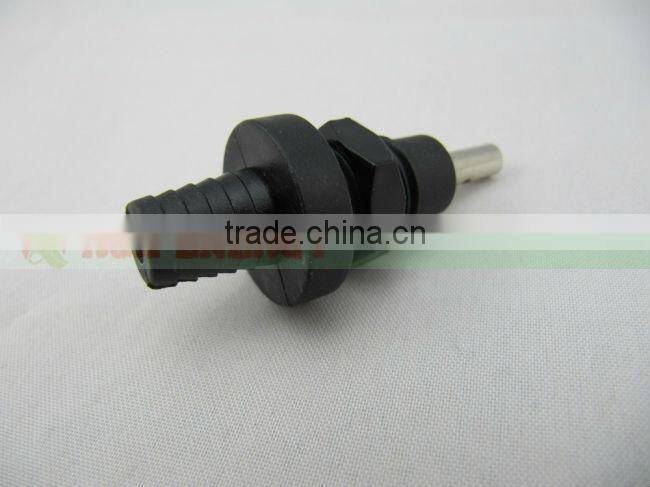

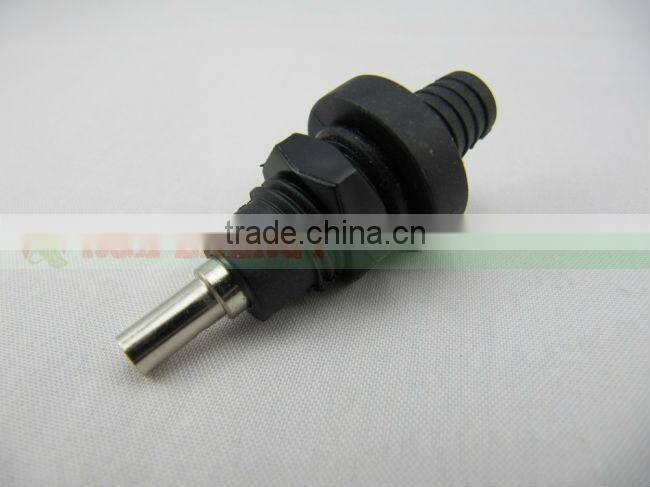

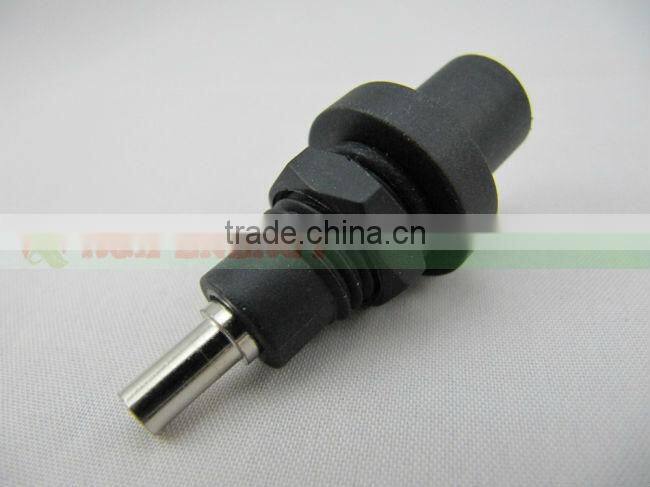

MC3 solar panel connector, used for 2.5/4/6mm2 solar cable.
Sample Purchase online: Click here
Techincal Data
Rated Current | 25A(2.5,4mm2);30A(6mm2) |
Withstanding Voltage | 1000V DC(TUV),600V(UL) |
Contact Resistance | ≤5mΩ |
Dia of pin or socket | 3mm |
Protection Class | Class II |
Operating temperature | -40°C ~ +85°C |
Protection Degree | IP2X,unmated;IP67,mated |
Insulation Material | PC/PA |
Contact Material | Copper,silver plated |
Flame Class | UL94-V0 |

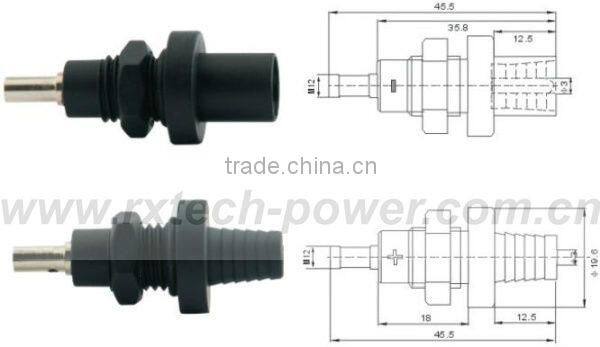

Drawing |
|
Description
1 This connector is widely used with the inverter .
2 Eligible PA66 material, has marvelous performance of high-low temperature, fireproof, anti-ultraviolet rays and applied to the long-time operation outside
3 The assembly process is convenient, safe, easy and firm.
4 With big current and high voltage load capability
5 Our connector is with the lowest contact resistance:0.4mΩ,which enable it to work more efficiently and more power-saving
