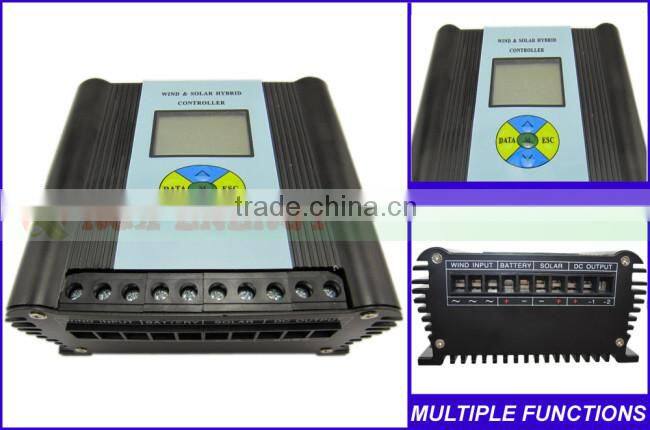

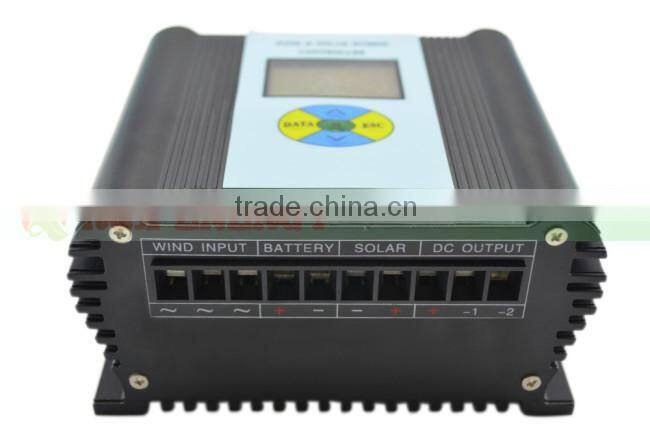

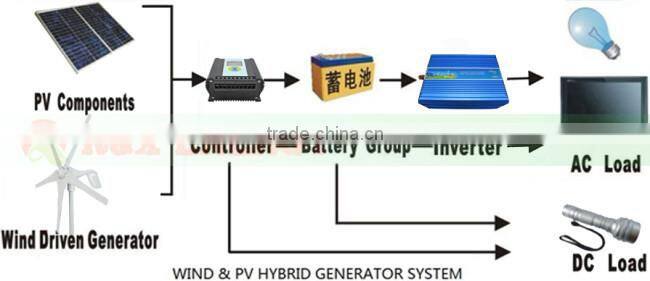

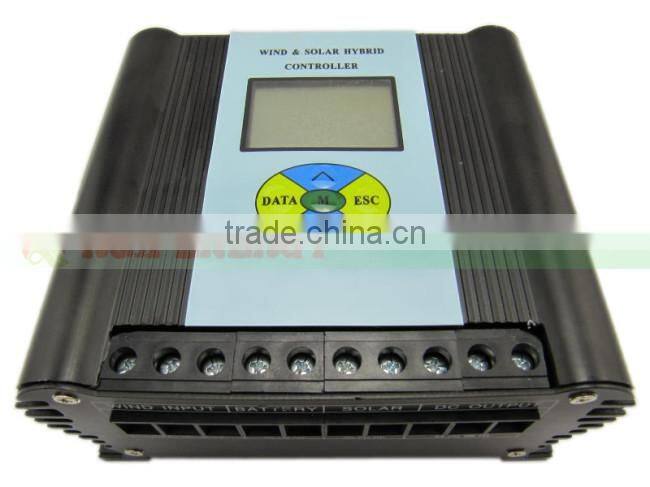

600w wind/solar hybrid controller 12v/24v charge controller with LCD display. Used for wind and solar power system.

Model

RX-600LCD

Rated Voltage

12V

24V

Battery maximum current

30A

30A

Rated Power of Solar panels

150W

300W

Voltage of Power on

1V(adjust able)

2V(adjust able)

Voltage of Power off

2V(adjust able)

4V(adjust able)

Rated Power of Wind Power

400W

600W

Maximum Speed of Wind turbines

100~2000r /min(adjust able)

Series of Wind turbines

6~35(adjust able)

Time of brake renewing of Wind turbines

10min~60min (adjust able)

Float charging voltage

14V (adjust able)

Charge return voltage

12.5V (adjust able)

Over-discharge protection voltage

10V (adjust able)

Over-discharge  recovery  voltage

11V (adjust able)

Compensation factor of

Charging temperature

(optional)

2mV/°C/2V(adjust able)

-20~65°C

Maximum current

10A (could be designed)

Load

Output

(two independent outputs)

Normally closed ,

normally open,light-control,

time-control, light&time-control

Load output Current

10A

Load output period

1~15hour(adjust able)

Ambient temperature

-20~+55° C

Storage temperature

-30~+65° C

Operating humidity range

35~85%RH(no condensation)

Elevation Altitude

≤5500 M

Case size

127mm*150mm*75mm

Weight

2.5kg

Case material

Milky/Black paint

Protection function

Solar reverse charge&connection protection,

Battery over charge,over discharge , reverse

connection protection, Lightning protection ,

Wind turbine over speed ,current limiting,

automatic brake and manual brake

In order to serve our customers better. Our company can adjust parameters configuration

according to customer's requirement.
