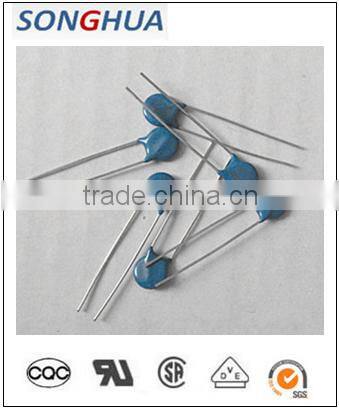

Surge Protector Zinc Metal Oxide Varistor Surge Arrestor Surge Absorber HEL5D270K 5mm 27V Surge Protector Movs VDR Electronic co

Electronic components- Voltage Dependent Resistor VDR varistor-5D270K

Type MYG Varistors are made of semiconductor ceramic materials composed mainly of zinc oxide. They have non-linear resistance that change as a function of applied voltage. It has small size, high current capacity, and high protection level.

PRODUCT:STE5D270K

Varistor voltage(V1mA):27V/24-30V

Maximum Allowable voltage:17VAC/22VDC

Maximum Clamping voltage:60V/5A

Withstanding Surge Current(8/20us):100A/1 time

Rated Wattage(W):0.01W

Energy(2ms):0.4J

Typical Capacitance:1500PF

Recongnized Certificate:

Ordering Notes:

1.      Ceramic Disc: Zinc Oxide Varistor

2.      Material of coating: Epoxy resin

3.      Material of Leads:  CP wire

4.      Lead type: Straight lead

5.      Package: Bulk pack

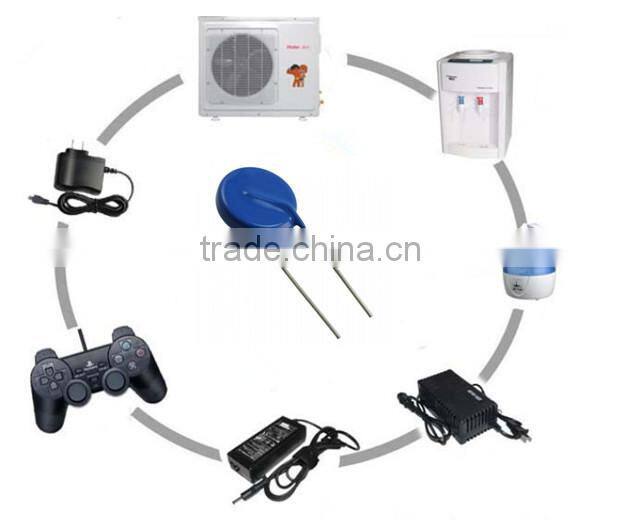

Function:

WORKSHOP

 Technical Data:

1. Varistors Voltage: The voltage between two terminals with the specified measuring current 1mA DC applied is called V1mA,The measurement shall be made as fast as possible to avoid heat affection.

3. Leakage Current: The current passing through the varistors at the  maximum continuous DC voltage.
