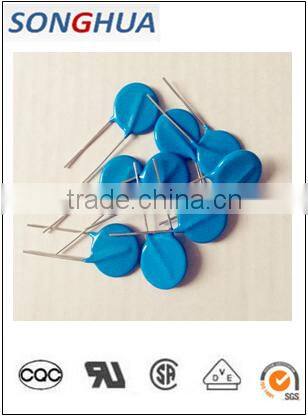

High Voltage Surge Protector Zinc Metal Oxide Varistor Surge Arrestor Surge Absorber 10mm 10D820V/1mA Electronic Components

J=1391*Ip* Vc*10-6          Where  J -- Energy absorbed in joules.

Ip -- Maximum let-through current in amps.Vc-- Measured clamping voltage in volts.

6.MaximumPeak current :

The maximum current within the varistors voltage change of ±10% with the standard impulse current (8/20μS) applied one time.

7. Capacitance:

Typical value measured at 1Vrms and test frequency of 1kHz.

8.Solderability:

After dipping the terminals to a depth of  3.5-0.5 mm from the body in a soldering bath of temperature 235℃±5℃for 2± 0.5seconds, the terminal shall be visually examined.

9.Resistance to Soldering heat:

After each lead shall be dipped into a solder bath having a temperature 260℃±5℃,to a point 2.0 to 2.5mm from the body of the unit. Using shielding Board(t=1.5mm) ,be held there for specified time(5D series: 5±1 seconds and other series:10 s ),and then be stored at room temperature and humidity for 1 to 2 hours. The change of V1mA and mechanical damages are examined.

10.Solvent resistanceof marking:

Solvent: alcohol  Rubbing material: cotton wool Recovery: 4hours.Thereafter, visual examination and the change of  V1mA  shall be examined.
