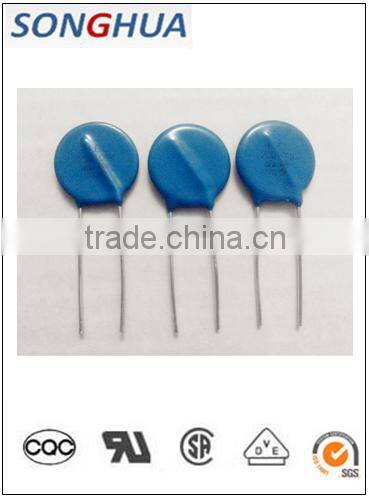

High Voltage Surge Protector Zinc Metal Oxide Varistor Surge Arrestor Surge Absorber 20mm 20D331K Movs

FOB Price

US$ 0.12 - 0.16 / Piece

1000 Pieces(Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	HEL
Model Number	20D331K	Type	Varistor
Technology	Ceramic Composition	Package Type	Throught Hole
Resistance	330V	Resistance Tolerance	+/-10%
Rated Power	1.0w	Operating Temperature	+40-85

Product Description

Electronic components- Voltage Dependent Resistor VDR varistor

Type MYG Varistors are made of semiconductor ceramic materials composed mainly of zinc oxide. They have non-linear resistance that change as a function of applied voltage. It has small size, high current capacity, and high protection level.

PRODUCT:HEL20D331K

Varistor voltage(V1mA):330V/297V-363V

Maximum Allowable voltage:210VAC/275VDC

Maximum Clamping voltage:550V

Withstanding Surge Current(8/20us):6500A/1 time

Rated Wattage(W):1.0W

Energy(2ms):99J

Typical Capacitance:1300PF

Ordering Notes:

1. Ceramic Disc: Zinc Oxide Varistor

2. Material of coating: Epoxy resin

3. Material of Leads: CP wire

4. Lead type: Straight lead

5. Package: Bulk pack

Recongnized Certificate:

Function:

Producing Process

Technical Data:

1. Varistors Voltage: The voltage between two terminals with the specified measuring current 1mA DC applied is called V1mA,The measurement shall be made as fast as possible to avoid heat affection.

2.Maximum Continuous AC or DC Voltage:Maximum Continuous AC Voltage 0.62multility varistor voltage.

3. Leakage Current: The current passing through the varistors at the maximum continuous DC voltage.

4.Clamping Voltage:The peak voltage at class current (Standard surge currentwaveform is 8/20μS). The class current is a peak value of current which is1/10 of the maximum peak current for 100 impulses at per minute for 8/20μS.

5.Energy:The maximum energy within the varistors voltage change of ±10% when one impulse of 2ms or 10/1000μS is applied.

For the 2mS waveform:J=2*Ip* Vc*10-3 For the 10/1000μS waveform:

J=1391*Ip* Vc*10-6 Where J -- Energy absorbed in joules.

Ip -- Maximum let-through current in amps.Vc-- Measured clamping voltage in volts.

6.MaximumPeak current : The maximum current within the varistors voltage change of ±10% with the standard impulse current (8/20μS) applied one time.

7. Capacitance: Typical value measured at 1Vrms and test frequency of 1kHz.

8.Solderability: After dipping the terminals to a depth of 3.5-0.5 mm from the body in a soldering bath of temperature 235℃±5℃for 2± 0.5seconds, the terminal shall be visually examined.
