Home > Products > Magnetic Separator for Mining > "HUATE " 3.6 Meter WHIMS high intensity wet magnetic separator
"HUATE " 3.6 Meter WHIMS high intensity wet magnetic separator
Negotiable
/ Set
1 Set(Min.Order)
- 10 Set / Sets per Month
- any port in China
- T/T
You May Like
-
Series CFLJ: Non-metallic Fine Powder Minerals Roller Magnetic Separator
-
HUATE BRAND Rare Earth Roller Magnetic Separator - Series CFLJ
-
HUATE Permanent Magnetic Iron Separator - Series RCYB
-
HUATE BRAND: The First Nonvolatile 5.5T Cryogenic Superconducting Magnetic Separator in the World
-
The First Nonvolatile 5.5T Cryogenic Superconducting Magnetic Separator in the World
-
CXJ fine dry powder Separator
Product Details
| Condition | New | Type | Magnetic Separator | |
| Production Capacity | As you required | Place of Origin | Shandong, China | |
| Brand Name | HUATE | Model Number | LHGC-3600 | |
| Voltage | As you required | Power(W) | As you required | |
| Dimension(L*W*H) | As you required | Weight | 2~175 tons | |
| Certification | ISO/CE | Warranty | 12 months | |
| After-sales Service Provided | Overseas service center available |
Product Description
Product Description

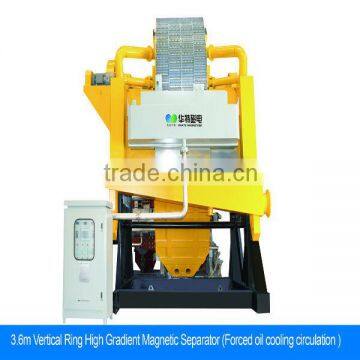

LHGC vertical ring high gradient magnetic separator
1.Global Third -generation Vertical Ring High Gradient Magnetic Separator(Forced Oil Cooling Circulation)
Advantages:
With advance structure, easy maintenance and reliable operation, good performance, wide applicability to ore granularity, ore density and ore grade which realize the goal of good concentration and good reclamation.
2.Global Fourth-generation Vertical Ring High Gradient Magnetic Separator(Oil-water Complound-cooling)
Application:
It can be used in wet processing -1.2 mm(-200 mesh of 30~100%) red ore (hematite and limonite, siderite etc.), manganese ore, ilmenite, chromite, tungsten ore and other kinds of weakly magnetic minerals and metallic minerals, such as quartz, feldspar, nepheline ore, kaolin for removing impurity iron and purification.
Model:
| Model | Diameter of revolving | Feeding size (mm) | Feeding density | Processing | Rated background | Rated exciting | Motor | Water | Water | Weight of main engine(t) | Appearance size |
| Ring(mm) | (%) | Capacity | Field intensity | Power | Power | Pressure | Consumption | L*W*H | |||
| (t/h) | (T) | Kw | Kw | MPa | m³/h | (mm) | |||||
| LHGC-500 | 500 | -1 | 10-40 | 0.1-0.3 | 1.1 | 16 | 0.37+0.18 | 0.1-0.2 | 0.75-1.5 | 1.5 | 1800*1400*1320 |
| LHGC-750 | 750 | -1 | 10-40 | 0.1-0.5 | 1.1 | 21 | 0.75+0.55 | 0.1-0.2 | 1.5-3.0 | 3 | 2000*1360*1680 |
| LHGC-1000 | 1000 | -1.2 | 10-40 | 3.5-7.5 | 1.1 | 30.8 | 2.2+1.1 | 0.2-0.4 | 10~20 | 6 | 2700*2000*2400 |
| LHGC-1250 | 1250 | -1.2 | 10-40 | 1.1 | 37.8 | 2.2+1.5 | 0.2-0.4 | 20-50 | 14 | 3200*2340*2700 | |
| LHGC-1500 | 1500 | -1.2 | 10-40 | 20-30 | 1.1 | 46.2 | 4+3 | 0.2-0.4 | 50-100 | 20 | 3600*2900*3200 |
| LHGC-1750 | 1750 | -1.2 | 10-40 | 30-50 | 1.1 | 65.3 | 4+4 | 0.2-0.4 | 70-160 | 35 | 3900*3300*3800 |
| LHGC-2000 | 2000 | -1.2 | 10-40 | 50-80 | 1.1 | 78.3 | 7.5+5.5 | 0.2-0.4 | 100-200 | 50 | 4200*3550*4200 |
| LHGC-2500 | 2500 | -1.2 | 10-40 | 80-150 | 1.1 | 96.3 | 11+11 | 0.2-0.4 | 200-400 | 105 | 5800*5000*5400 |
| LHGC-3000 | 3000 | -1.2 | 10-40 | 150-250 | 1.1 | 103.6 | 15+11 | 0.2-0.4 | 300-500 | 150 | 7600*6500*7200 |
