Product Details
Place of Origin | Shandong, China | Brand Name | HUATE | |
Model Number | RCYK armoring permanent magnet separator | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.unique armoring design2.low energy consumption
3.self-cleaning
4.easy maintain

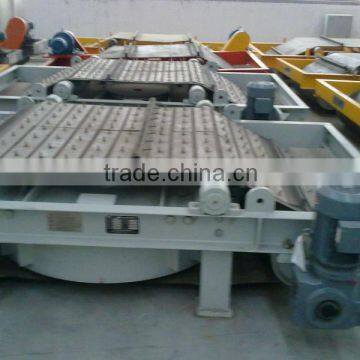

RCYK armoring permanent magnet separator
This iron separator is especially for metallurgy, iron reclaiming factory and casting workshop.
With unique armoring design, so as to escape the sharp impurity do damage to the belt.
Lower energy consumption and reliable performance.
Self-cleaning, easy maintenance, the wholly sealed bearing base make it can be used in the harsh environment without any malfunction.
We have different model, and special design for anti-explosion.
Model | Belt width mm | Suspension Height mm | Magnetic field intensity >mT | Absorb capacity | Driving power <kw | Belt speed m/s | Weight kg | Appearance size mm | |||||
A | B | C | D | E | F | ||||||||
RCYK-5 | 500 | 150 | ≥70 | 0.1—36 Kg | 1.5 | 4.5 | 780 | 1900 | 735 | 935 | 950 | 753 | 451 |
RCYK-6.5 | 650 | 200 | 2.2 | 1060 | 2050 | 780 | 1030 | 110 | 753 | 451 | |||
RCYK-8 | 800 | 250 | 2.2 | 1320 | 2350 | 796 | 1280 | 1300 | 1088 | 451 | |||
RCYK-10 | 1000 | 300 | 3.0 | 2080 | 2660 | 920 | 1550 | 1400 | 1335 | 451 | |||
RCYK-12 | 1200 | 350 | 4.0 | 2950 | 2900 | 970 | 1720 | 1550 | 1515 | 516 | |||
RCYK-14 | 1400 | 400 | 4.0 | 3821 | 3225 | 1050 | 1980 | 1800 | 1755 | 516 |
